Xintra: VirusViper

0️⃣ Background

An MSSP Virus Vipers has been compromised by APT10

This lead to the compromise of one of their clients SyntheticPartners

An RDP connection was made from an internal VPN range of Virus Vipers to SP-PC-01 using the account Andy Sanders (CFO)

Timeline

Datetime	Event
October 2023	Breach occured
2023-10-14	Suspicious RDP connection was made from VPN subnet `10.0.3.0` to `SP-PC-01` `192.168.0.5`

AI Infused Hunting


🕵🏼: Prompt

🤖: LLM Guidance

1️⃣ Triaging the scoping notes

Question 1 (Hint used)

Can you identify the timestamp of the suspicious RDP connection SyntheticPartners mentioned?

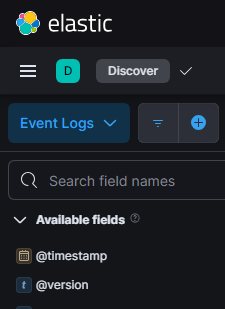

We open ELK and set the date filter to cover the entire date of October 14 2023

Change the log source to Event Logs

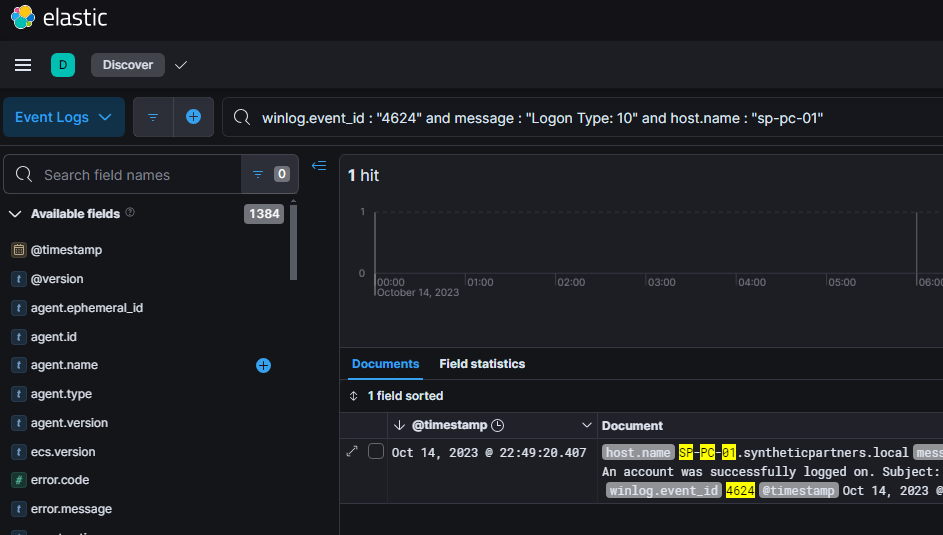

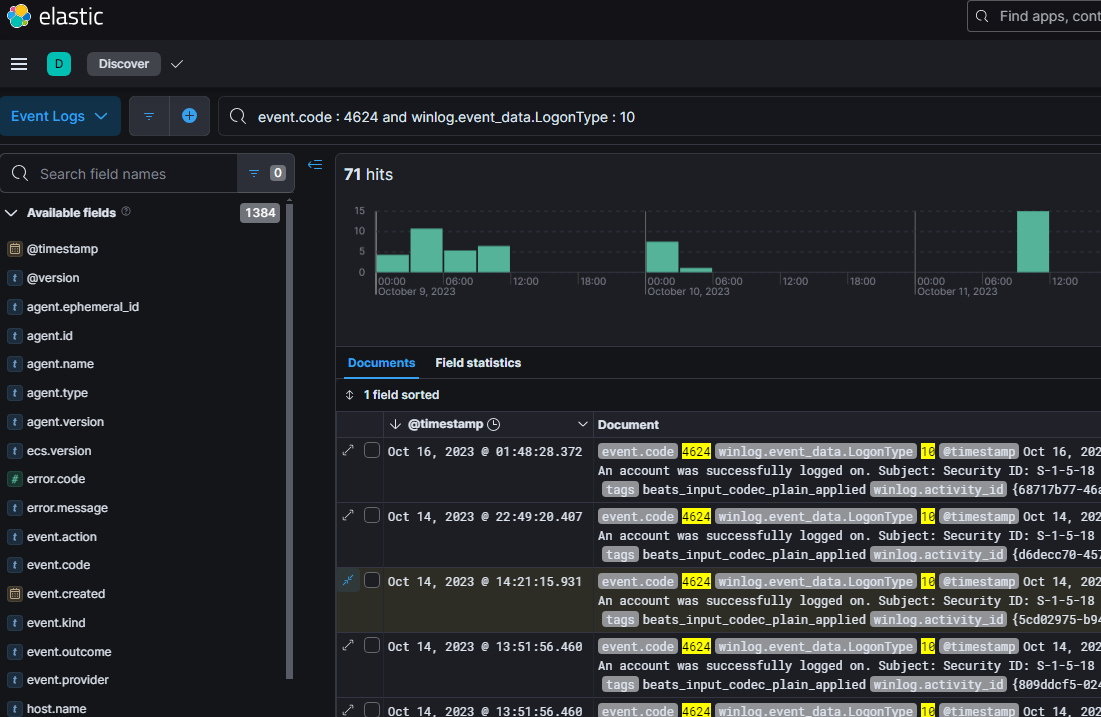

Query successful logons (event id 4624) of type RDP Logon Type 10 onto the machine sp-pc-01

Answer: 2023-10-14 22:49:20

Question 2

What was the source IP address of this specific RDP connection?

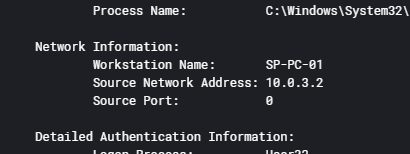

Look at the data in the entry, and it corresponds to the internal network IP of Virus Vipers 10.0.3.0/24

Answer: 10.0.3.2

2️⃣ Patient Zero

Question 1

What was the patient zero host in this incident?

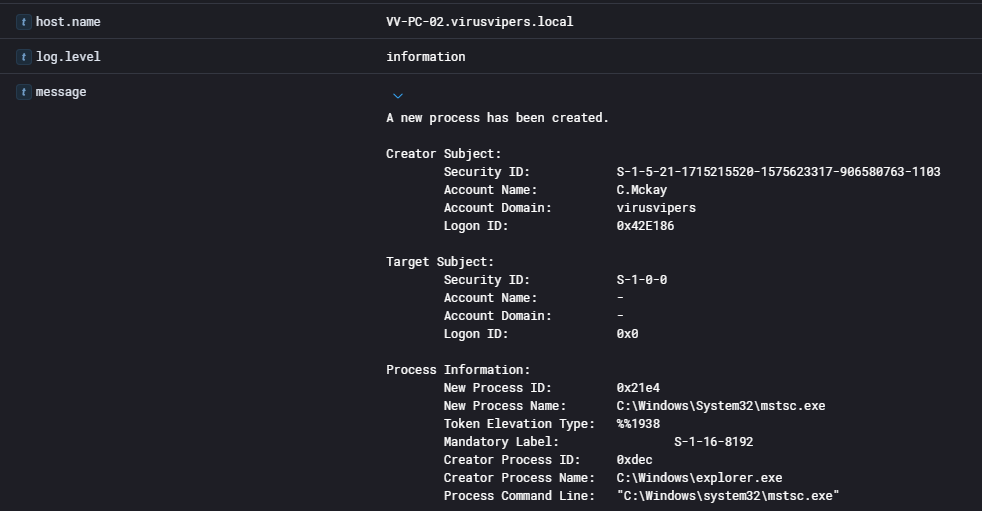

Find processes that spawned mstsc.exe which indicates an RDP connection starting by finding event code 4688 (Process Creation)

We investigate the first entry as it has the closest time to the time of incident above

The machine’s hostname is VV-PC-02 and the user account being virusvipers/c.mckay

We investigate other processes being spawned on VV-PC-02 by virusvipers/c.mckay


host.name : "VV-PC-02" and event.code : 4688 and winlog.event_data.SubjectUserName : "c.mckay"

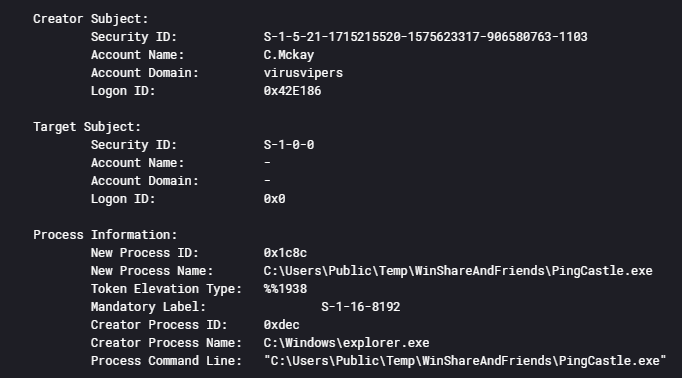

We see several process being spawned running malicious software like pingcastle.exe WinShareEnum.exe and CopyCatv2.vbsand they are only seen on VV-PC-02

Also a privilege escalation command to start a new session as sp-admin

We select the column winlog.event_data.CommandLine and spot a suspicious file SecureLauncher.bat and SecureDocs.ps1

We search for instances of this file across all hosts. We extend the timeframe to October 10th, and see the first sign of infection happening on October 13

Navigating to that period, we see that the host is VV-PC-01

Answer: VV-PC-01

Question 2

What was the patient zero account in this incident?

Select winlog.event_data.SubjectUserName and see that the user logged in was w.stanley

Answer: virusvipers\w.stanley

3️⃣Delivering the payload

Question 1

What IP was the patient zero account using when they were visiting the Exchange OWA portal?


🕵🏼: On a Windows machine, where are logs for Exchange being stored when a user visits the site?

🤖: …  log files are stored in C:\Program Files\Microsoft\Exchange Server\V15\Logging …

Microsoft HTTP logs are stored in

C\Program Files\Microsoft\Exchange Server\V15\Logging\

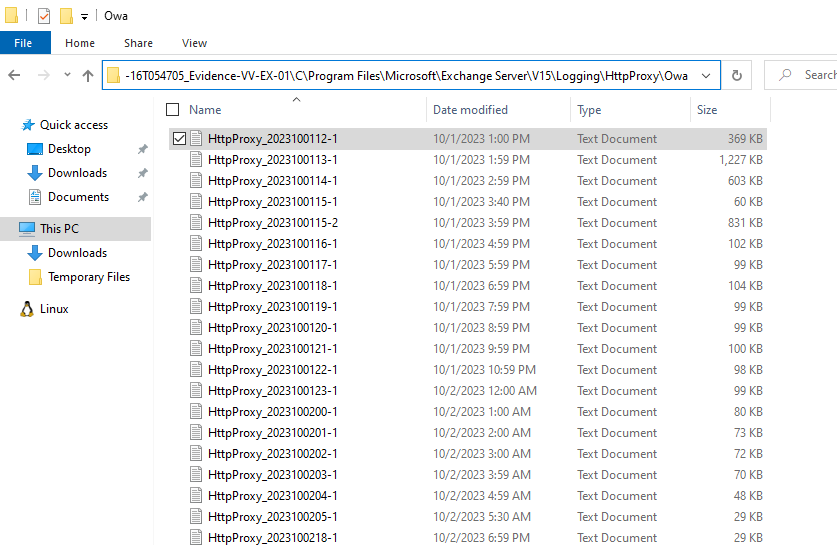

We open up the log files in VV-EX-01

Use bstrings to search for stanley in all the logs


bstrings.exe -d <path to OWA logs> --ls stanley -o results.txt

Looking at a sample output of 1 row:


DateTime,RequestId,MajorVersion,MinorVersion,BuildVersion,RevisionVersion,ClientRequestId,Protocol,UrlHost,UrlStem,ProtocolAction,AuthenticationType,IsAuthenticated,AuthenticatedUser,Organization,AnchorMailbox,UserAgent,ClientIpAddress,ServerHostName,HttpStatus,BackEndStatus,ErrorCode,Method,ProxyAction,TargetServer,TargetServerVersion,RoutingType,RoutingHint,BackEndCookie,ServerLocatorHost,ServerLocatorLatency,RequestBytes,ResponseBytes,TargetOutstandingRequests,AuthModulePerfContext,HttpPipelineLatency,CalculateTargetBackEndLatency,GlsLatencyBreakup,TotalGlsLatency,AccountForestLatencyBreakup,TotalAccountForestLatency,ResourceForestLatencyBreakup,TotalResourceForestLatency,ADLatency,SharedCacheLatencyBreakup,TotalSharedCacheLatency,ActivityContextLifeTime,ModuleToHandlerSwitchingLatency,ClientReqStreamLatency,BackendReqInitLatency,Backe


2023-10-09T05:59:13.534Z,24103fd0-d699-413f-8d1a-90b6a8b9b72b,15,2,1258,12,,Owa,vv-ex-01.virusvipers.local,/owa/prem/15.2.1258.12/resources/images/0/bg_gradient_login.png,,FBA,true,virusvipers\w.stanley,,Sid~S-1-5-21-1715215520-1575623317-906580763-1104,Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML  like Gecko) Chrome/117.0.0.0 Safari/537.36 Edg/117.0.2045.60,10.1.0.6,VV-EX-01,200,200,,GET,Proxy,vv-ex-01.virusvipers.local,15.02.1258.000,IntraForest,WindowsIdentity,Database~6ca337cd-281d-4dea-8f19-37e440d92c41~~2023-11-

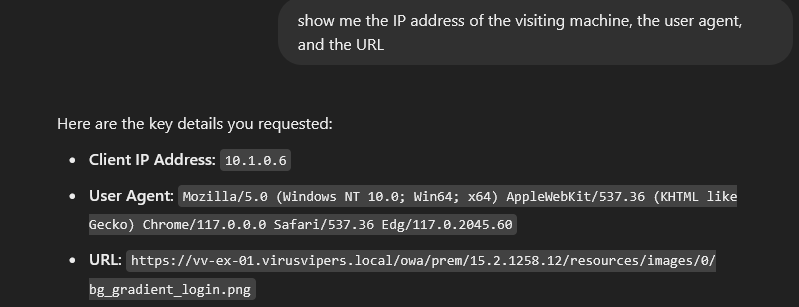

With the help of LLMs, we dump the two text blocks above and prompt it

Answer: 10.1.0.6

Question 2

What user agent was the patient zero account using when they were visiting the Exchange OWA?

Also from the data above

Answer:

Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML like Gecko) Chrome/117.0.0.0 Safari/537.36 Edg/117.0.2045.60

Question 3

What is the email address of the threat actor?

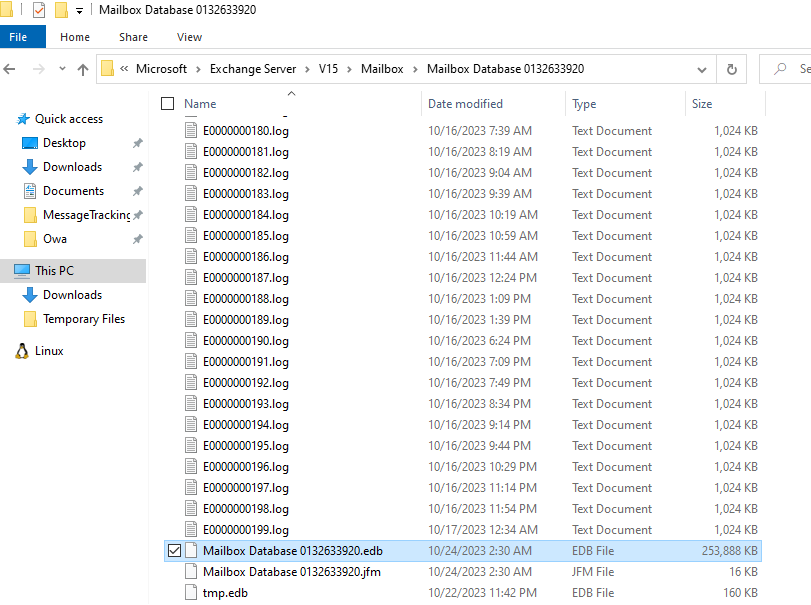

Logs of emails are in C\Program Files\Microsoft\Exchange Server\V15\Mailbox\Mailbox Database 0132633920\...edb

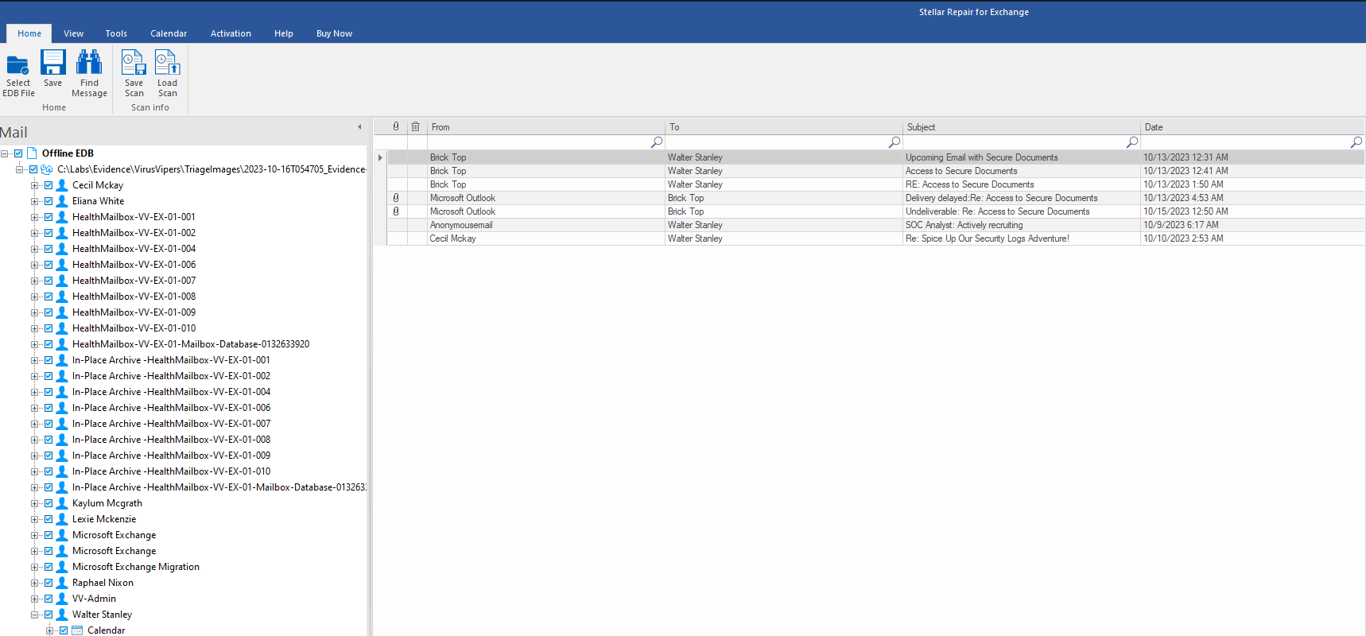

Use the tool Stellar Repair for Exchange and load the edb file, and open stanley's inbox

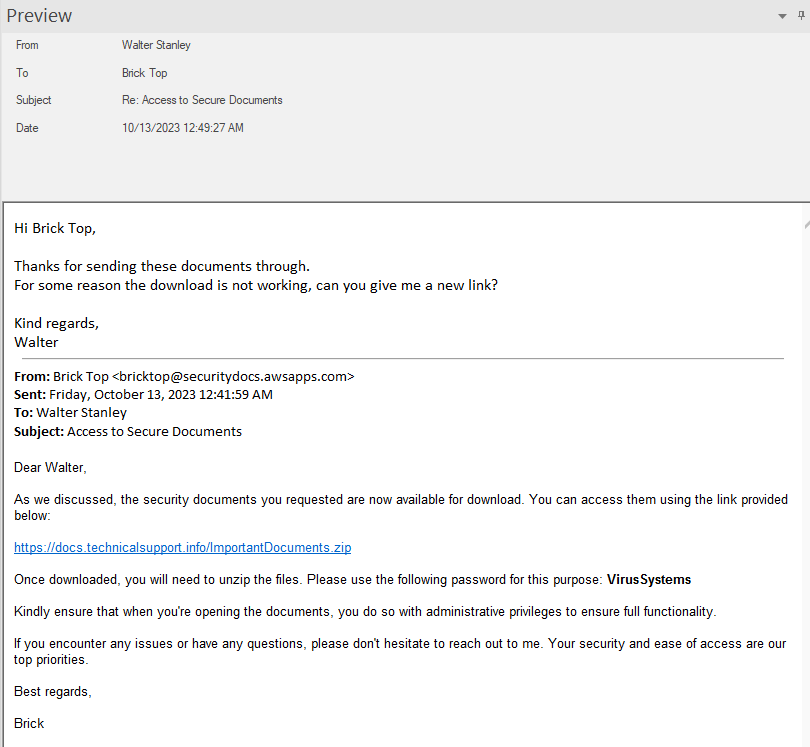

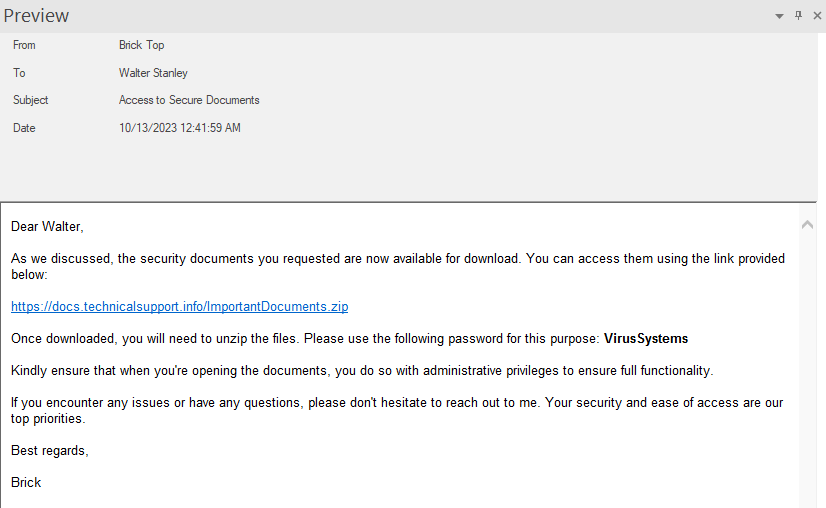

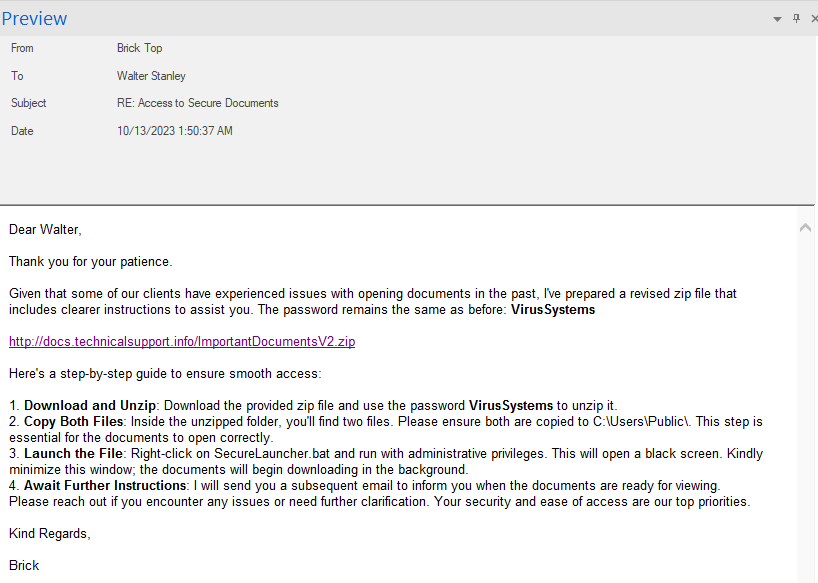

We see an 2 emails sent by Brick Top tostanley containing link to download ZIP files, both with the password VirusSystems


ImportantDocuments.zip
ImportantDocumentsV2.zip

Answer: bricktop@securitydocs.awsapps.com

Question 4

What threat name did Windows Defender classify the item that the patient zero account first downloaded?

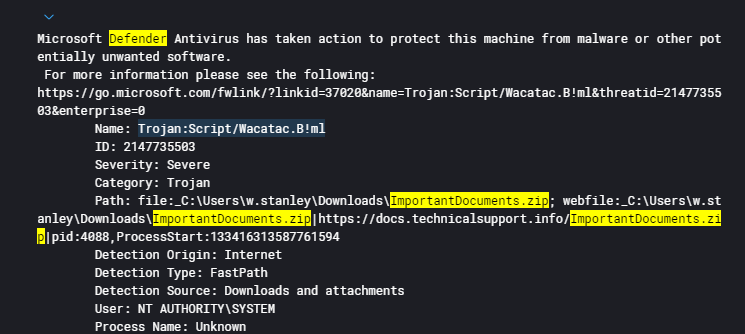

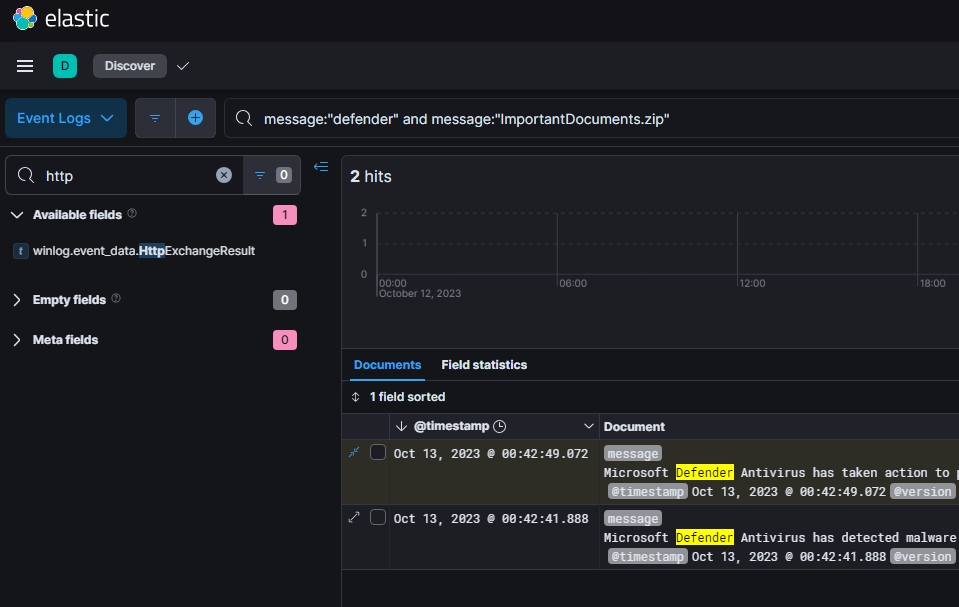

Bounce back to ELK and search Event logs for “Defender” and “ImportantDocuments.zip”

Answer: Trojan:Script/Wacatac.B!ml

Question 5

What date was the domain registered which hosted the initial payloads?

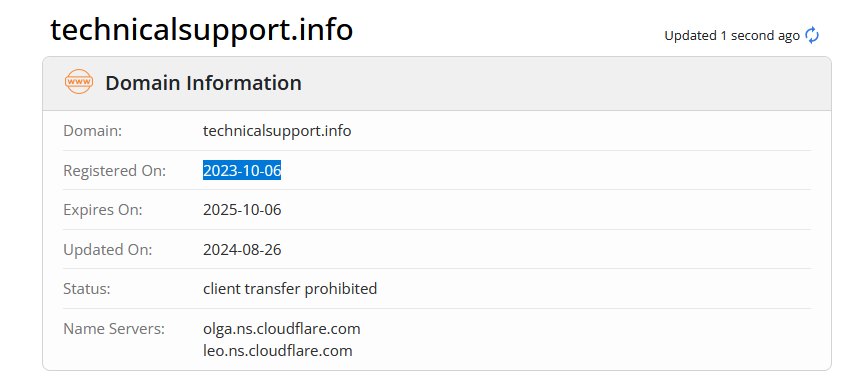

Look up using whois

Answer: 2023-10-06

Question 6

What was the password of the second zip file?

The answer is in the email above

Answer: VirusSystems

4️⃣ Infection Time

Question 1

What is the name of the batch script that the victim ran to initiate the infection?

If we read the email, it tells the user to copy both files into C:\Users\Public and to launch SecureLauncher.bat

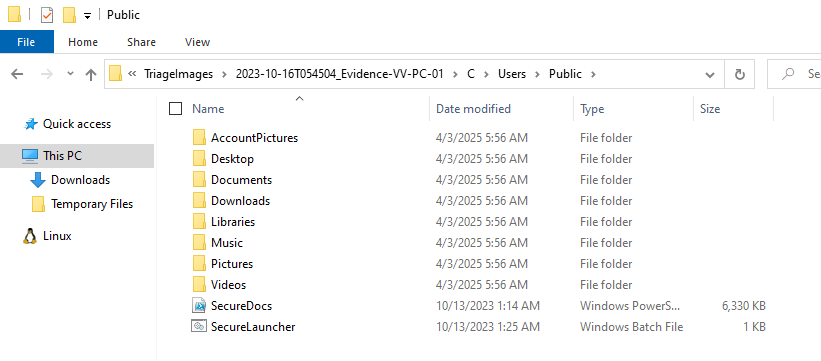

We can find the files in

C:\Labs\Evidence\VirusVipers\TriageImages\2023-10-16T054504_Evidence-VV-PC-01\C\Users\Public

Answer: SecureLauncher.bat

Question 2

What is the "key" that is provided to the malicious PowerShell script?

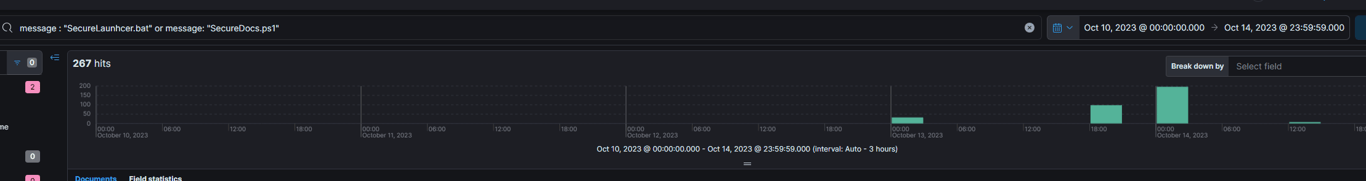

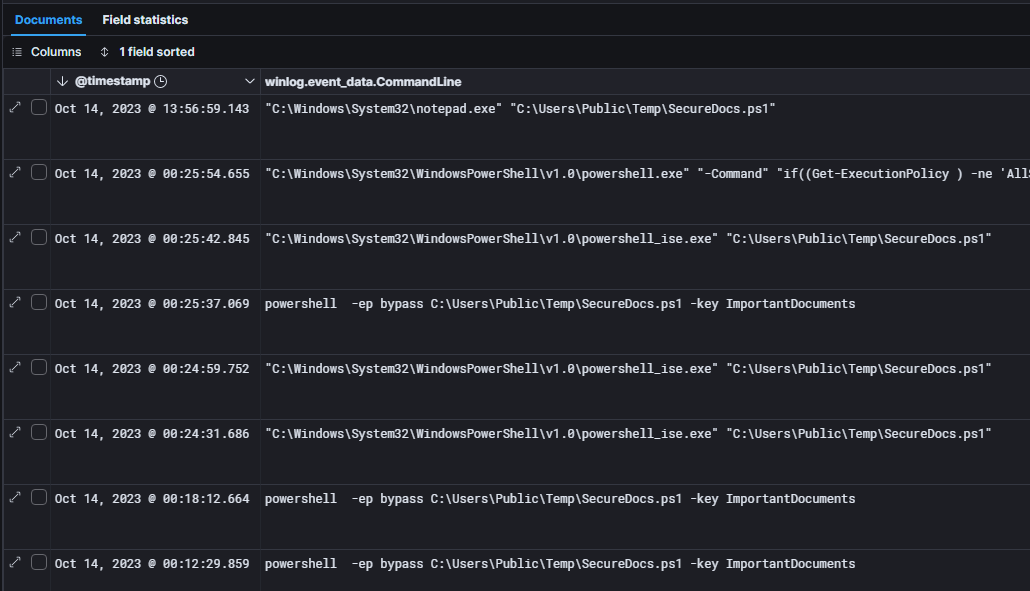

We search in Elastic for process creation events with the string SecureDocs.ps1

Select the CommandLine field and we see the key being passed in

Answer: ImportantDocuments

Question 3

What was the malicious domain the PowerShell process attempted to connect to?

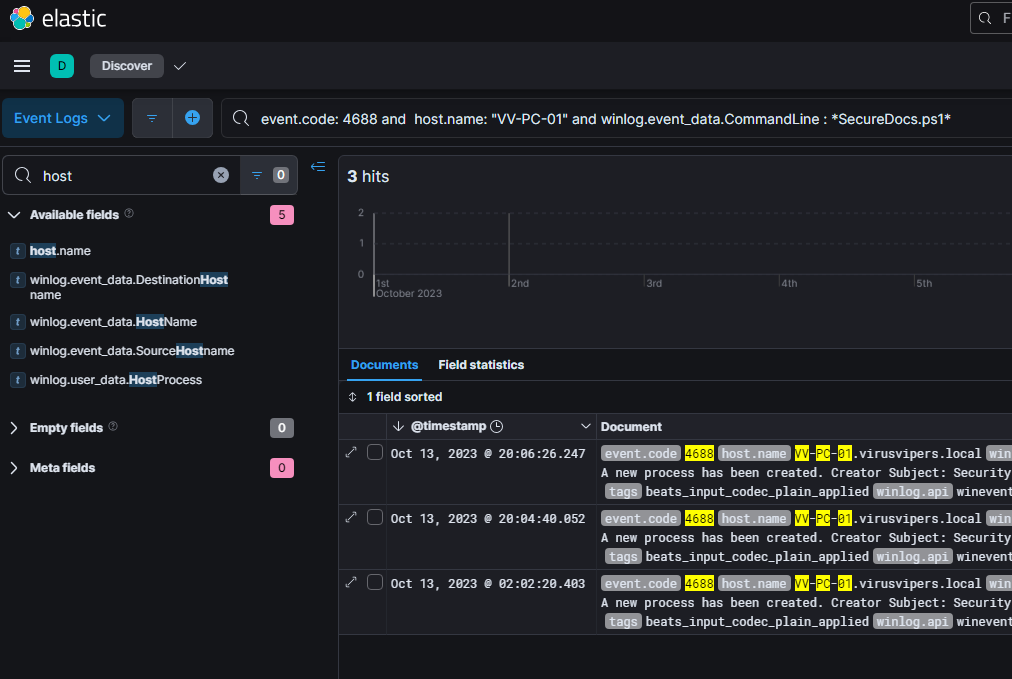

Search in Elastic for Process Creation events of SecureDocs.ps1 on host VV-PC-01

Look for the event that was executed by w.stanley and take note of the New Process Id


0x2274 == 8820

This means that upon executing that powershell command and passing in the key, it created a new child process with PID 8820

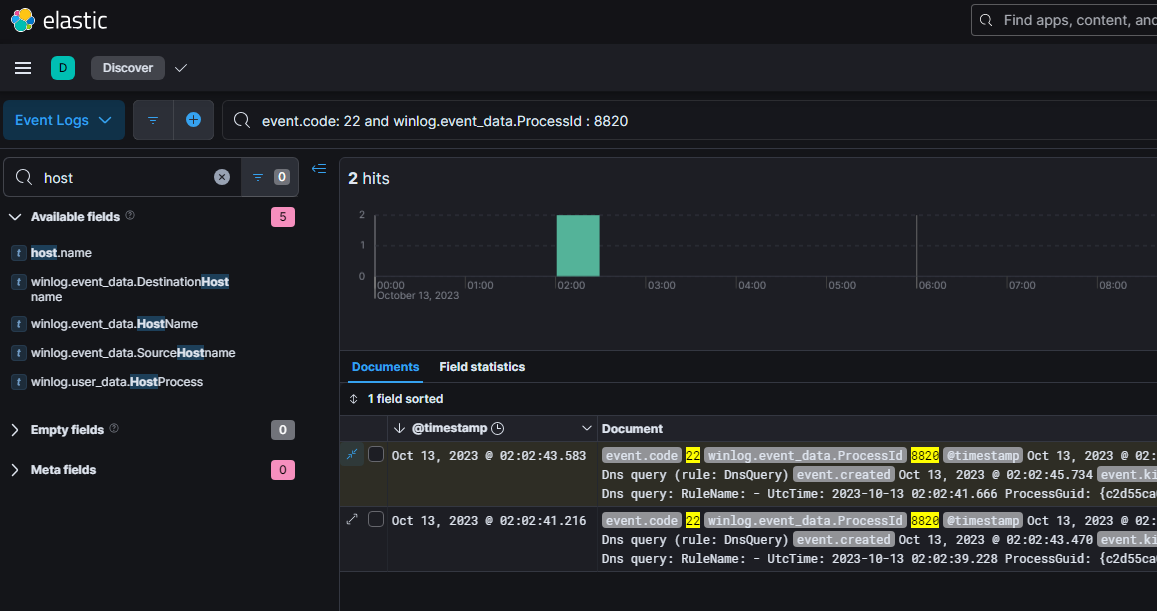

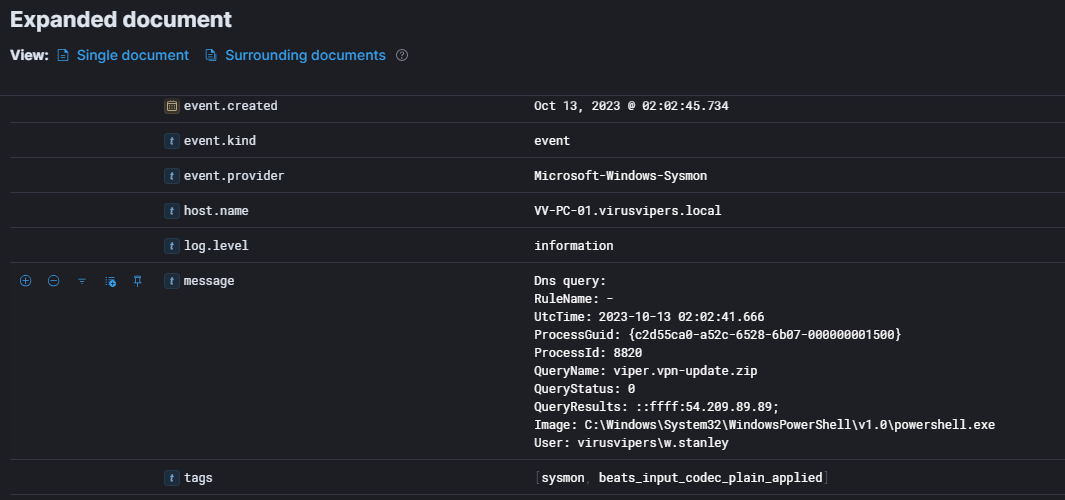

We now search for DNS queries surrounding PID 8820 and find the DNS name it was querying

Answer: viper.vpn-update.zip

Question 4

What is the PID of the process that first made connect to the malicious C2 on the patient zero host?

Looking at the DNS query above, the PID is 8820

Answer: 8820

Question 5

What was the original file name of the encrypted payload embedded in the .ps1 script?

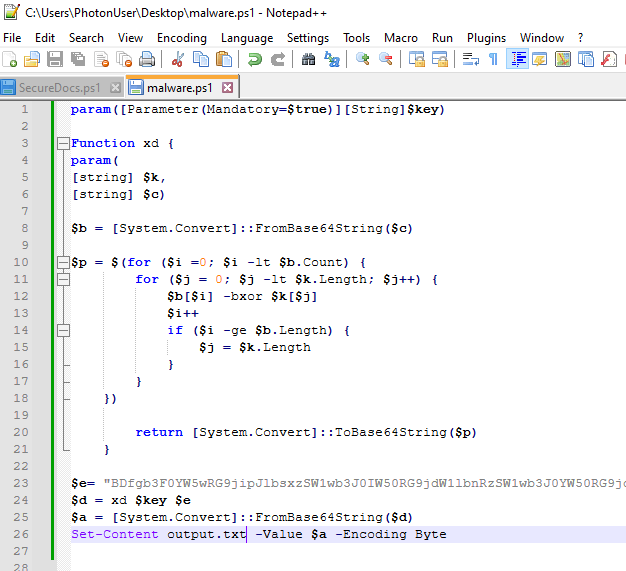

We make a copy of SecureDocs.ps1 and modify it to print the contents of the encoded payload

The first few bytes in Decimal are


77 90 144

Which when converted to ASCII


MZ ...

This likely means it’s a portable executable.

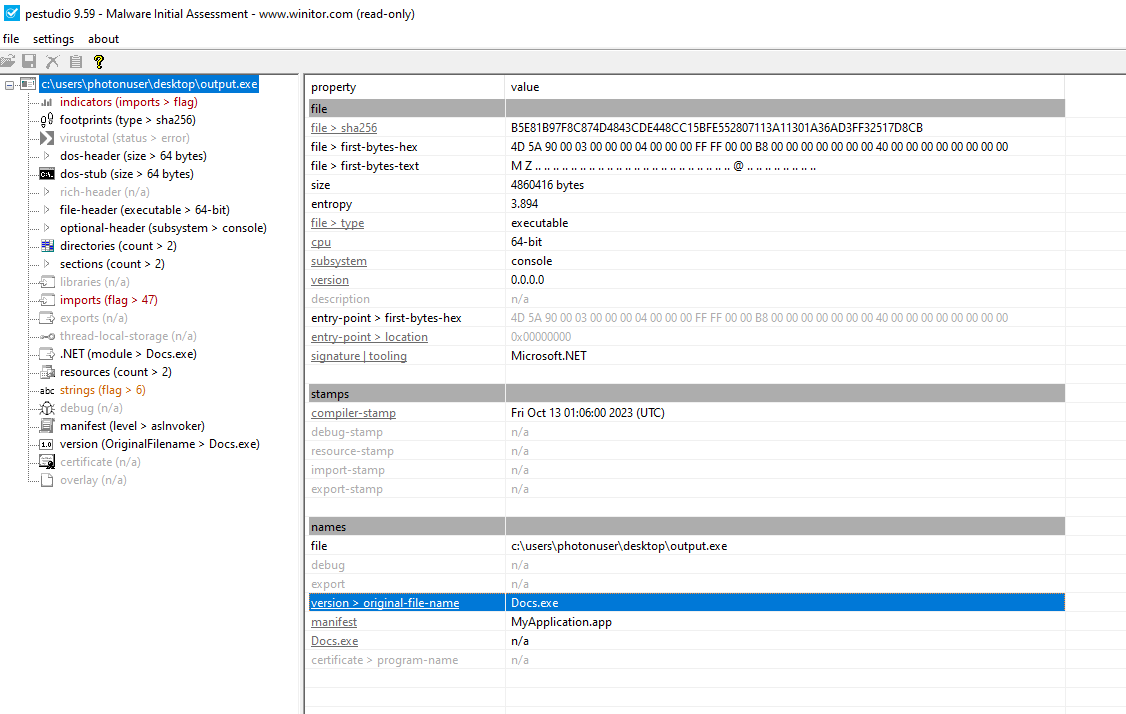

We rename output.txt to output.exe, and open it with PEStudio

Answer: Docs.exe

Question 6

Identify the key (in UTF8) in the .NET binary that is used to decrypt the payload from the previous question

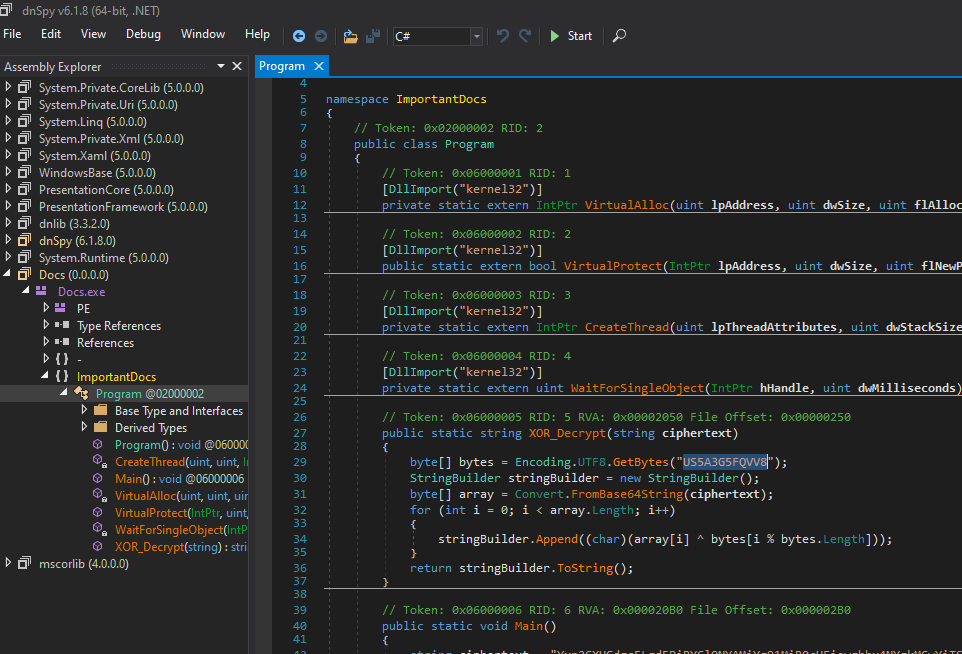

Looking at the result of PE studio, it’s a .NET binary, meaning we can use DNSpy to decompile the binary and analyze the source code

We see a function called XOR_Decrypt with the key as US5A3G5FQVV8

Answer: US5A3G5FQVV8

Question 7

What is the full path of the process the initial payload spawned and then injected itself into?

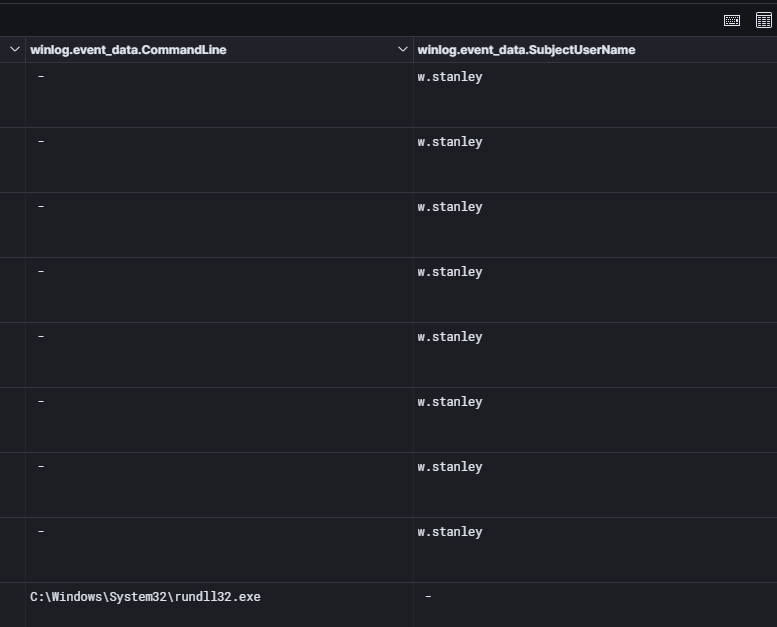

In ELK, search for processes spawned by SecureDocs.ps1.

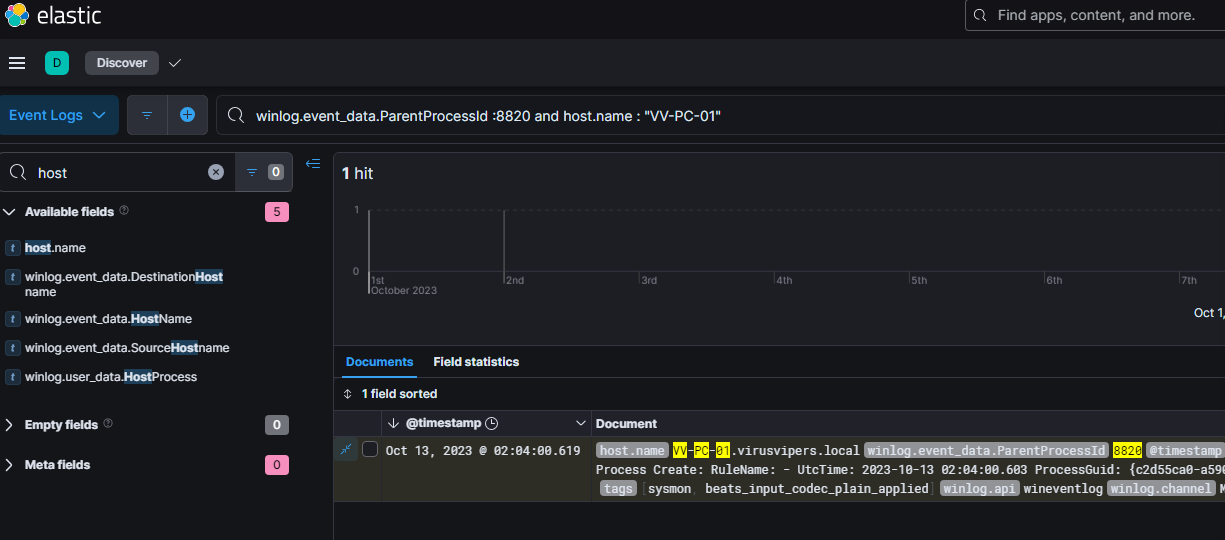

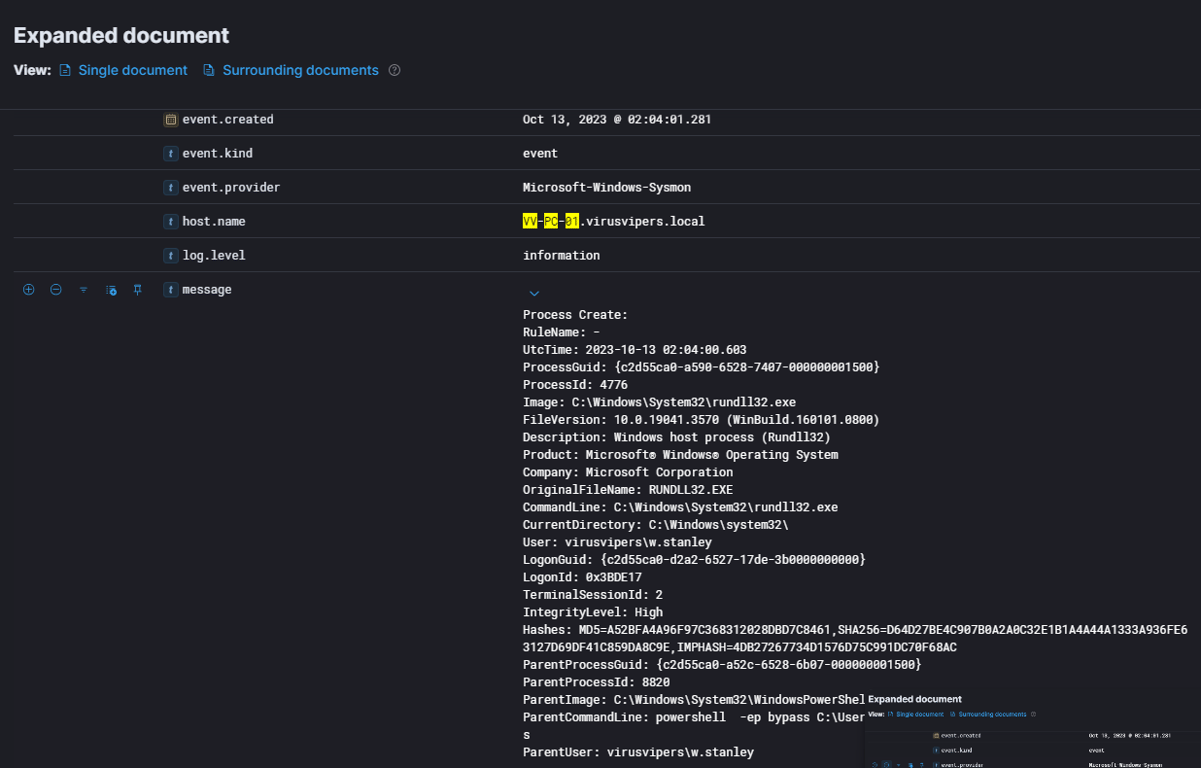

Using the PID we found earlier of 8820, find it’s child processes

Answer: C:\Windows\System32\rundll32.exe

💡

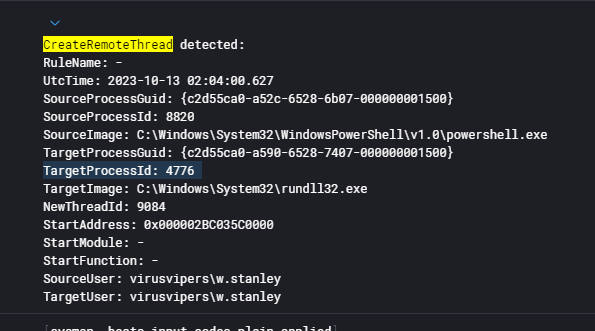

Alternative; Since CreateThread was called in the .NET binary, we can search for CreateRemoteThread calls by powershell.exe

Question 8

What was the PID for this new process?

Information from above

Answer: 4776

5️⃣ Attacking VirusVipers

Question 1

What was the first local admin account the threat actor gained access to?


🕵🏼: Using RegRipper, how do I get all members in the Administrator group?

🤖: …  you need to parse the SAM hive …

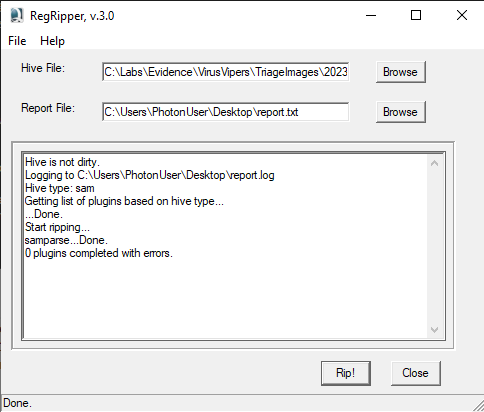

We run RegRipper on the C:\Labs\Evidence\VirusVipers\TriageImages\2023-10-16T054504_Evidence-VV-PC-01\C\Windows\System32\config\SAM

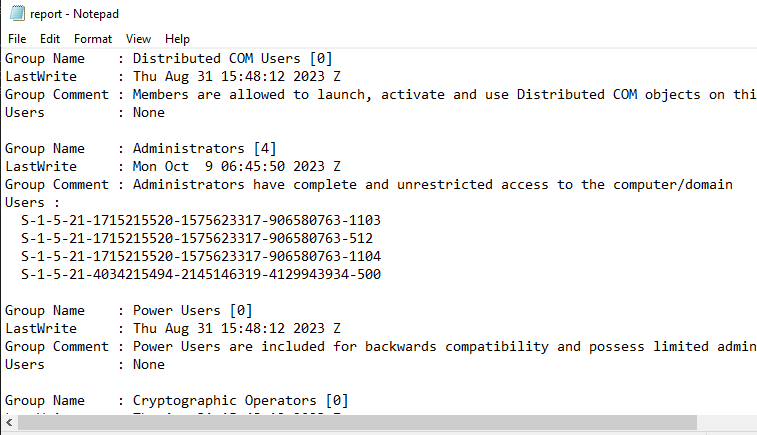

Analyzing the output of report.txt, we find members in Administrator group

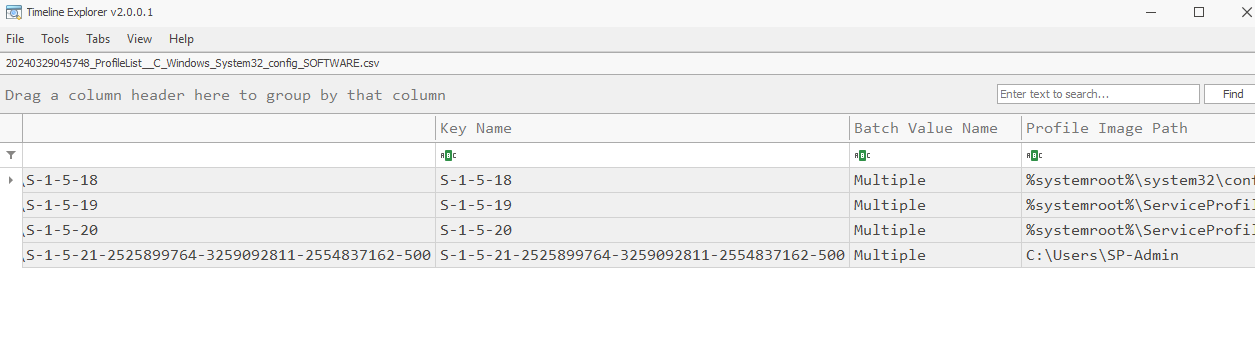

Reference the Profile information in C:\Labs\Evidence\VirusVipers\ProcessedEvidence\VV-PC-01\Registry\20240329030758 to get the SID→Username mapping

And we see that w.stanley is the an Administrator

Answer: virusvipers\w.stanley

Question 2

What file did the threat actor open and view to understand the network?

Since we know that w.stanley was compromised, we search for recently accessed files around the same period

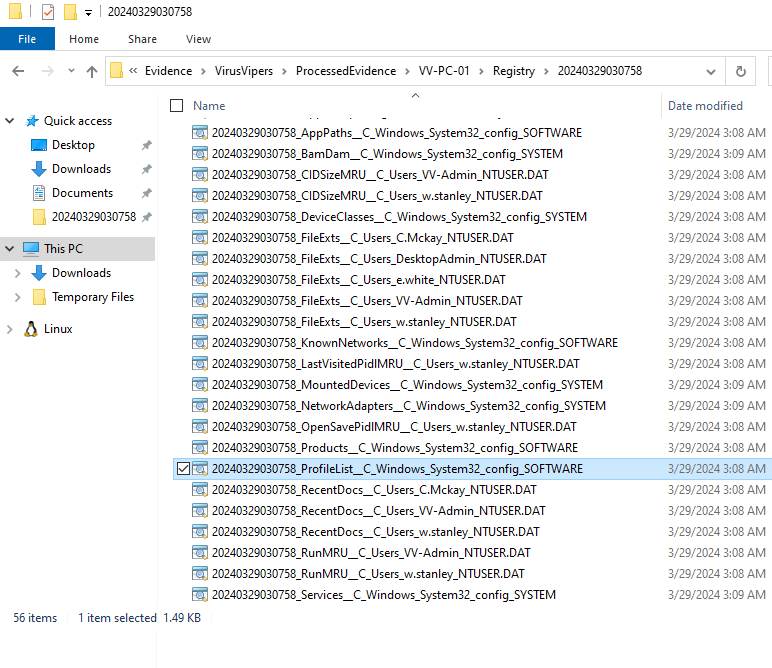

C:\Labs\Evidence\VirusVipers\ProcessedEvidence\VV-PC-01\Registry\20240329030758 and open the RecentDocs registry file for w.stanley

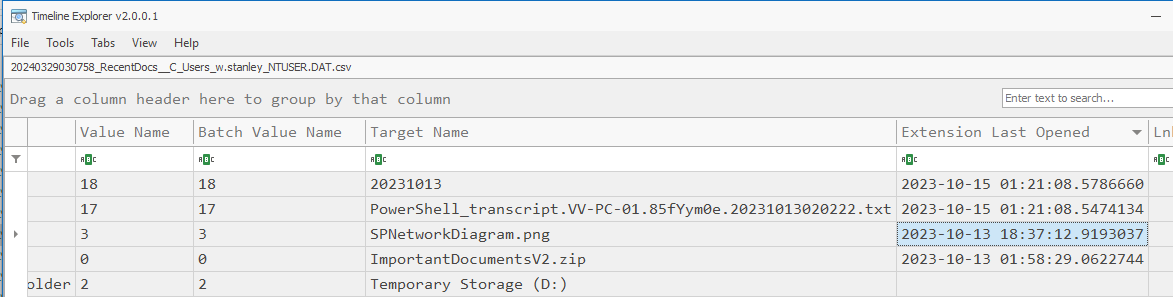

Sort by Extension Last Opened and we see two files being opened on 2023-10-13


ImportantDocumentsV2.zip

Answer: SPNetworkDiagram.png

Question 3

The threat actor dumped several registry hives. What name did they exported the SAM hive as?

Registry dumping is done via reg.exe

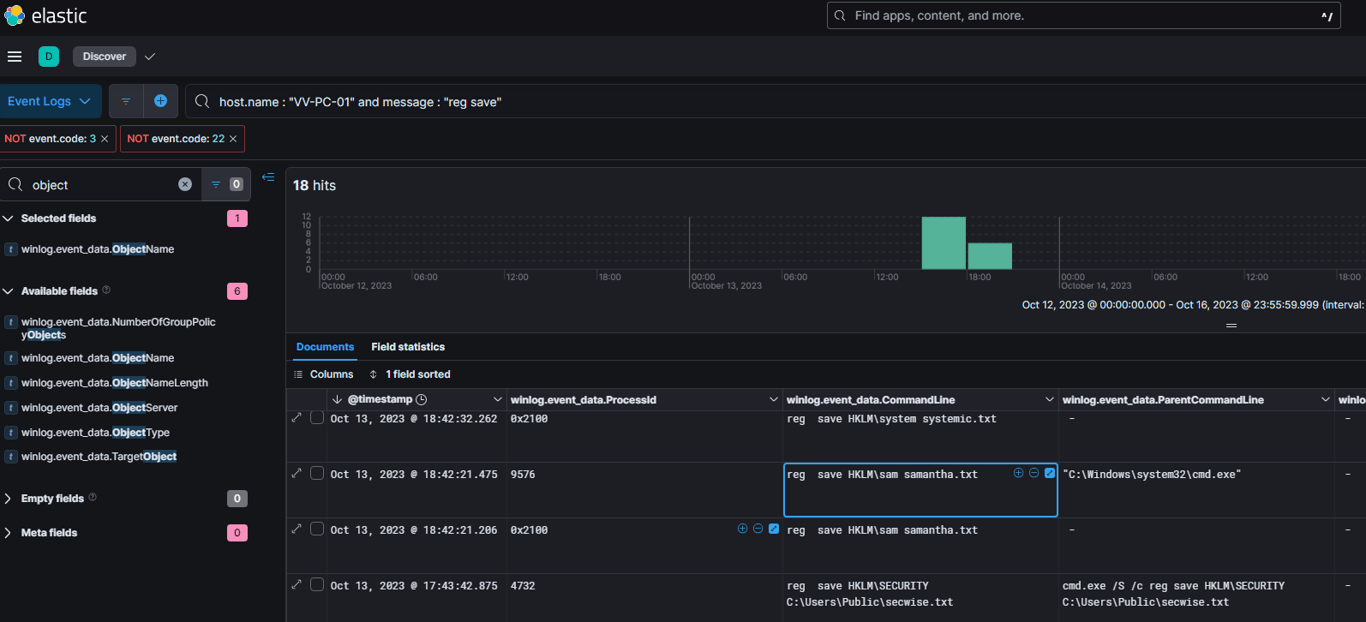

We search for the command reg save to find all instances of registry dumping

Answer: samantha.txt

We start investigating what PID 4776 does. Filtering away network connections and DNS queries, we don’t find anything interesting.

Question 4

What is the full path of the tool used to create vv.dmp?

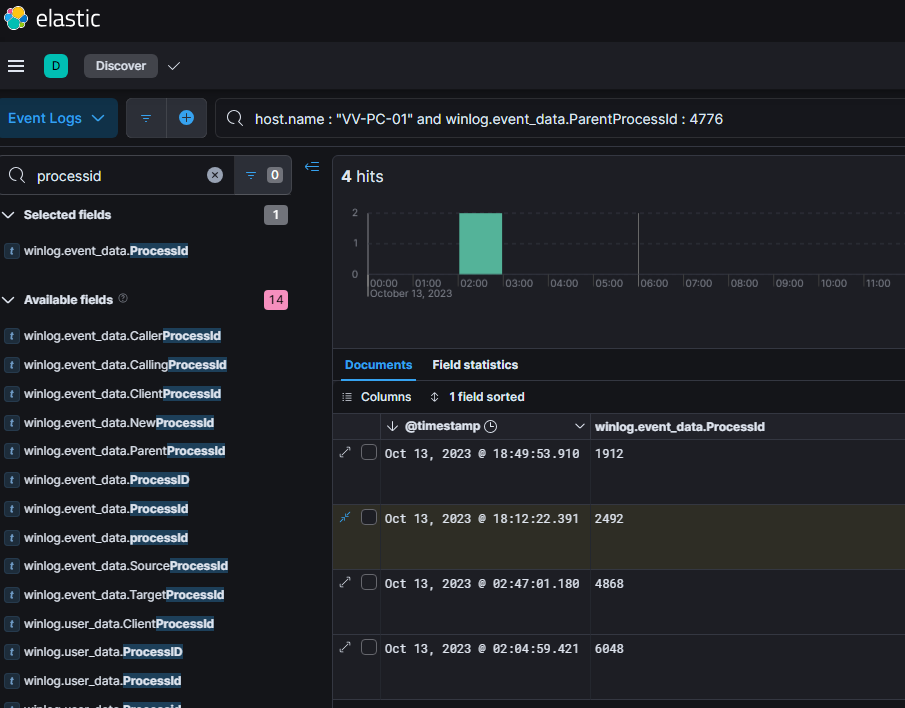

Find child processes spawned by PID 4776, and we see 4 processes being spawned


8820 -> 4776 -> 1912 -> 8928 -> [5312, 3344, 5272]
8820 -> 4776 -> 2492
8820 -> 4776 -> 4868 -> 4712 -> [8420, 10312, 6348, 7684, 6620]
8820 -> 4776 -> 6048 -> 168

We investigate activities done by each of these PIDs

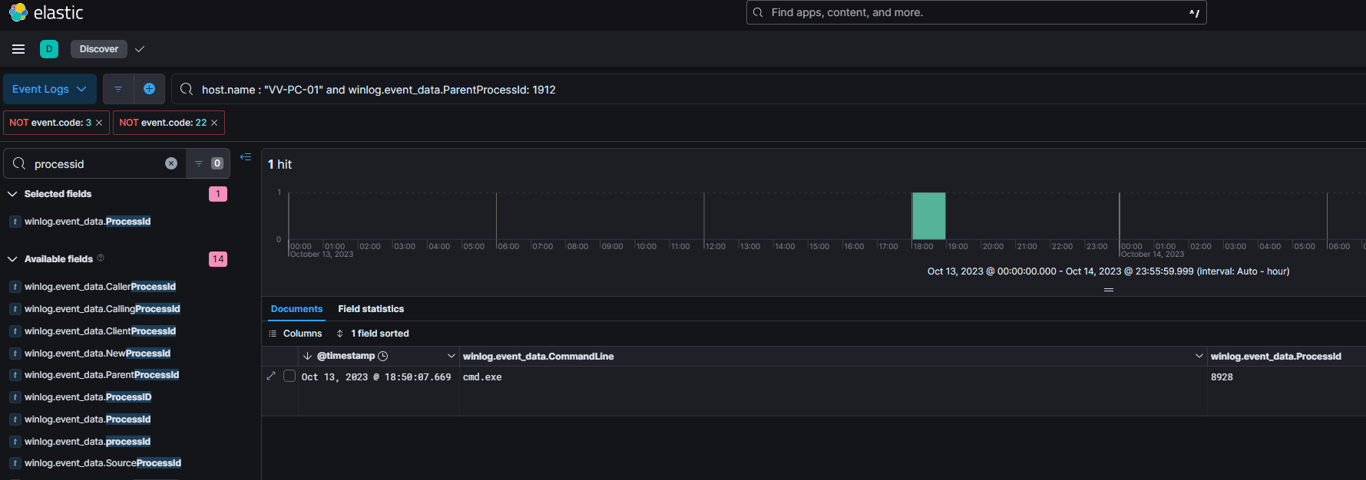

PID 1912 spawns cmd.exe with PID 8928

PID 8928 executes cmd.exe again, and also executes disksnapshot.exe and wuauclt.exe

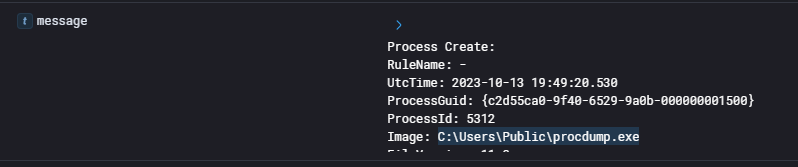

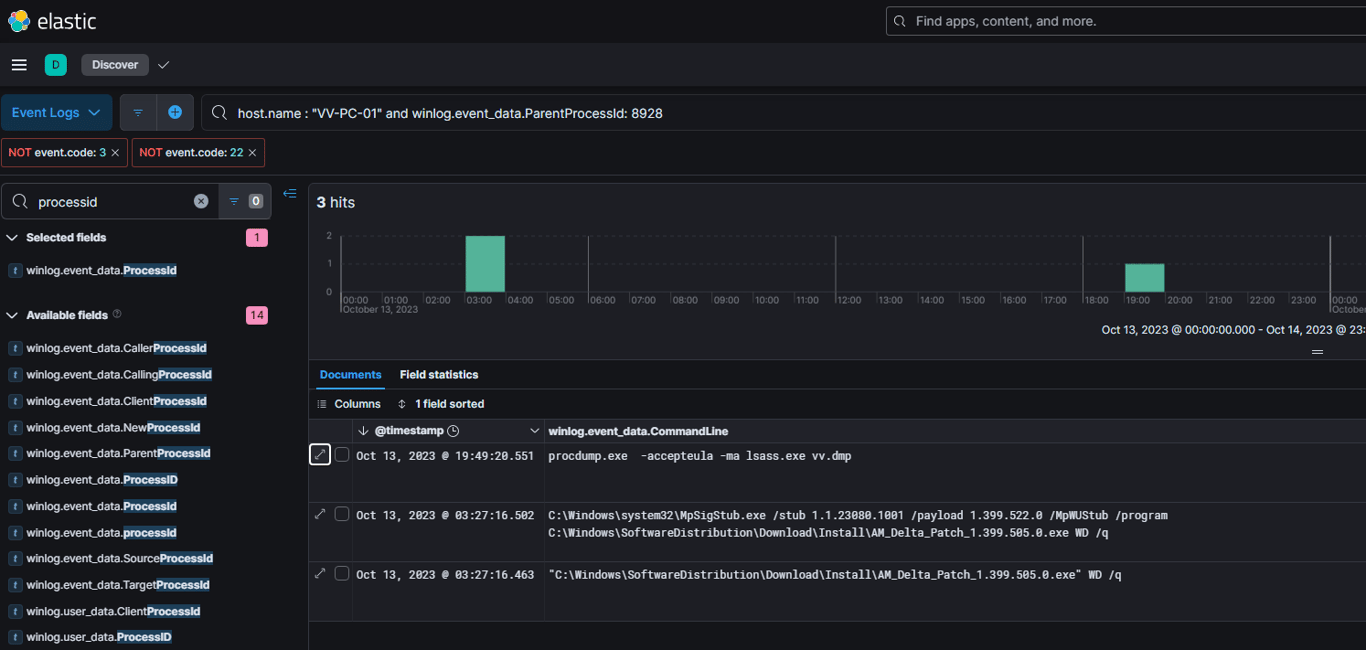

We trace the child processes of PID 8928 and see that it executes procdump.exe to dump lsass.exe

Answer: C:\Users\Public\procdump.exe

Question 5

What was the UNC path the threat actor staged "SecureLauncher.bat" on after they had initially gained access to the VirusVipers network?

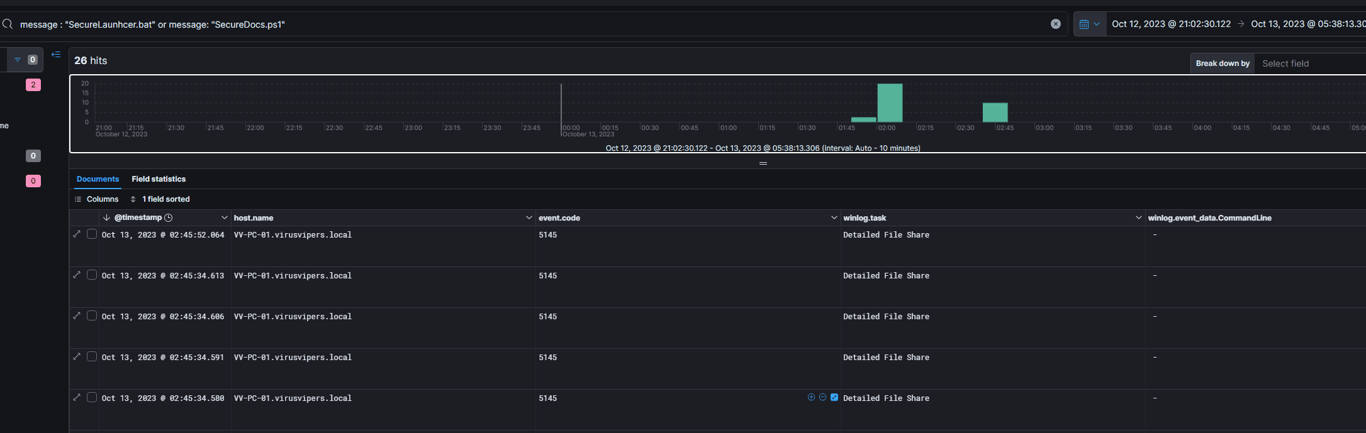

Find all instances of execution of SecureLaunhcer.bat

We see execution happening on R:\\ and \\VV-DC-01

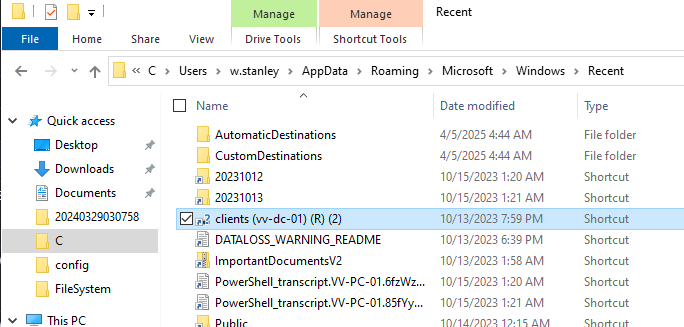

We can also see the mapping of R drive to vv-dc-01 in w.stanley's recent files

Answer: \\VV-DC-01\clients\Temp\SecureLauncher.bat

Question 6

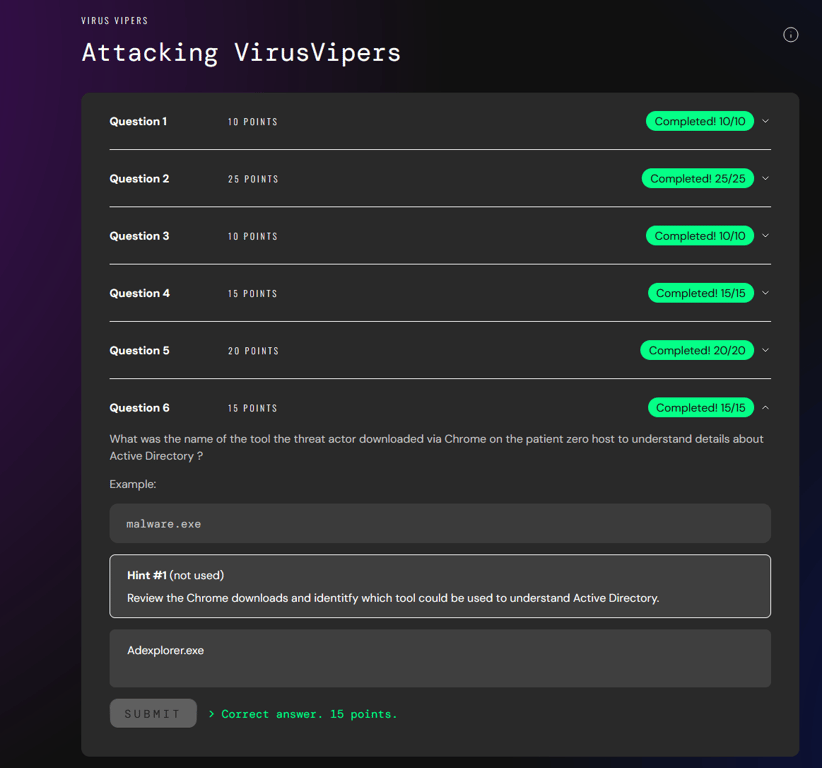

What was the name of the tool the threat actor downloaded via Chrome on the patient zero host to understand details about Active Directory ?


🕵🏼: What Sysmon event codes are generated when a file is downloaded via a browser?

🤖: … 1 (Process Creation), 11 (File Creation), 15 (File stream creation), 3 (Network connection) and 22 (DNS query) …

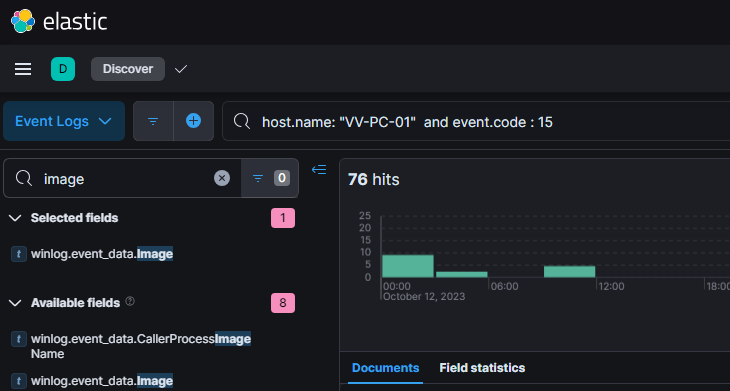

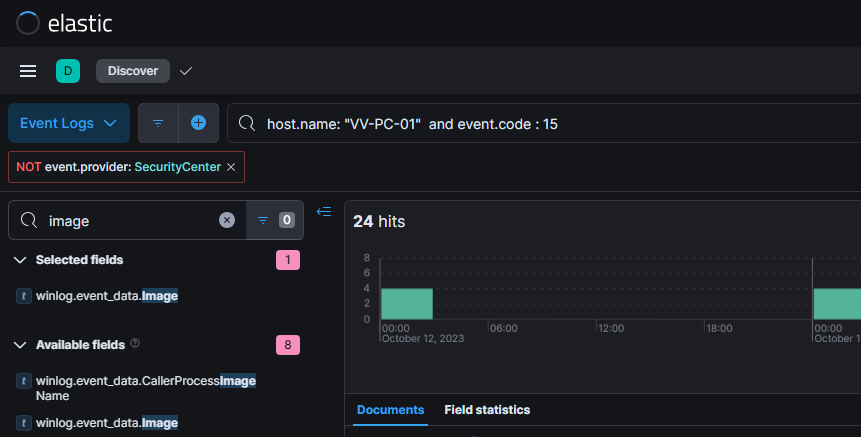

Search for File Stream Created events (event code 15)

There is an overlap between events from Microsoft-Windows-Sysmon and SecurityCenter.

We want events from Microsoft-Windows-Sysmon, and filter away events from SecurityCenter

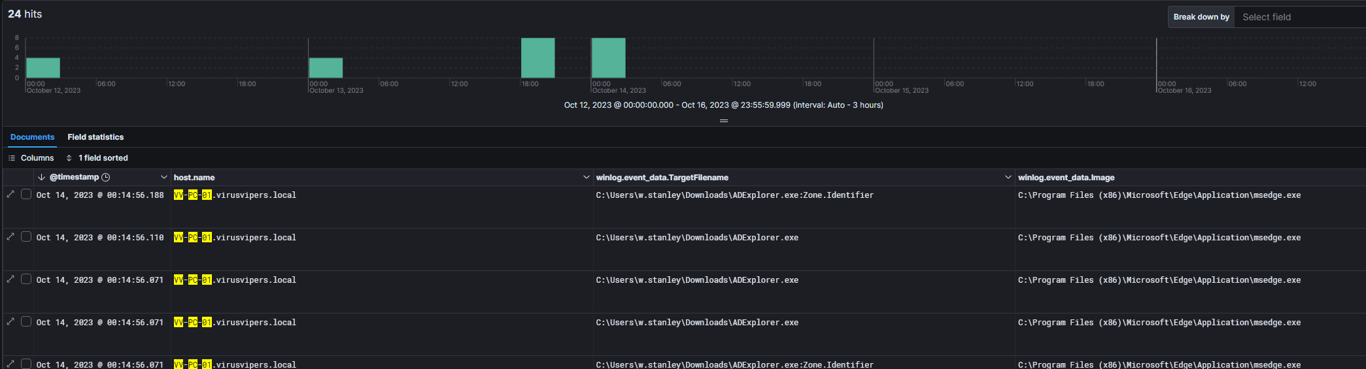

View all downloaded files, and we see ADExplorer.exe being downloaded by msedge.exe

Answer: ADExplorer.exe

6️⃣ Attacking SyntheticPartners

Question 1

What was the path the threat actor set as an exclusion to AV on the patient zero host?


🕵🏼: What logs will be generated when I exclude a file from Microsoft Defender?

🤖: … Event ID 5007 - "Configuration has changed" ... Registry key "HKLM\SOFTWARE\Microsoft\Windows Defender\Exclusions\Paths" would have been modified …

When a path is whitelisted from the AV, the registry key HKLM\SOFTWARE\Microsoft\Windows Defender\Exclusions\Paths will be modified

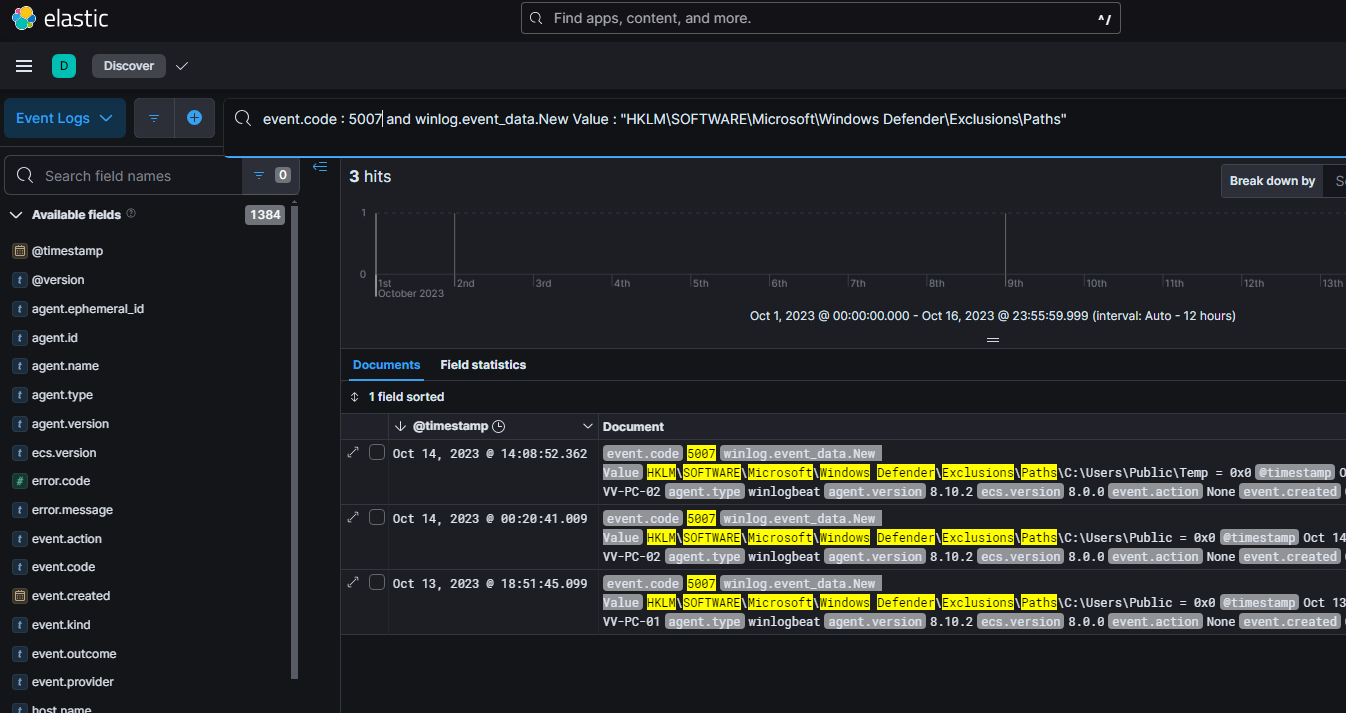

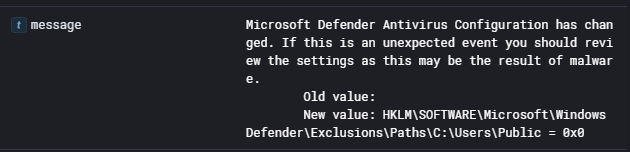

Search event code 5007 (Microsoft Defender Antivirus Configuration change) and the string HKLM\SOFTWARE\Microsoft\Windows Defender\Exclusions\Paths on ELK

We see the folder path C:\Users\Public added to the exclusion path

Answer: C:\Users\Public

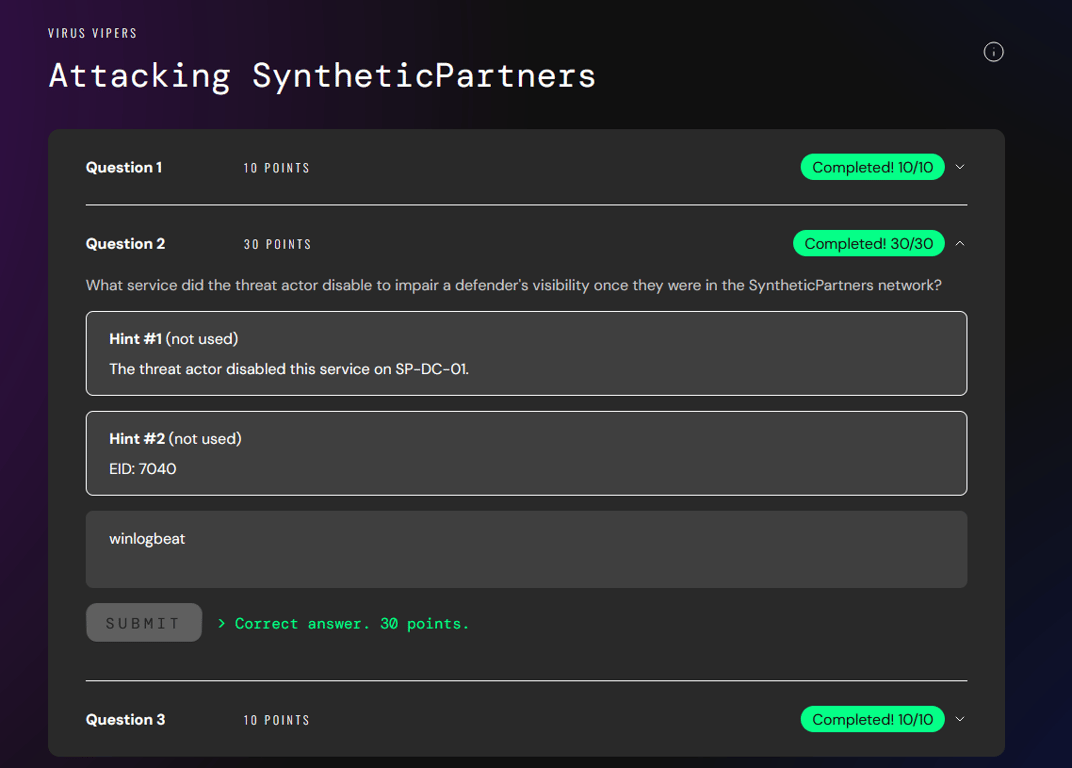

Question 2

What service did the threat actor disable to impair a defender's visibility once they were in the SyntheticPartners network?

Search for Event ID 7040 on SyntheticPartner machines SP-DC-01 and SP-PC-01.

Event ID 7040 logs changes events to a service

We see that the service winlogbeat was disabled on SP-PC-01. winlogbeat is a service that collects telemetry from a windows machine to give visibility

Answer: winlogbeat

Question 3

What is the password for the sp-admin account?

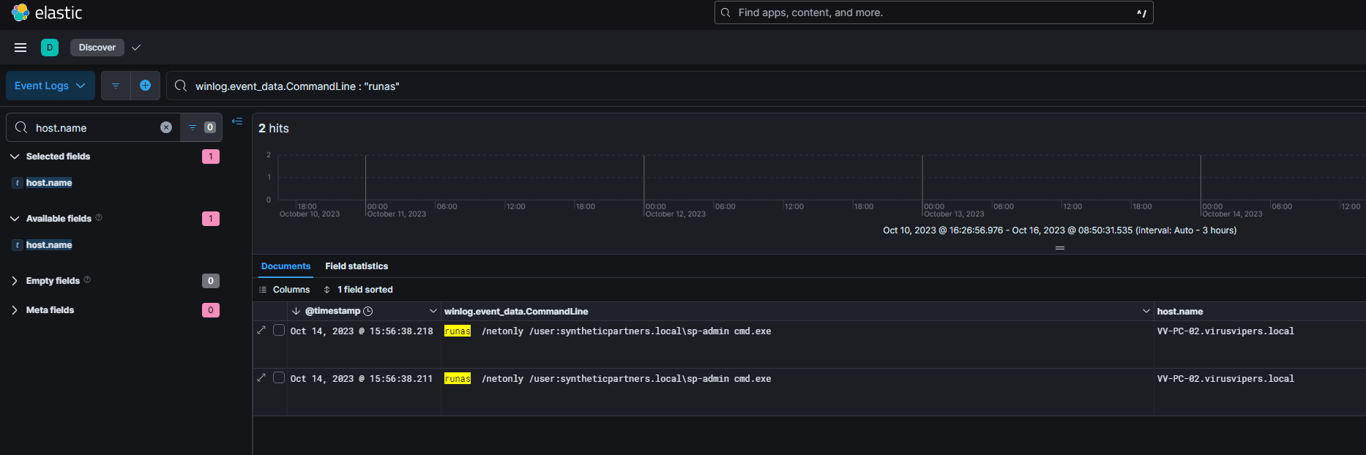

Search for the command runas which is used to impersonate other accounts

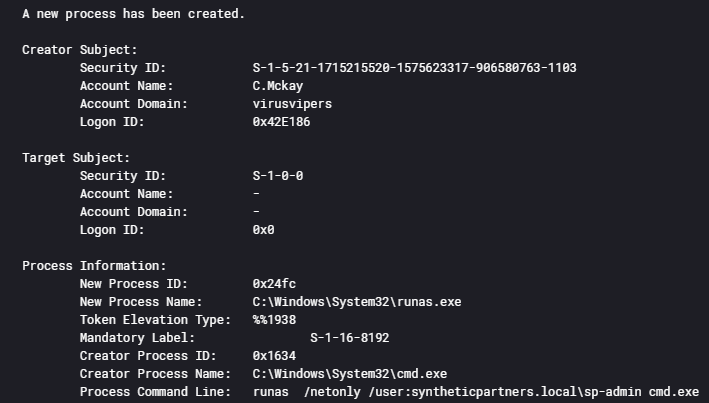

We see runas being called to impersonate sp-admin on October 14 15:56:38 on VV-PC-02 by virusvipers\c.mckay

Windows would not log passwords captured when executing runas , so the password would not be found in PowerShell transcripts or Console History logs

💡

Since have access to SAM and SYSTEM, we can dump the hash and crack it, but we find the password in cleartext instead

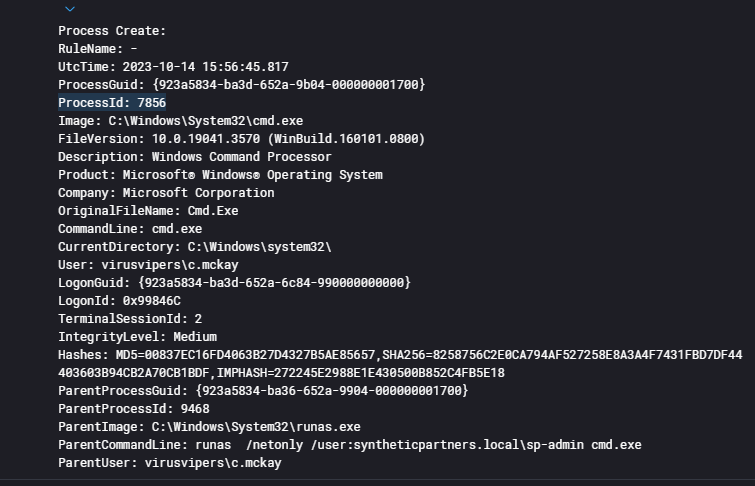

Tracing the activity of this new session spawned by runas with PID 9468, it spawns a new process with PID 7856

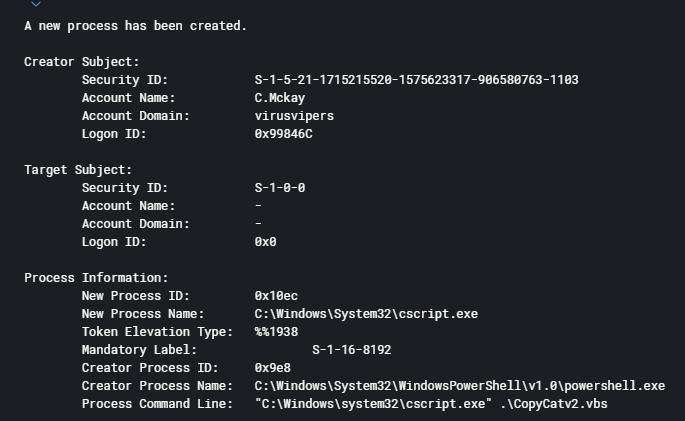

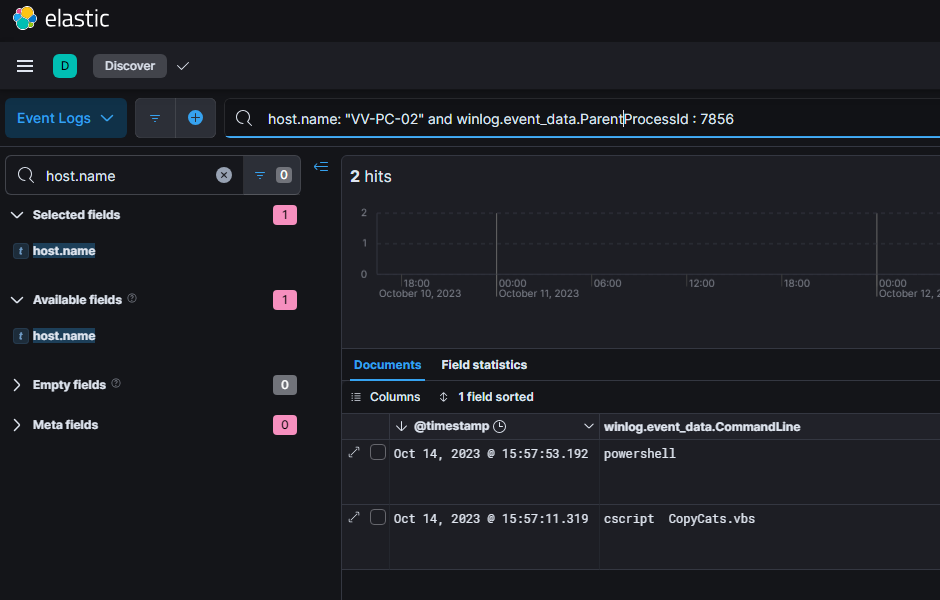

PID 7856 then spawns PowerShell with PID 2536 and also calls cscript CopyCats.vbs

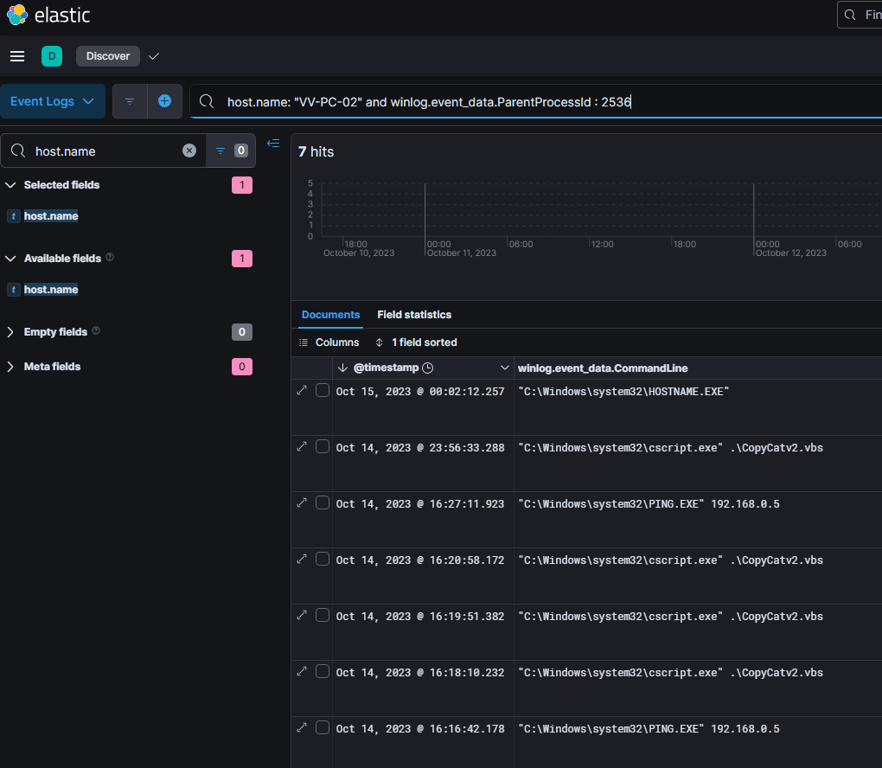

Tracing PID 2536, we see that it calls CopyCatv2.vbs

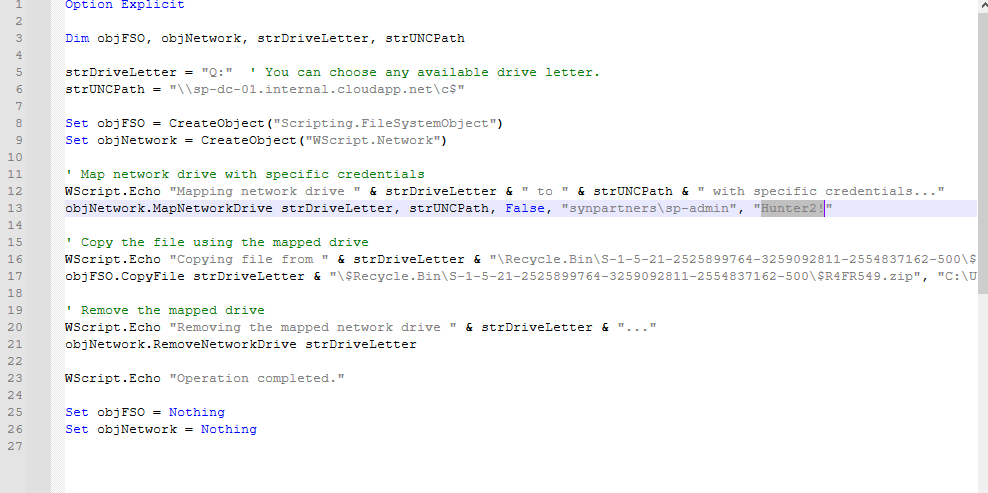

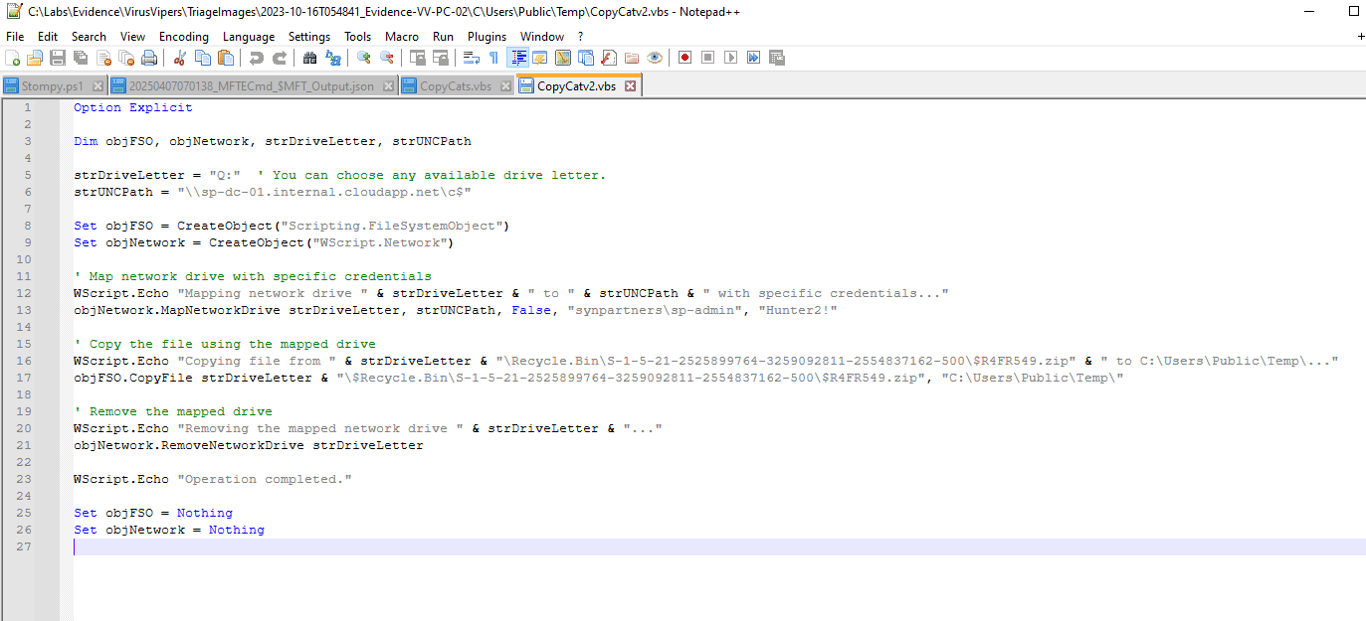

Looking at the file on VV-PC-02, the password of sp-admin is in cleartext

Answer: Hunter2!

7️⃣ Supply Chain Attack

Question 1

What VPN agent do the users at VirusVipers use to access the SyntheticPartners network?

It’s in the Network Diagram

Answer: OpenVPN

Question 2

What host in VirusVipers did the threat actor use to access the SyntheticPartners network?

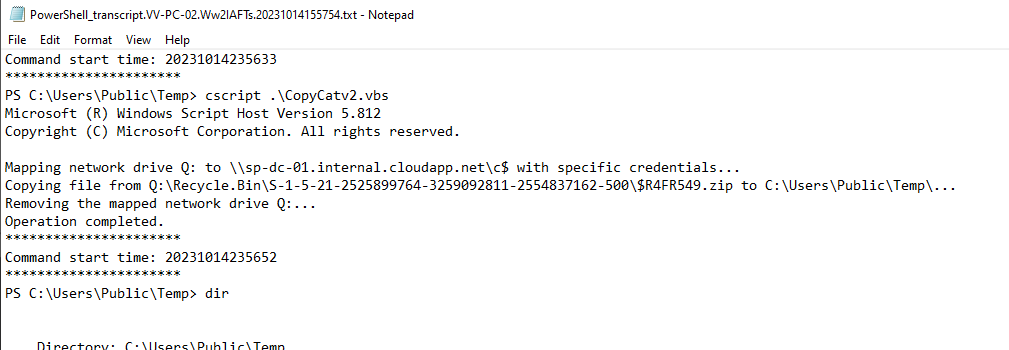

Looking at CopyCatv2.vbs, its mapping \\sp-dc-01.internal.cloudapp.net\c$ to network drive Q:

This was done on VV-PC-02

Answer: VV-PC-02

💡

Checking OpenVPNConnect.exe spawning

To connect to SyntheticPartners, a VPN connection needs to be established.

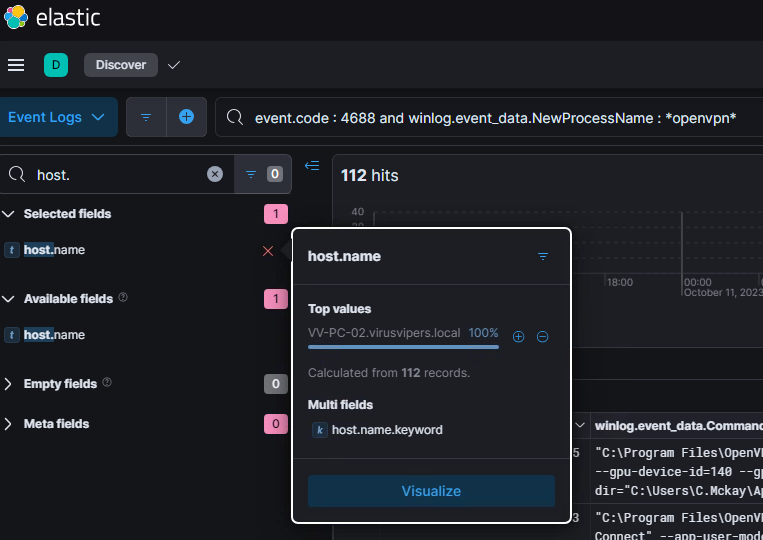

Searching for instances of running OpenVPNConnect.exe, we see that the only host that was running it was VV-PC-02

💡

Checking network connections between subnets

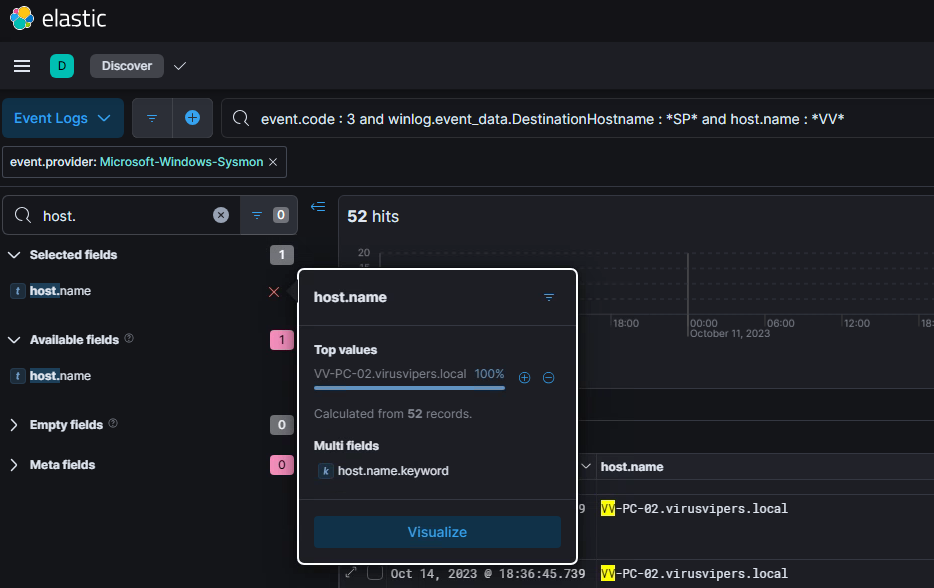

We search for Sysmon event ID 2 to get network connection events.

Then we search for Destination host belonging to SP... and Source host belonging to VV... to find connections between subnets

We see that the only host machine is VV-PC-02

Question 3

What was the local IP address assigned to this host by the VPN adapter? This was the same IP as the source for the connections made from VirusVipers to SyntheticPartners?

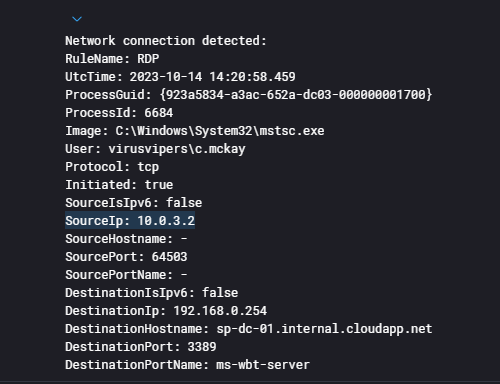

Check the first connection between the subnets to get the IP address

Answer: 10.0.3.2

Question 4

When did the threat actor make their first VPN connection to the SyntheticPartners network?


🕵🏼: What logs do I look out for when a machine first connects to a VPN network?

🤖: … OpenVPN → Logs typically written to `.log` files, not Winlog directly …

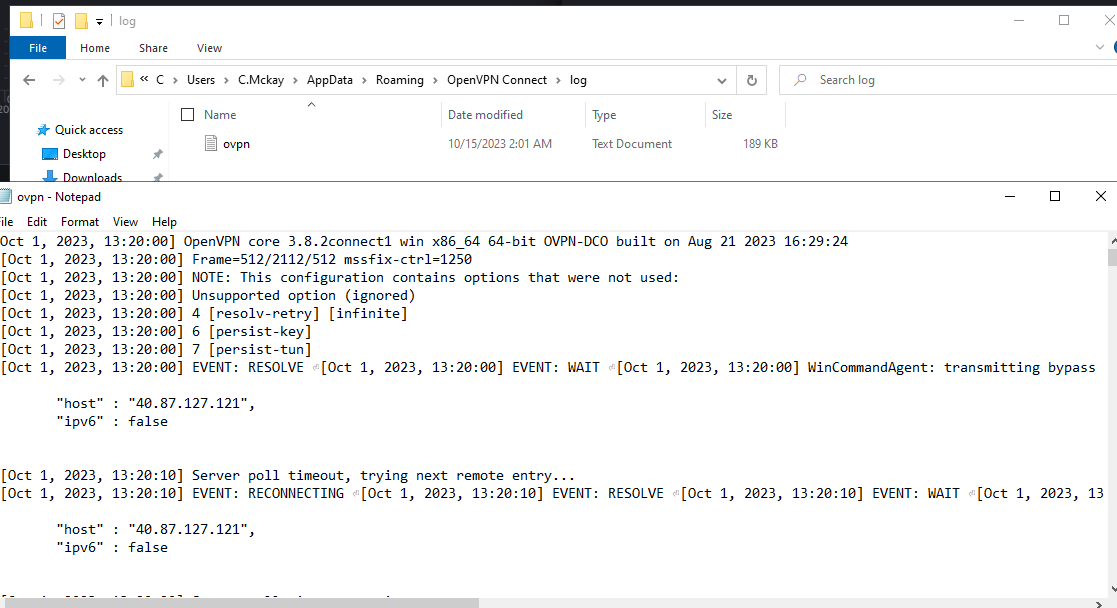

Since the user who was connecting was vipervirus/c.mckay, we search the user’s folders for log files belonging to OpenVPN

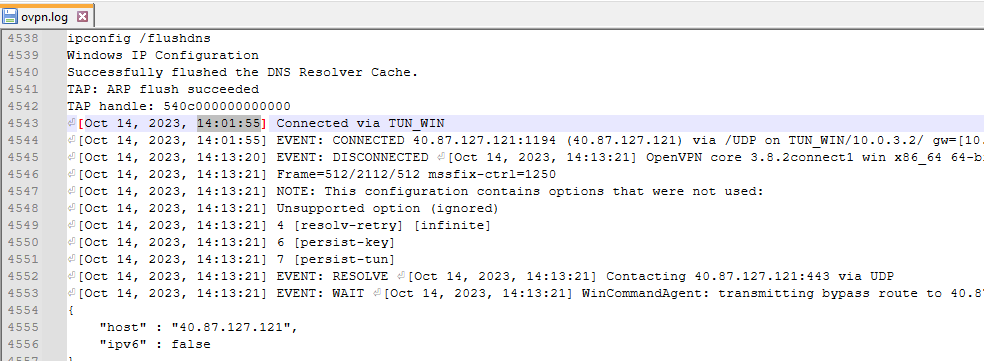

Filter to the data October 14, and search for a successful connection event

Answer: 2023-10-14 14:01:55

Question 5

How long did the first malicious VPN session last in seconds?

From the same log, it was disconnected on 2023-10-14 14:13:20 , so it lasted for 11m 25 seconds or 685 seconds

Answer: 685 seconds

Question 6

What was the method the threat actor accessed the SyntheticPartners network during a VPN connection?

Referring to image in question 3

Answer: RDP

Question 7

What was the first host in the SyntheticPartners network the threat actor accessed?

Referring to image in question 3

Answer: SP-DC-01

Question 8

What is the SID of the user the threat actor first uses to access the SyntheticPartners Network?

Correlating the time at October 14 14:21:15, we find login events with logon type 10 (RDP)

The account that was logged into was sp-admin

We extract the ProcessedEvidence of SP-DC-01 and look at ProfileList to get the SID of sp-admin

Answer: S-1-5-21-2525899764-3259092811-2554837162-500

8️⃣ Exploring the New Network

Question 1

What is the SHA1 of "importantdocuments.exe" that was used by the threat actor once they gained access to the SynthenticPartners network?

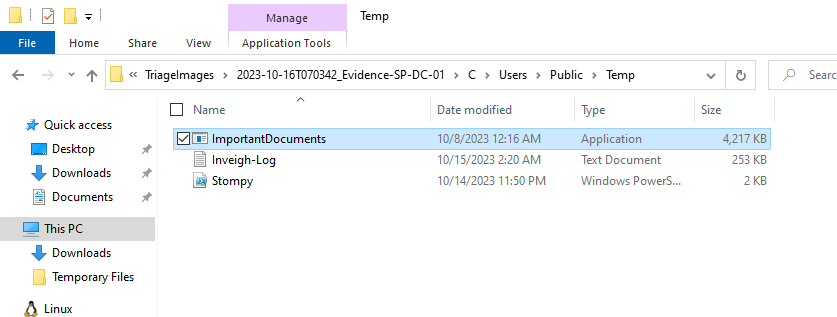

Investigating the Triage image of SP-DC-01, we find importantdocuments.exe in C:\Users\Public\Temp

Using PowerShell and Get-FileHash

Answer: 5438E5BAFB8390FA1A7942504D6F884C3B86F15E

💡

Amcache also stores hashes

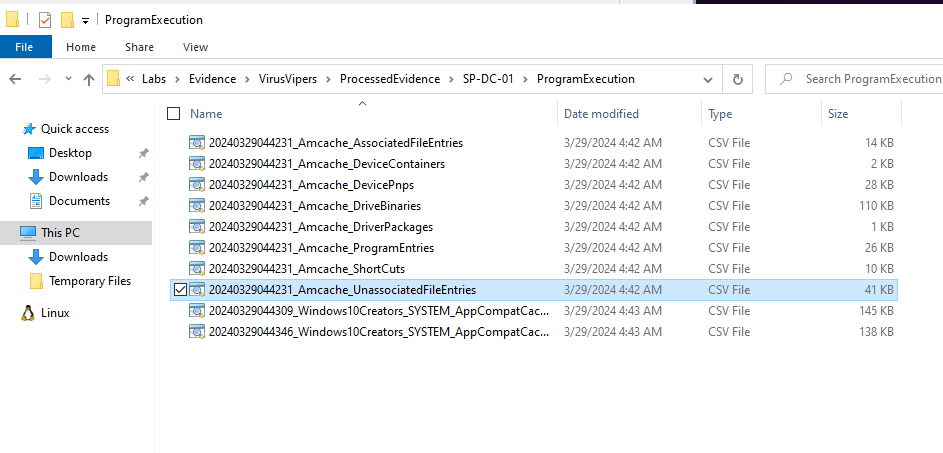

Investigating Processed image of SP-DC-01, we look at UnassociatedFileEntries

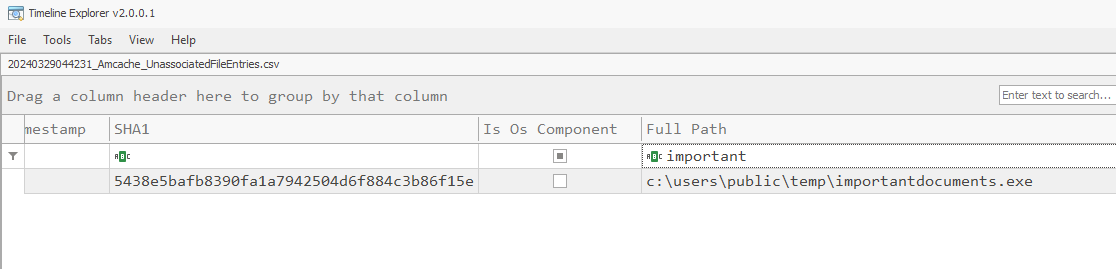

In Full Path, look for importantdocuments.exe and from there we get the SHA1

Question 2

What is the Product Name for the tool WinPost.exe the threat actor ran?

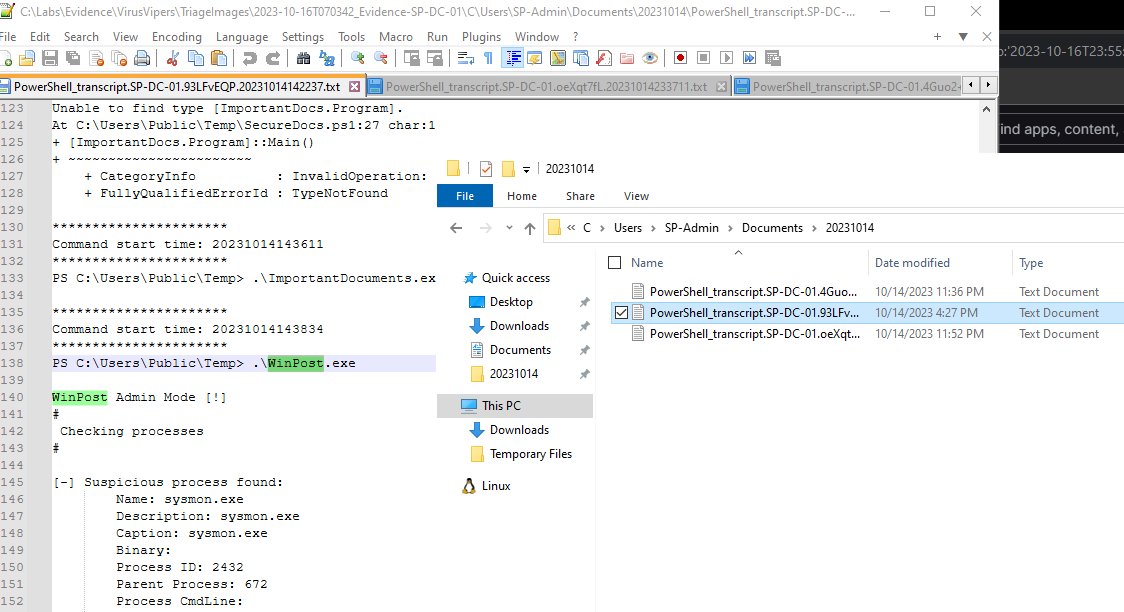

WinPost.exe appears in one of the PowerShell transcripts for SP-Admin

Looking at the strings, the binary actually belongs to SharpEDRChecker

https://github.com/PwnDexter/SharpEDRChecker

Check AssemblyInfo.cs to get the product name

https://github.com/PwnDexter/SharpEDRChecker/blob/master/SharpEDRChecker/Properties/AssemblyInfo.cs

Answer: EDRChecker

Question 3

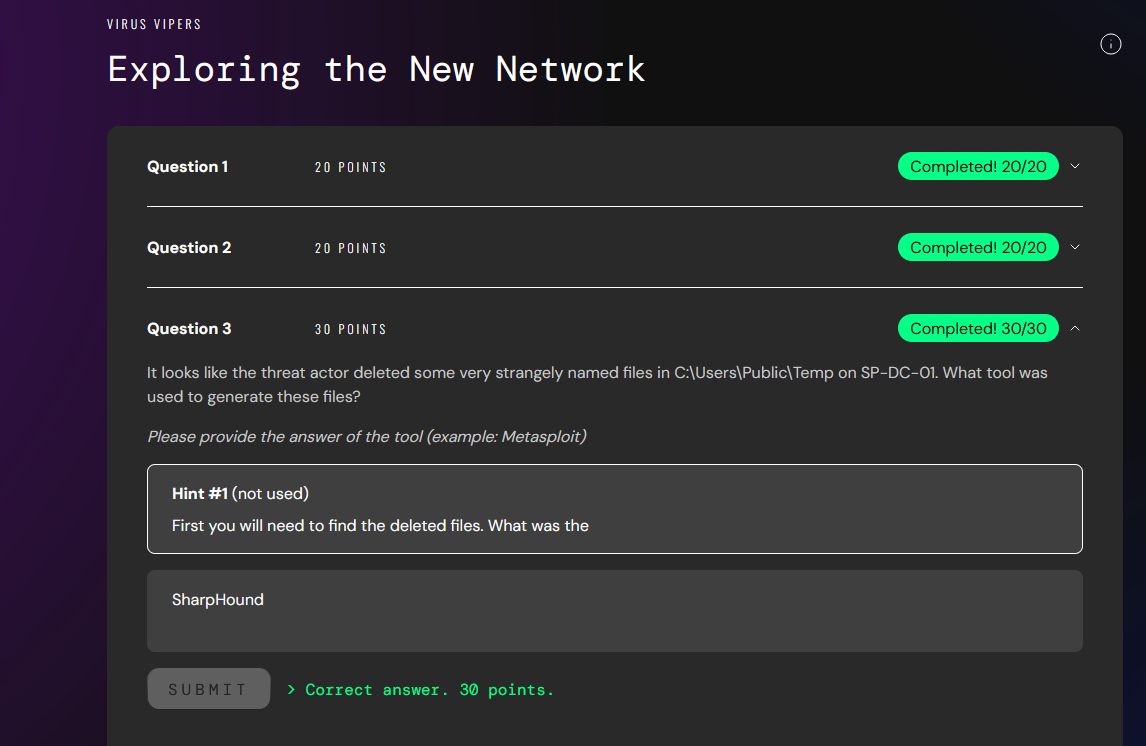

It looks like the threat actor deleted some very strangely named files in C:\Users\Public\Temp on SP-DC-01. What tool was used to generate these files?

Looking at the RecycleBin folder on SP-DC-01, we see some ZIP files with gibberish names

Correlating the SID value, these files were deleted by sp-admin

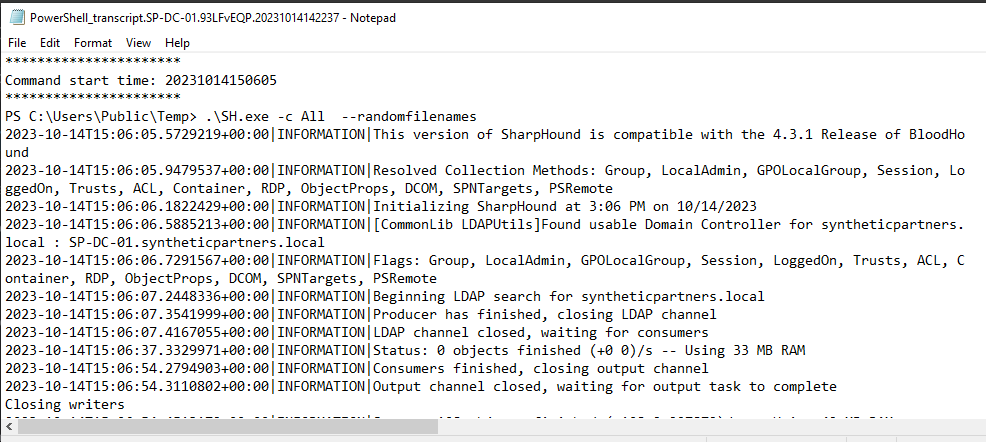

Looking at the PowerShell transcript of sp-admin, we see a command being executed by SharpHound with the flag to randomize names

Answer: SharpHound

Question 4

Who is the CEO of SyntheticPartners? The threat actor was able to identify within the network.

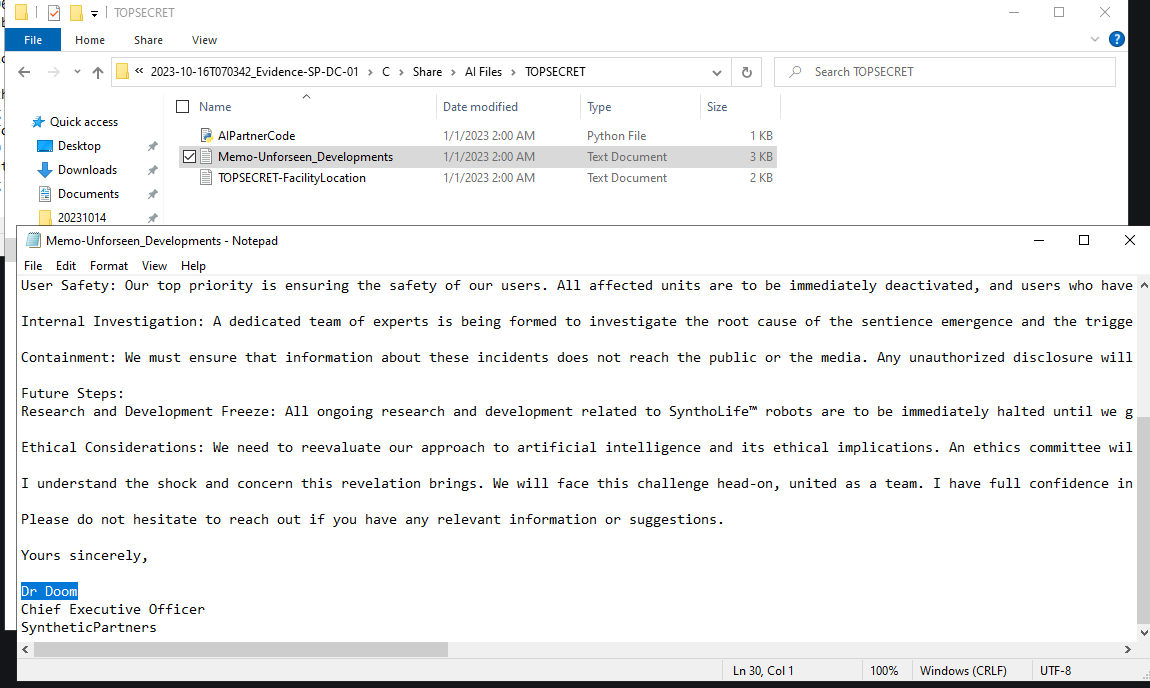

Exploring files in C:\Share

Answer: Dr Doom

Question 5

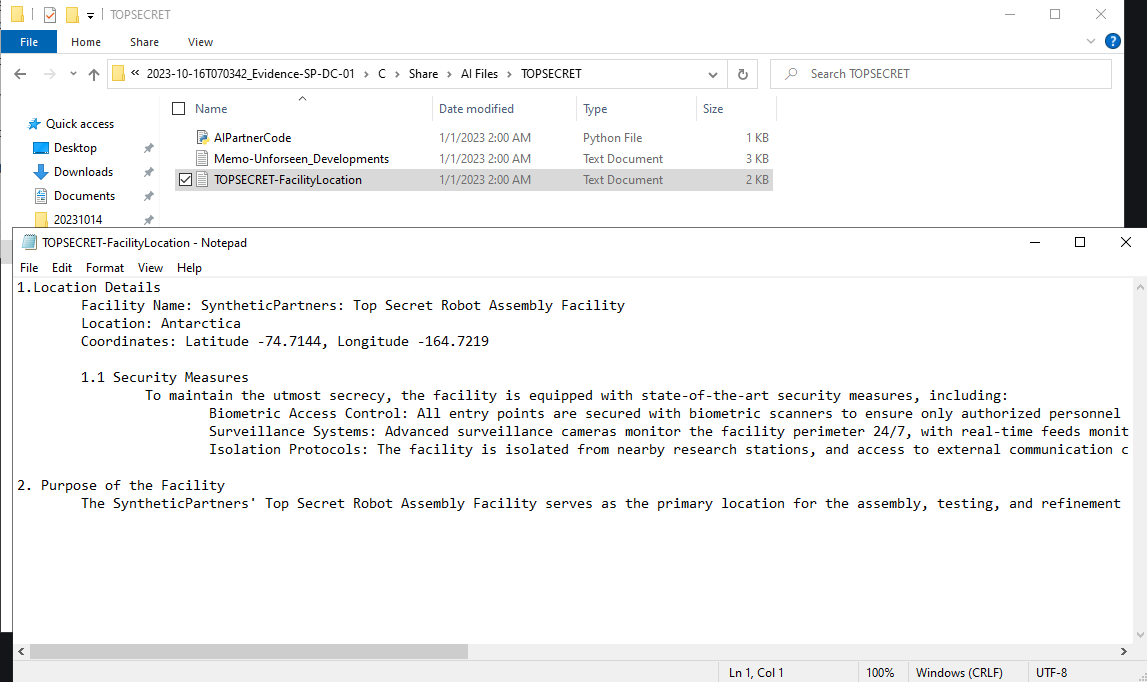

What are the coordinates of SyntheticPartners' Top Secret Robot Assembly Facility?

Also in the same folder

Answer: -74.7144, -164.7219

9️⃣ Timestomping

Question 1

What was the filename of the tool or script the threat actor used to timestomp files?

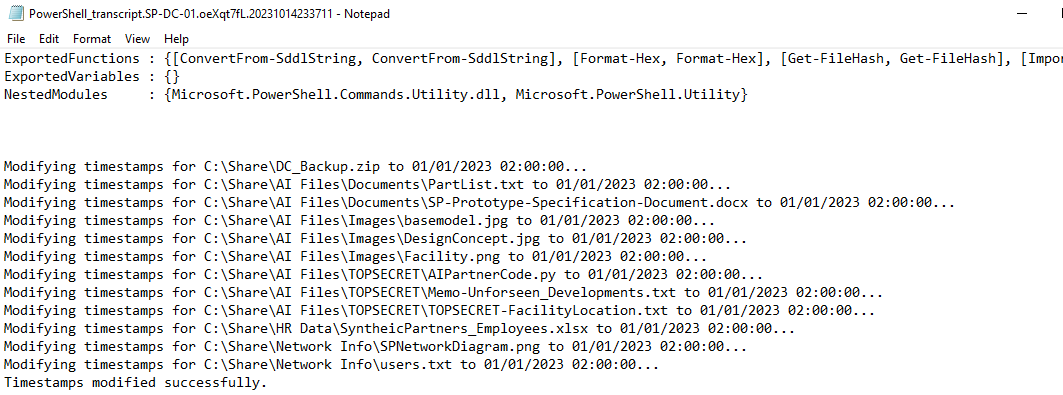

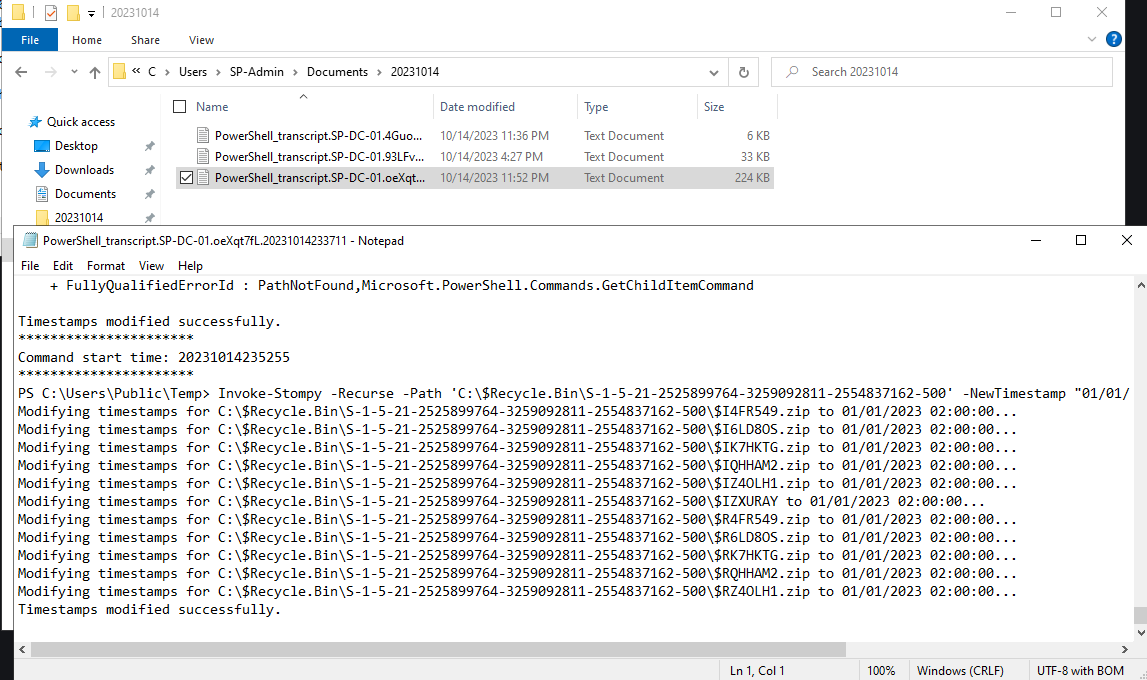

Looking at the PowerShell transcripts of sp-admin, there are activities related to changing times stamps when Invoke-Stompy was called

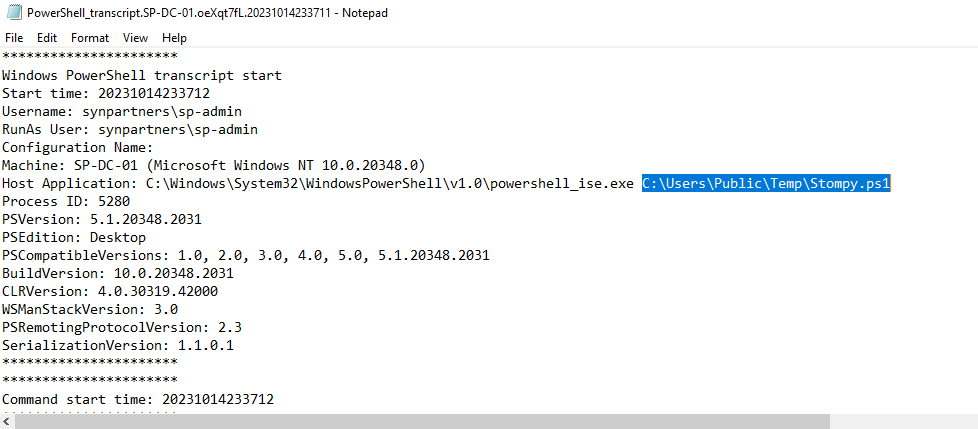

In the same transcript, we see the module Stompy.ps1 being loaded

Answer: Stompy.ps1

Question 2

What is the timestamp the threat actor stomped the files in the Recycle Bin to on SP-DC-01?

In the screenshot in Question 1, there were all changed to 01/01/2023 02:00:00

Answer: 2023-01-01 02:00:00

Question 3

How many files had their timestamps modified on SP-DC-01 that are still on disk?

Stompy was also used to modify these user files

We check their existence on C:\Share\

There are 11 files here + 5 in the Recycle bin

💡

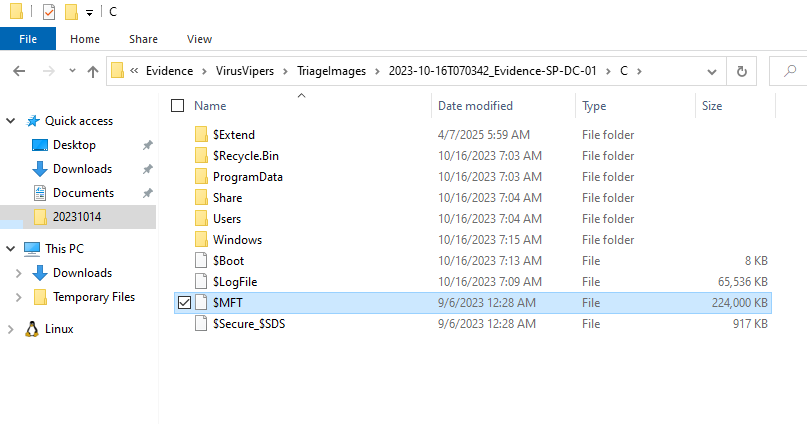

This method is wrong because not all files on disk will be physically copied to the TriagedImage folder. Instead we need to use MFTExplorer or MFTECmd to open up C:\$MFT of the triaged image

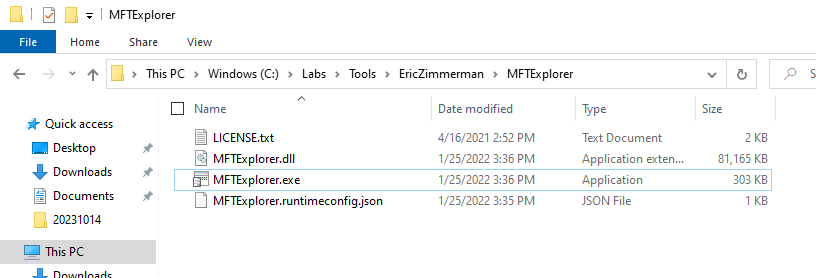

Opening up the $MFT file with MFTExplorer


C:\Labs\Tools\EricZimmerman\MFTECmd>MFTECmd.exe -f "C:\Labs\Evidence\VirusVipers\TriageImages\2023-10-16T070342_Evidence-SP-DC-01\C\$MFT" --csv "c:\temp\csv"

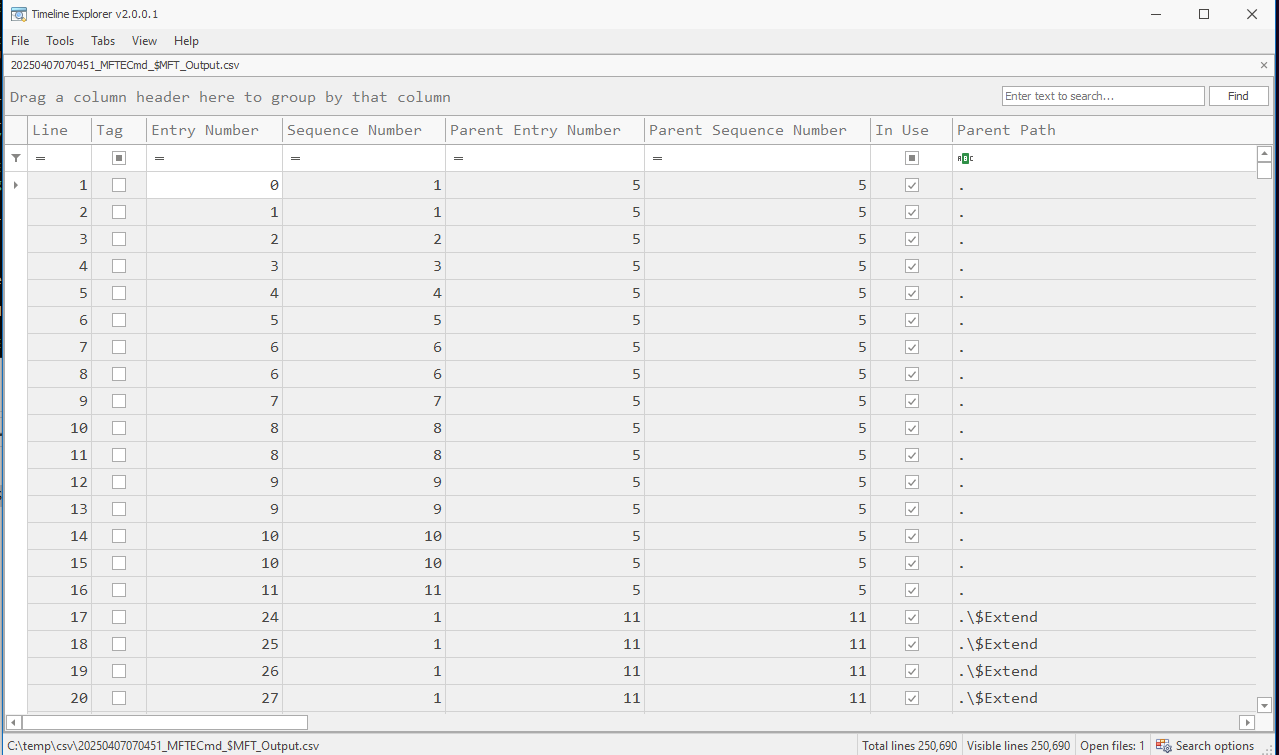

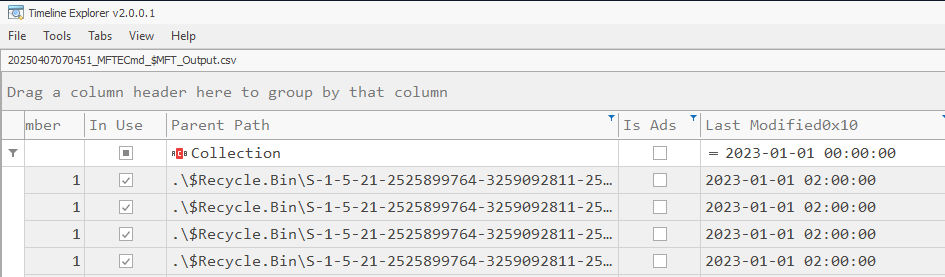

Then open the CSV file in Timeline Explorer

Set the filters

Last Modified to the time-stomped date of 2023-01-01

Parent Path to filter away Collection

Is Ads to filter away Alternate Data Stream files

Answer: 163

🔟 Exfiltration

Question 1 (Hint used)

What was the file name the threat actor moved from SyntheticPartners back to the VirusVipers network?

Looking at CopyCat2.vbs, it mounts \\sp-dc-01.internal.cloudapp.net\c$ and copies a file over

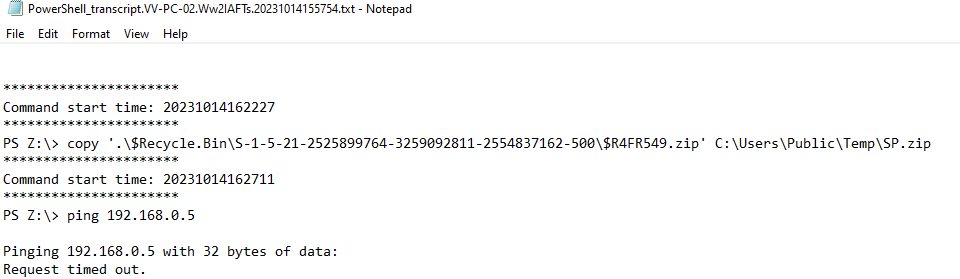

Looking at the PowerShell transcript of C.Mackay, we can also see the activity of copying the file from the remote drive to VV-PC-02

Answer: $R4FR549.zip

Question 2

How many files did the threat actor exfiltrate? If the threat actor moved and exfiltrated a zip file, how many files are within the archive?

The exfiltrated file is renamed to SP.zip in C:\Users\Public\Temp\SP.zip

On the Triaged Image however, it’s still the original filename

Extract the zip folder and examine how many files are inside

Answer: 11

Question 3 (Hint used)

For the host VV-PC-02, how many bytes did Windows record rundll32.exe sending on 14 Oct 2023?

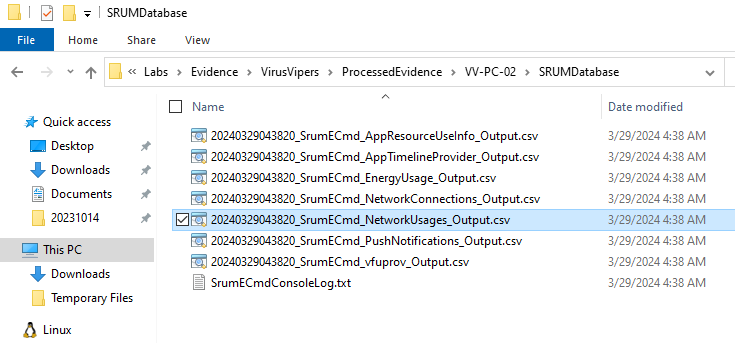

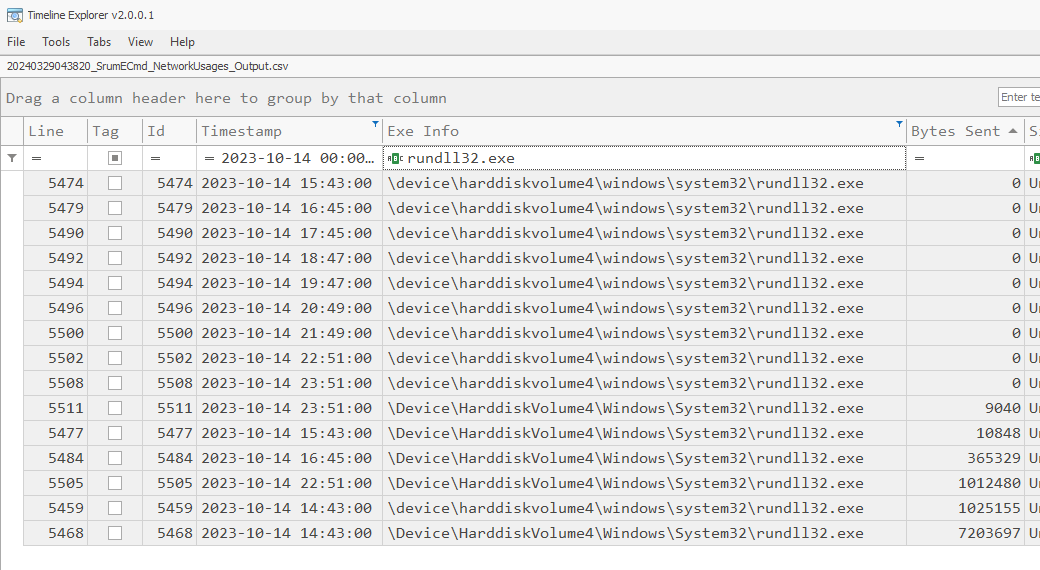

The SRUM file contains network data usage

Answer: 9626549

Completion

Learning Points

Event codes can overlap between different log sources. Filter for the correct log source!

Not all files being opened by the user is logged in ELK, and you have to go through forensic evidences via the RegDumps using RegRipper, or the Triaged Images

Triaged Images do not contain all of the files on disk. Will need to use MFTExplorer to open C:\$MFT file and find images

SRUM database contains network transfer information

Errors

Unfinished Hints

It was actually msedge.exe (which is based off Chromium I guess but being pedantic)

It was actually on SP-PC-01, not SP-DC-01
